Driver or Passenger Seat Back Cushion Heater Replacement (Fold Flat)

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

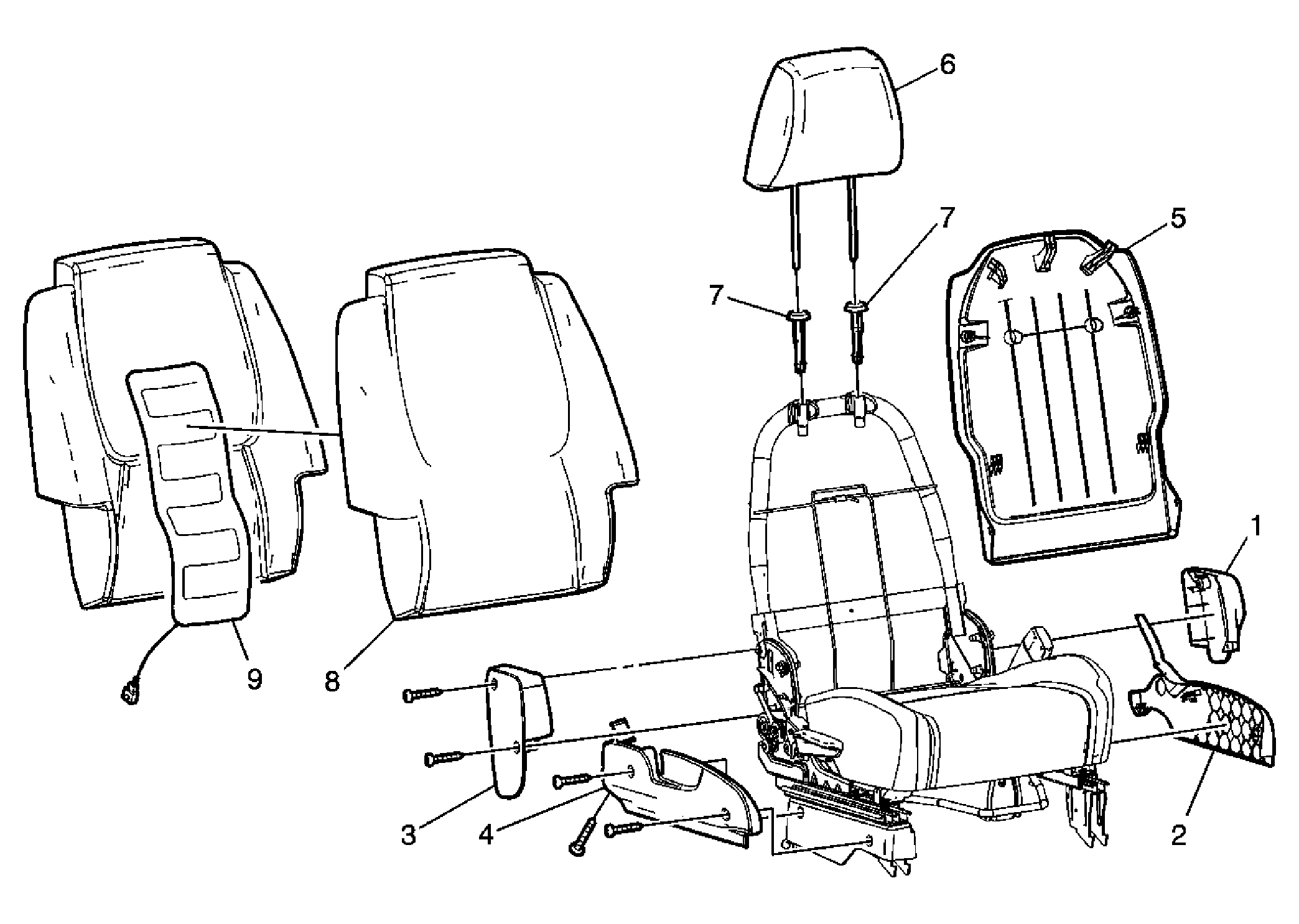

Fig 1: Identifying Seat Back Heater Element - Front (Fold Flat)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure: Remove the front seat. Refer to Front Seat Replacement - Bucket .
1	Front Seat Outer Recliner Finish Cover Refer to Front Seat Back Recliner Outer Trim Panel Replacement (Fold Flat) .
2	Front Seat Outer Adjuster Finish Cover Refer to Front Seat Cushion Outer Trim Panel Replacement (Non-Fold Flat) or Front Seat Cushion Outer Trim Panel Replacement (Fold Flat) .
3	Front Seat Inner Recliner Finish Cover Refer to Front Seat Back Recliner Inner Trim Panel Replacement (Fold Flat) .
4	Front Seat Inner Adjuster Finish Panel Refer to Front Seat Cushion Inner Trim Panel Replacement (Non-Fold Flat) .
5	Front Seat Back Finish Panel Refer to Driver or Passenger Seat Back Cushion Finish Panel Replacement (Fold Flat) .
6	Front Seat Head Restraint Refer to Driver or Passenger Seat Head Restraint Replacement .
7	Front Seat Head Restraint Guides Tip: Squeeze the bottom of the guides together and push upward to remove.
8	Front Seat Back Cushion Cover Refer to Driver or Passenger Seat Back Cushion Cover and Pad Replacement (Fold Flat) or Driver or Passenger Seat Back Cushion Cover and Pad Replacement (Non-Fold Flat) .
9	Front Seat Back Heater Element Tip: Disconnect the electrical connector and gently pull on the heater element to remove the element from the seat foam. Be careful not to damage the foam pad.
