Driver or Passenger Seat Back Cushion Cover and Pad Replacement (Non-Fold Flat)

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

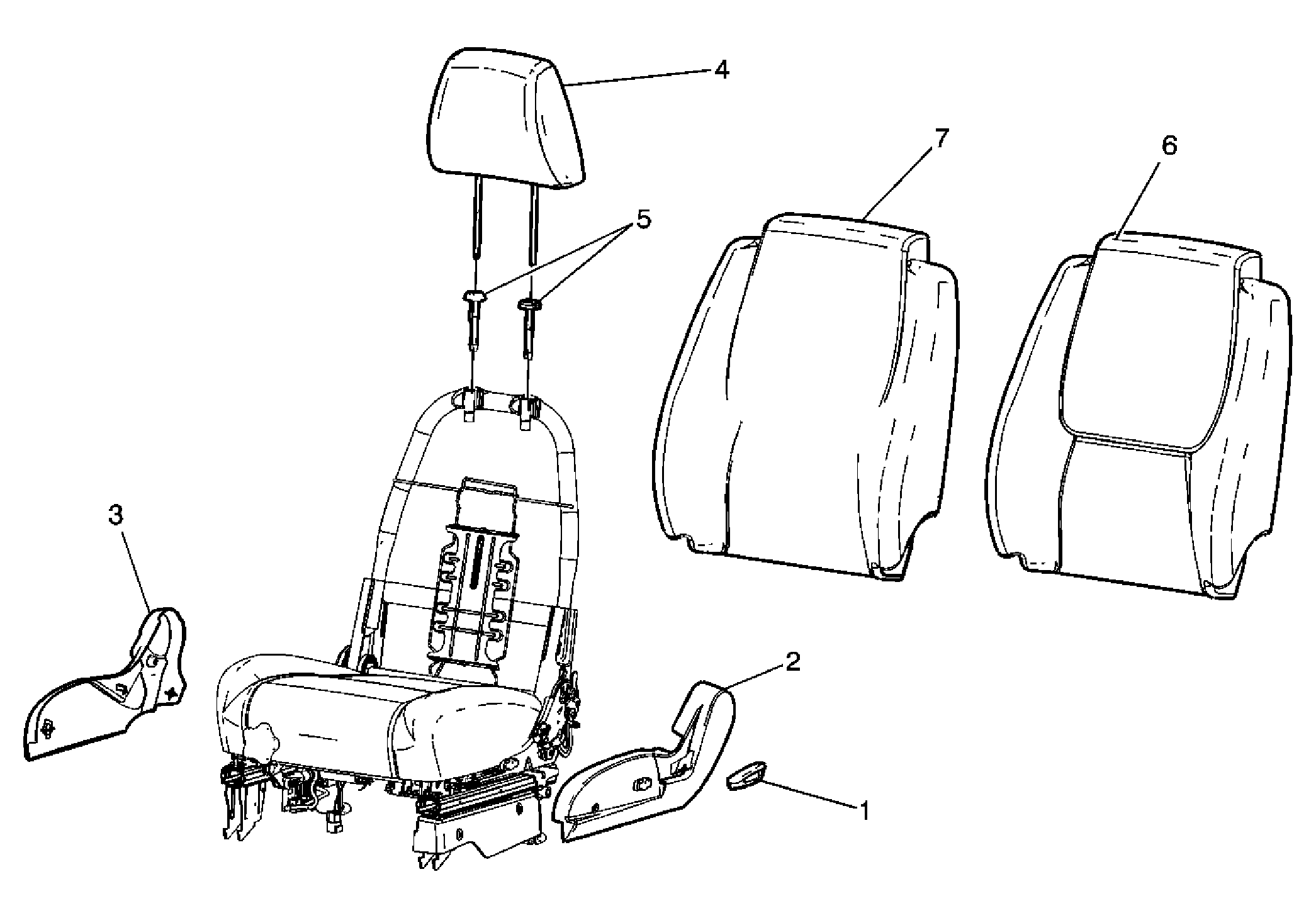

Fig 1: View Of Front Seat Back Cover & Cushion Pad (Non-Fold Flat)
GM1711377Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
Preliminary Procedure:
Remove the front seat. Refer to Front Seat Replacement - Bucket .
1 Front Seat Recliner Handle
Tip:  Pull firmly forward on the handle to remove.
2 Front Seat Outer Adjuster Finish Cover
Refer to Front Seat Cushion Outer Trim Panel Replacement (Non-Fold Flat)  or Front Seat Cushion Outer Trim Panel Replacement (Fold Flat) .
3 Front Seat Inner Adjuster Finish Panel
Refer to Front Seat Cushion Inner Trim Panel Replacement (Non-Fold Flat) .
4 Front Seat Head Restraint
Refer to Driver or Passenger Seat Head Restraint Replacement .
5 Front Seat Head Restraint Guides
Tip:
  1. Disconnect the lower J-hook retainer from the seat back trim cover.
  2. Carefully pull up the trim cover, disengaging the hoop and loop retainers, until the headrest guides are exposed.
  3. Squeeze the locking tabs on the headrest guide and pull the guides up and out of the seat back pad.
6 Front Seat Back Cushion Cover
7 Front Seat Back Cushion Pad
