Front Seat Back Recliner Inner Trim Panel Replacement (Fold Flat)

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

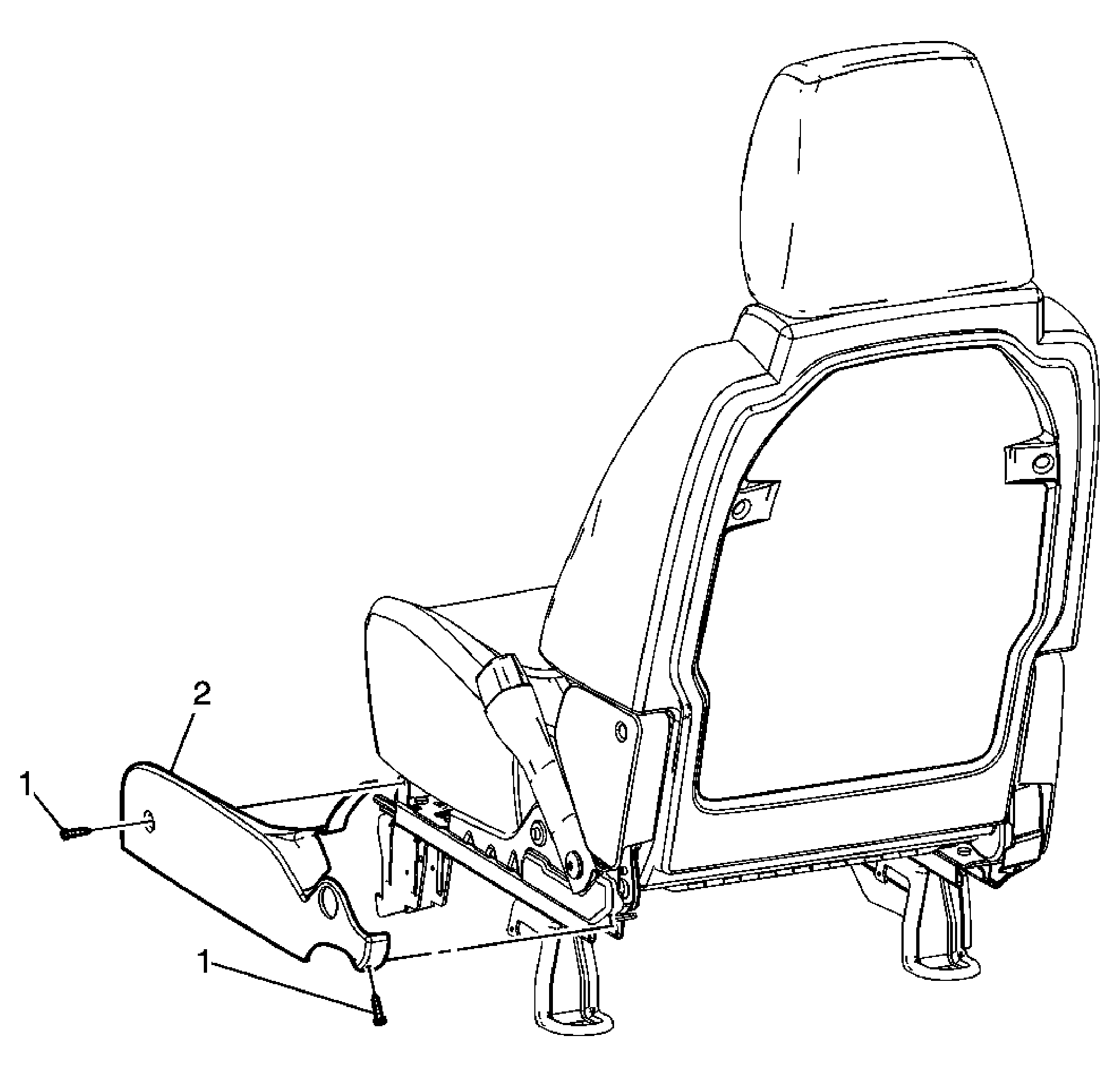

Fig 1: View Of Front Seat Back Recliner Inner Trim Panel - (Fold Flat)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Front Seat Inner Adjuster Finish Panel Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 2 N.m (18 lb in)
2	Front Seat Inner Adjuster Finish Panel
