Rear Side Door Window Regulator Replacement

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

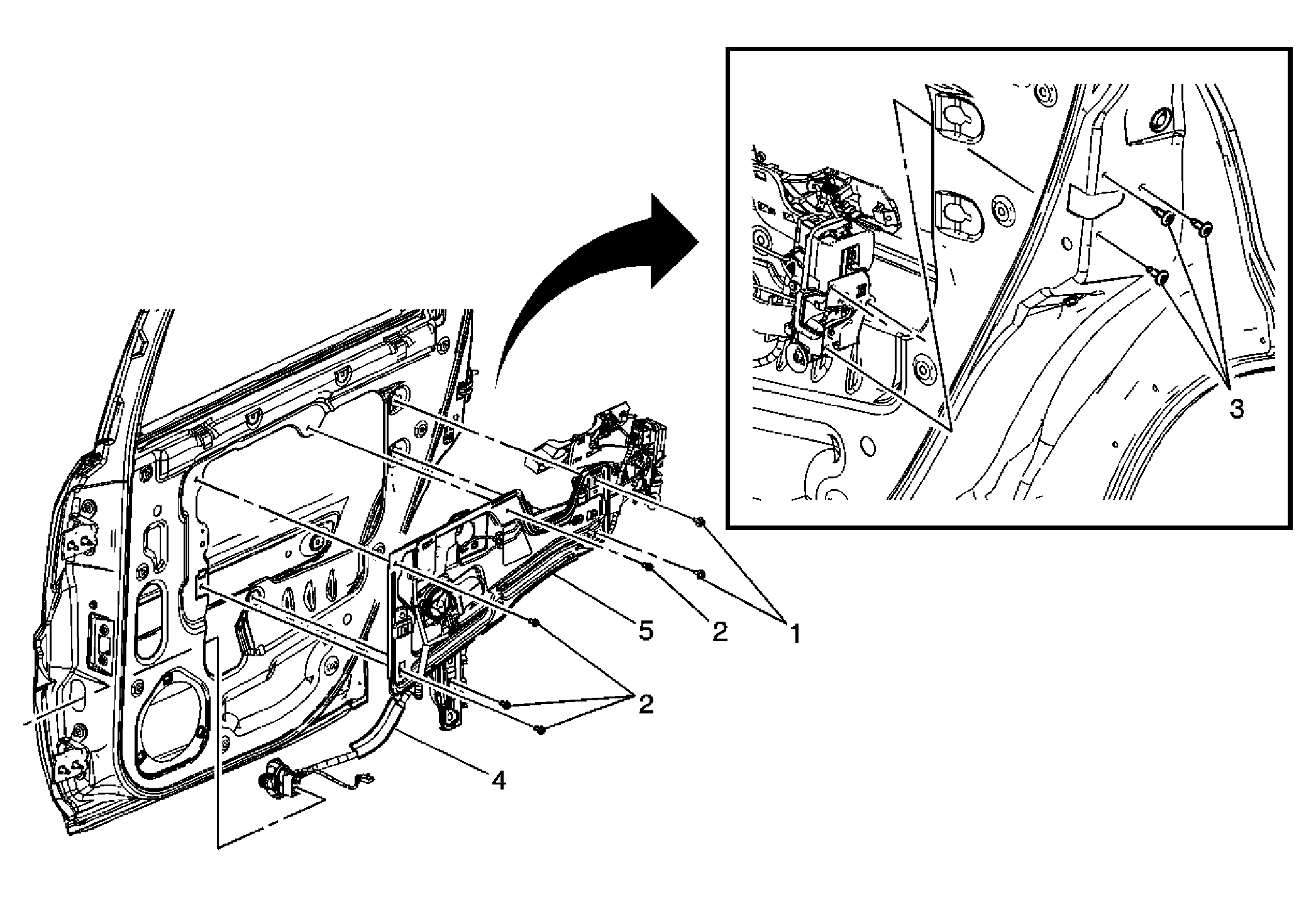

Fig 1: View Of Rear Side Door Window Regulator

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove rear door outside handle. Refer to Rear Side Door Outside Handle Replacement . Remove rear door window run channel assembly. Refer to Rear Side Door Window Channel Replacement . Remove rear door lower speaker. Refer to Radio Rear Side Door Speaker Replacement . Disconnect outside rearview mirror electrical connector.
1	Rear Side Door Locking System Module Rear Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 8 N.m (71 lb in)
2	Rear Side Door Locking System Module Bolt (Qty: 2) Tighten: 8 N.m (71 lb in)
3	Rear Side Door Latch Bolt (Qty: 3) Tighten: 10 N.m (89 lb in)
4	Rear Side Door Wiring Harness Assembly
5	Rear Side Door Locking System Module Assembly
