Radio Rear Side Door Speaker Replacement
WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

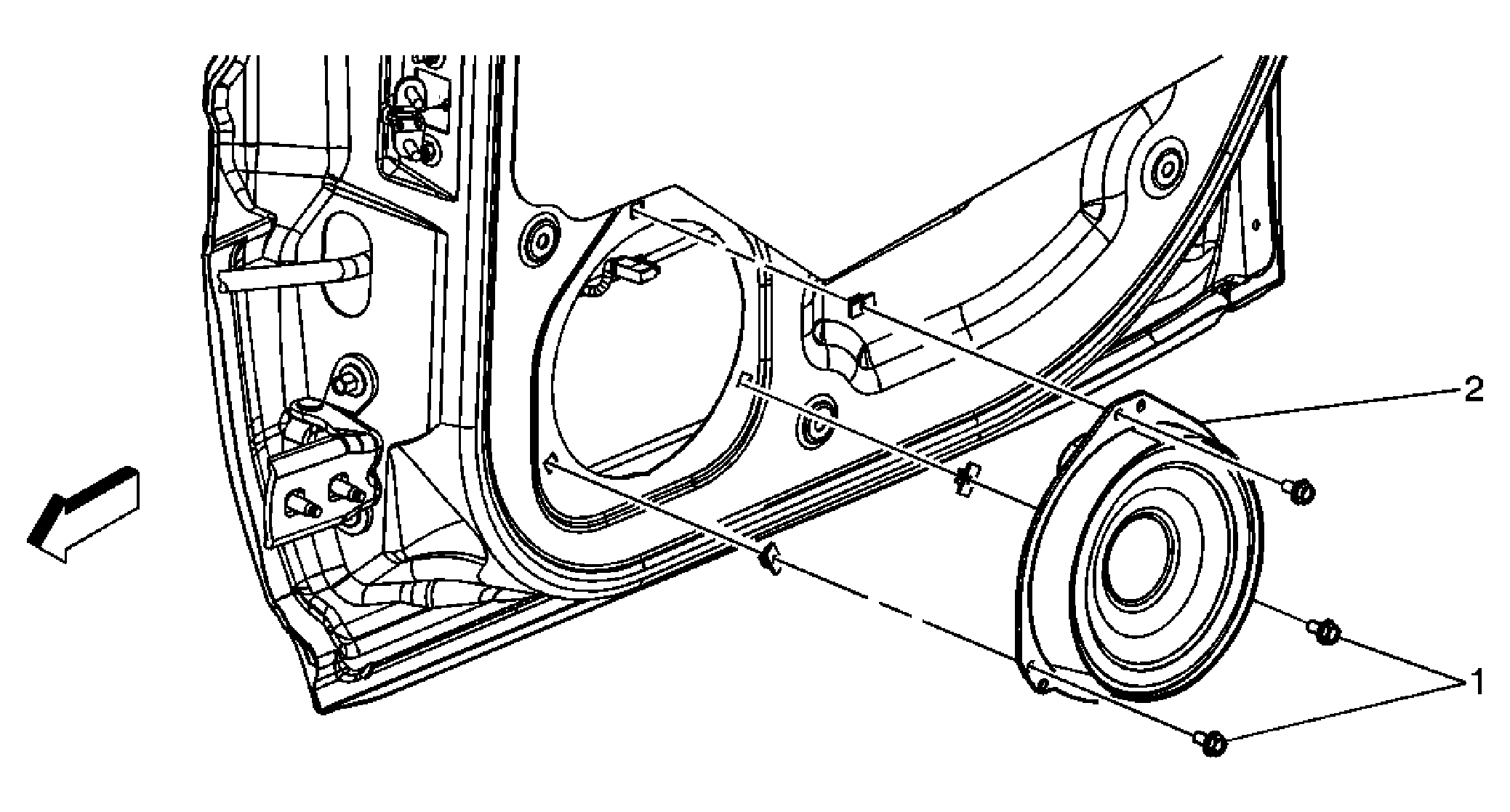

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the rear door inner trim panel. Refer to Rear Side Door Trim Panel Replacement . |
|
| 1 | Rear Door Speaker Screw (Qty: 3)
CAUTION:
Refer to Fastener Caution
.
Tighten: 2.5 N.m (22 lb in) |
| 2 | Rear Door Speaker Procedure: Disconnect the electrical connector. |
