Front Side Door Window Replacement
WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.

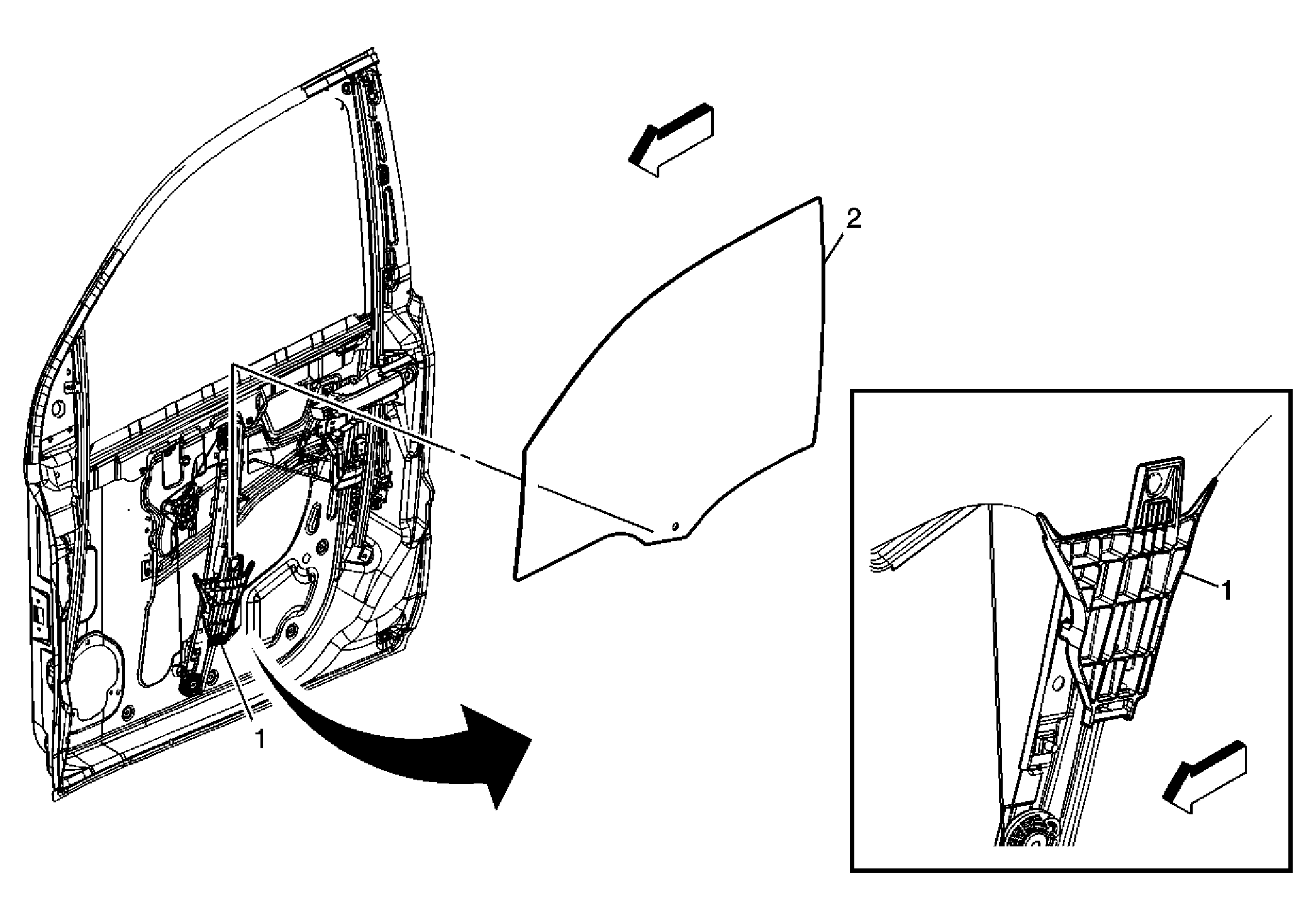

| Callout |
Component Name |
| Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications . Preliminary Procedure
- Remove front door trim panel. Refer to Front Side Door Trim Panel Replacement
.
- Remove front door water deflector. Refer to Front Side Door Water Deflector Replacement
.
- Remove inner belt seal. Refer to Front Side Door Window Belt Inner Sealing Strip Replacement .
- Lower window to access release tab.
|
| 1 |
Front Side Door Window Module Assembly
Tip:
Depress release tab with a flat-bladed tool. |
| 2 |
Front Side Door Window
Tip:
- Pull window out of the regulator guide plate.
- Slide window down and out of primary run channels.
- Remove window by tilting outboard and pulling window out of door.
- When re-installing, slide window into door through outside.
- Install window into primary run channels and position into regulator guide plate.
- Operate window to inspect operation.
|
