Front Side Door Water Deflector Replacement

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

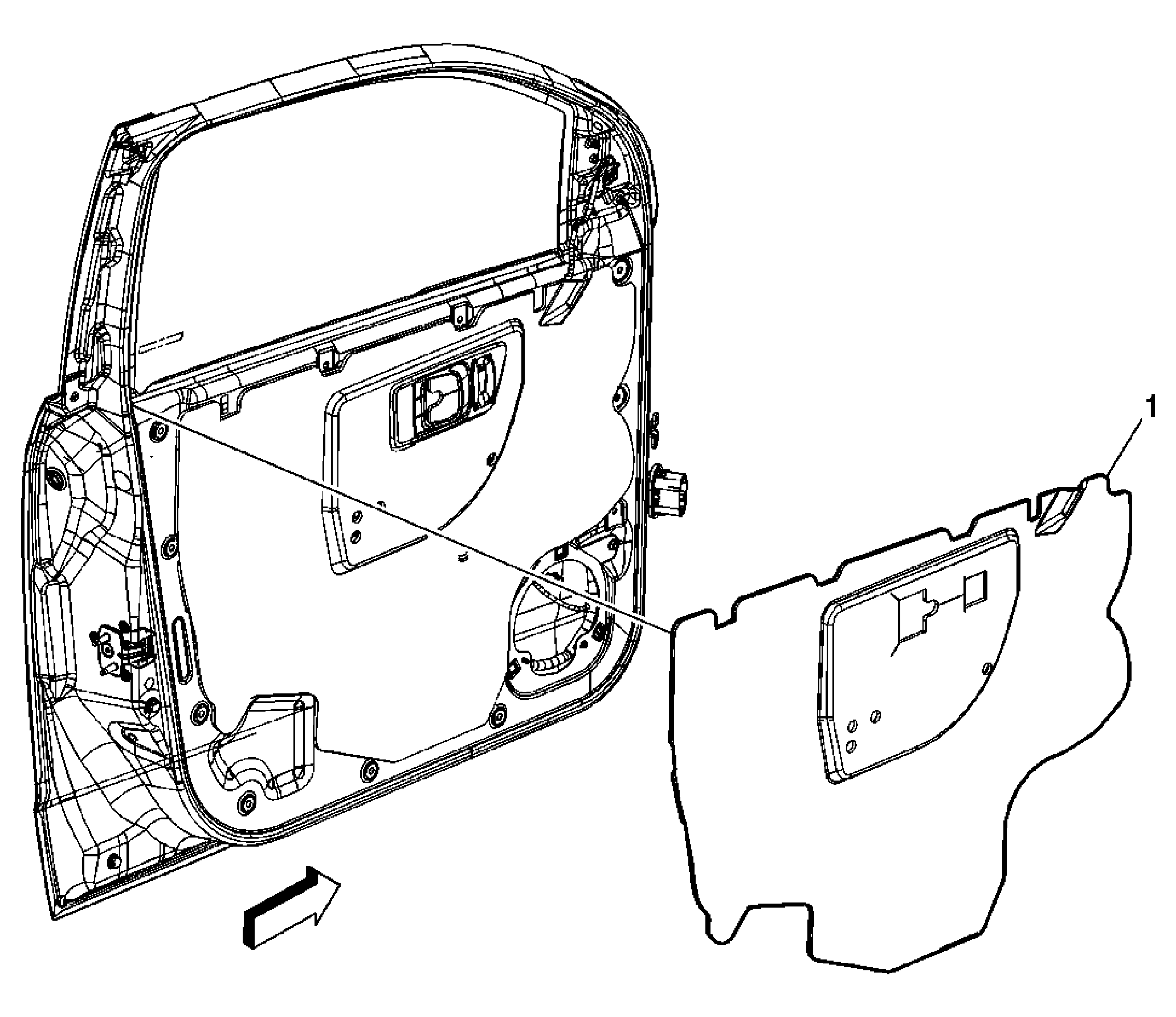

Fig 1: View Of Front Side Door Water Deflector

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove front door trim panel. Refer to Front Side Door Trim Panel Replacement .
1	Front Side Door Trim Panel Seal Assembly Tip: To remove door seal, start at top left corner and pull downward. When re-installing door seal, align locating tabs near top edge of both the seal and door structure. Stretch door seal tight across top edge and set in place. Wet-out adhesive around entire perimeter to ensure a proper seal.
