Front Side Door Window Regulator Motor Replacement

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

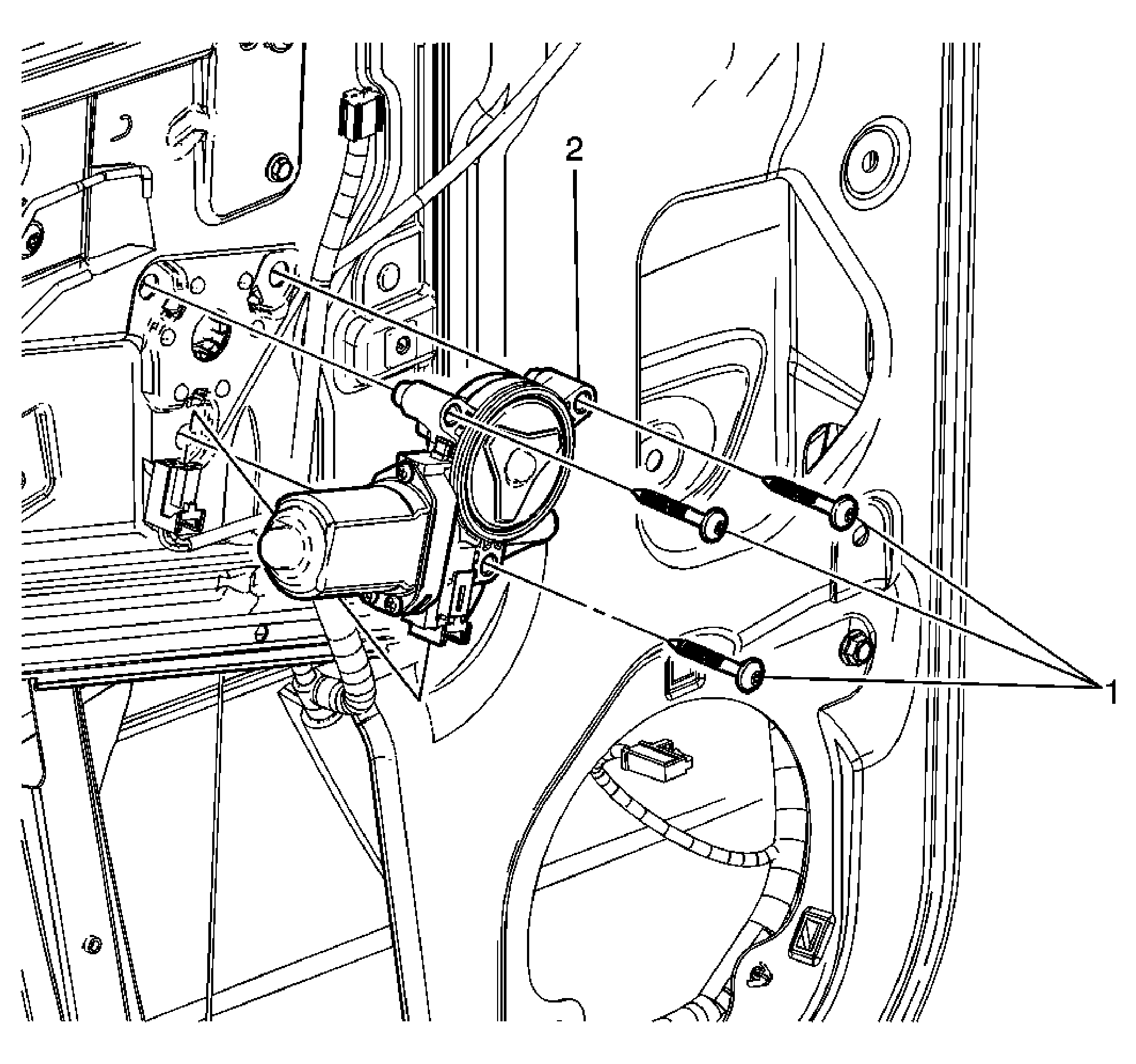

Fig 1: View Of Front Side Door Window Regulator Motor
GM1722357Courtesy of GENERAL MOTORS CORP.
Callout Component Name

Preliminary Procedure

  1. Remove front door trim panel. Refer to Front Side Door Trim Panel Replacement .
  2. Remove water deflector. Refer to Front Side Door Water Deflector Replacement .
1 Front Side Door Window Regulator Motor Screw (Qty: 2)
CAUTION: Refer to Fastener Caution .

Tighten:  8 N.m (71 lb in)
2 Front Side Door Window Regulator Motor Assembly
Procedure:
Disconnect the electrical connector.
