Front Side Door Window Channel Replacement

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

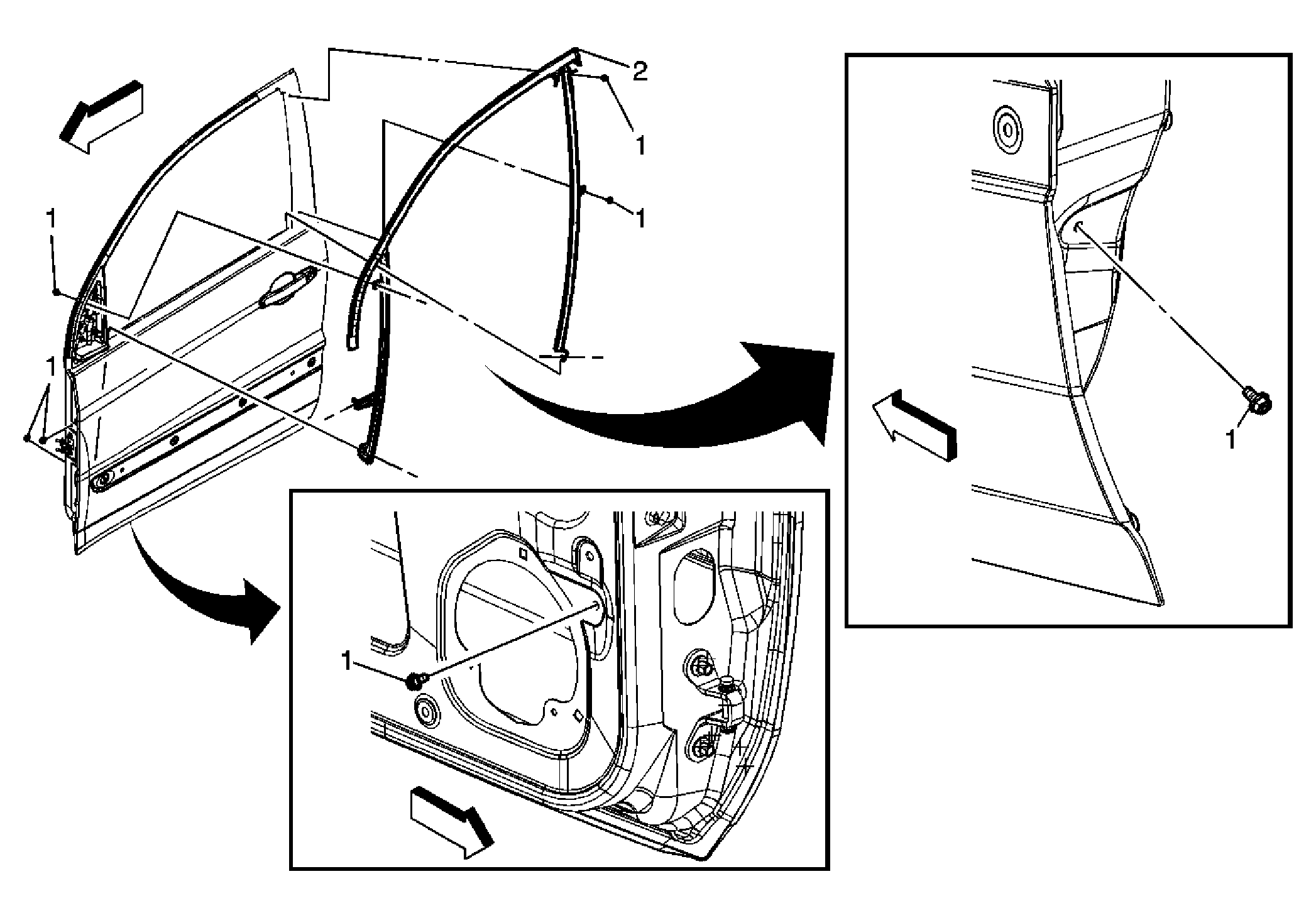

Fig 1: View Of Front Side Door Window Channel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the front door window. Refer to Front Side Door Window Replacement . Remove the front side door window inner sealing strip. Refer to Front Side Door Window Belt Inner Sealing Strip Replacement . Remove the outside rearview mirror. Refer to Inside Rearview Mirror Replacement . Remove the front door applique. Refer to Front Door Frame Applique Replacement .
1	Front Side Door Window Channel Bolt (Qty: 6) CAUTION: Refer to Fastener Caution . Tighten: 8 N.m (71 lb in)
2	Front Side Door Window Channel Assembly Procedure Starting from the rear corner of the door, remove the seal from the door header flange. When re-installing, start from the rear corner.

Callout

Component Name

Preliminary Procedures

Remove the front door window. Refer to Front Side Door Window Replacement .
Remove the front side door window inner sealing strip. Refer to Front Side Door Window Belt Inner Sealing Strip Replacement .
Remove the outside rearview mirror. Refer to Inside Rearview Mirror Replacement .
Remove the front door applique. Refer to Front Door Frame Applique Replacement .

Front Side Door Window Channel Bolt (Qty: 6)

CAUTION: Refer to Fastener Caution .

Tighten: 8 N.m (71 lb in)

Front Side Door Window Channel Assembly

Procedure

Starting from the rear corner of the door, remove the seal from the door header flange.
When re-installing, start from the rear corner.
