Front Door Frame Applique Replacement

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

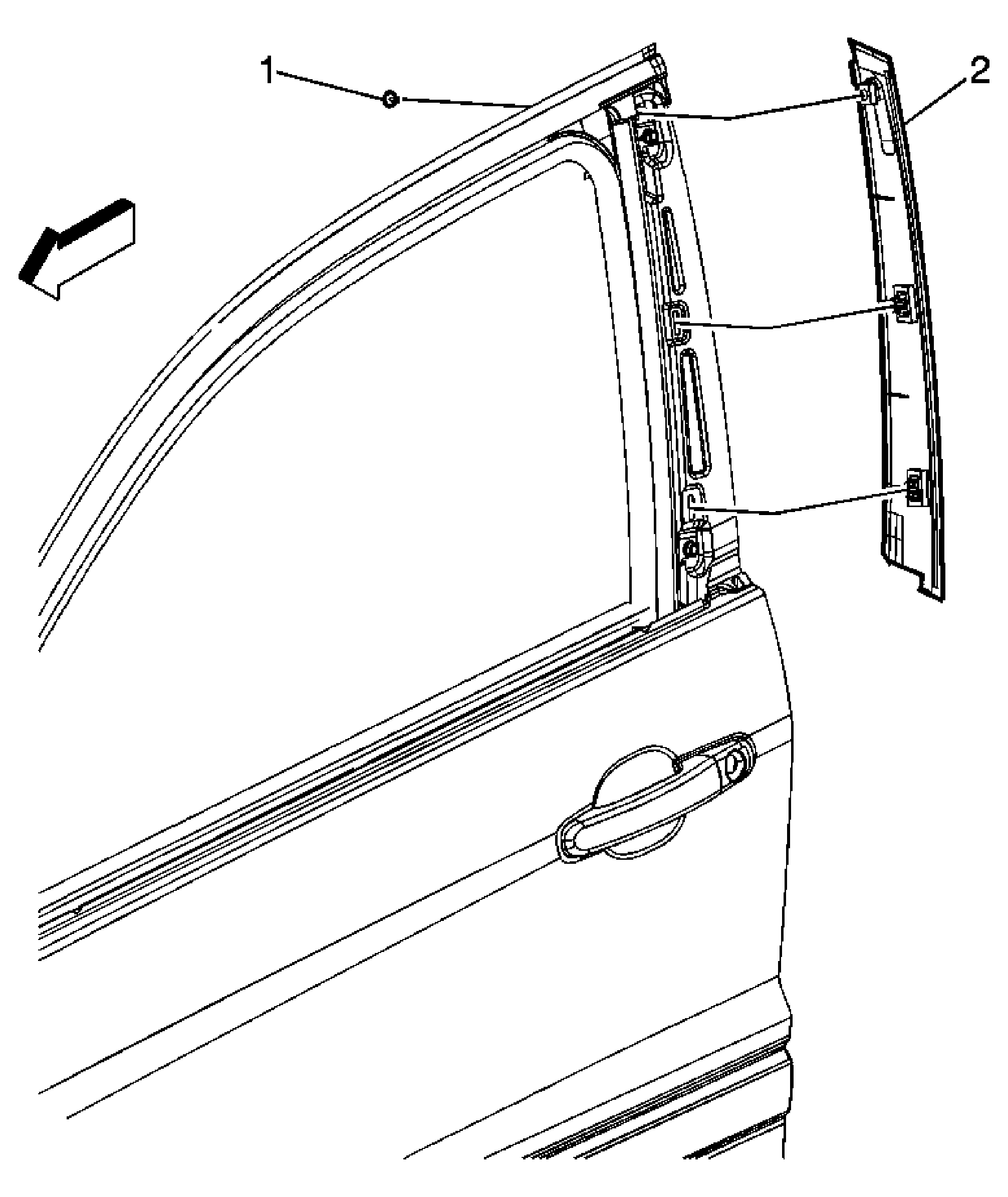

Fig 1: View Of Front Door Frame Applique

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Front Side Door Frame Applique Screw CAUTION: Refer to Fastener Caution . Tighten: 2 N.m (20 lb in)
2	Front Side Door Frame Applique Assembly
