Rear Compartment Lid Hinge Replacement

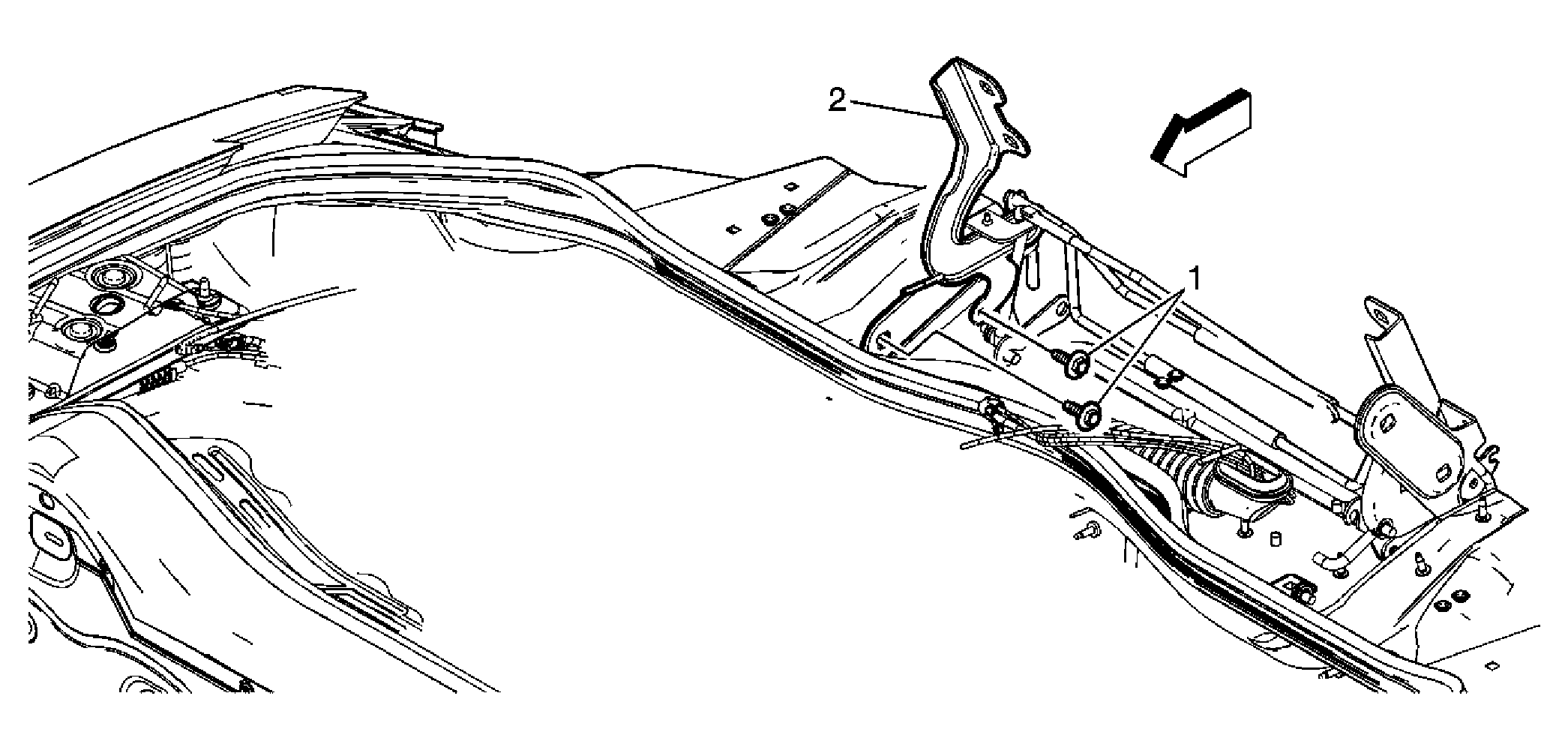

Fig 1: View Of Rear Compartment Lid Hinge & Bolts

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the rear compartment lid. Refer to Rear Compartment Lid Replacement . Remove the rear compartment torque rod. Refer to Rear Compartment Lid Hinge Torque Rod Replacement .
1	Rear Compartment Lid Hinge Bolts (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: 25 N.m (19 lb ft)
2	Rear Compartment Hinge

Callout

Component Name

Preliminary Procedures

Remove the rear compartment lid. Refer to Rear Compartment Lid Replacement .
Remove the rear compartment torque rod. Refer to Rear Compartment Lid Hinge Torque Rod Replacement .

Rear Compartment Lid Hinge Bolts (Qty: 2)

NOTE: Refer to Fastener Notice .

Tighten: 25 N.m (19 lb ft)

Rear Compartment Hinge
