Rear Compartment Lid Hinge Torque Rod Replacement

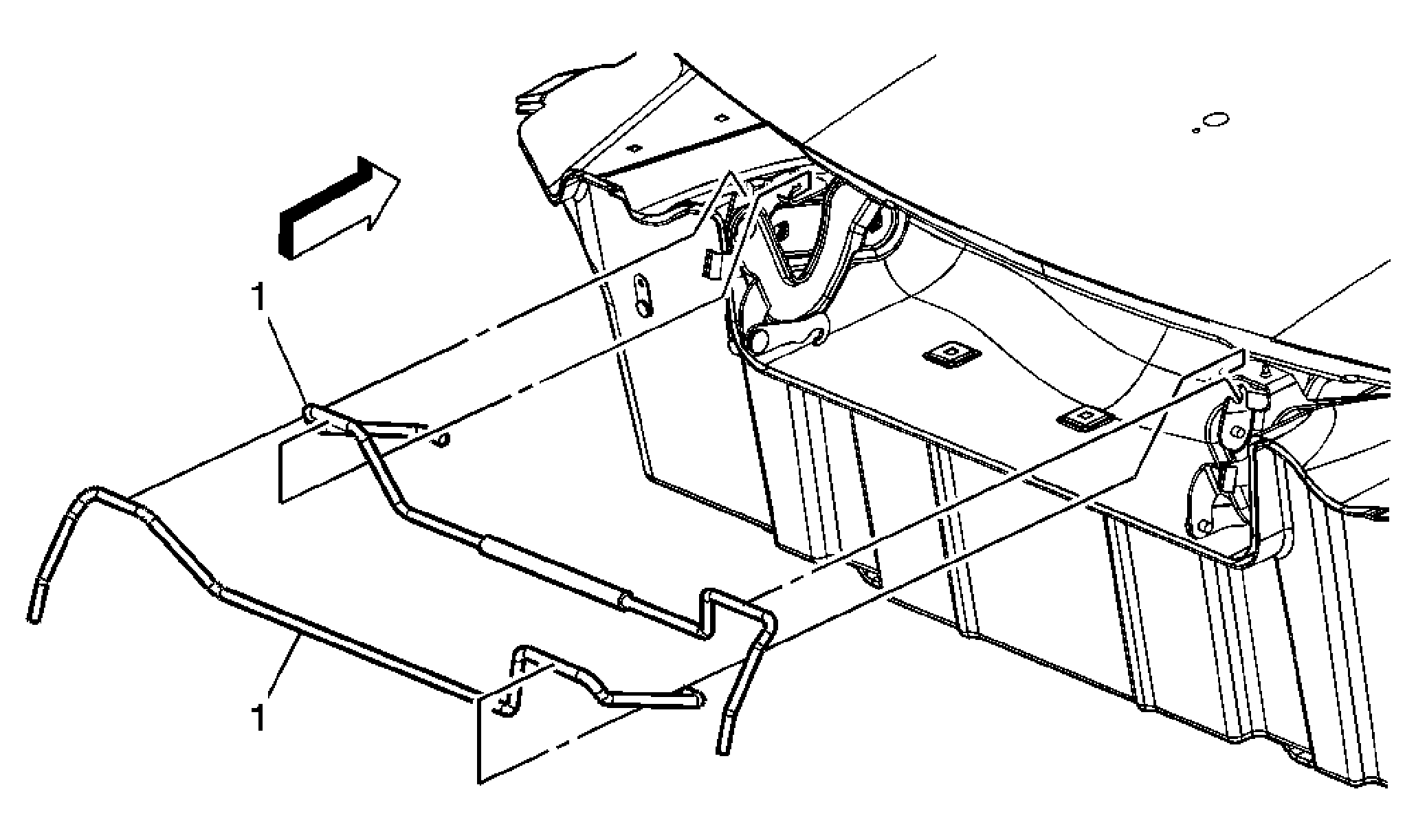

Fig 1: View Of Rear Compartment Lid Torque Rods

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
CAUTION: Refer to Rear Compartment Lid Hold-Open Device Caution . Preliminary Procedure: Remove the rear fascia. Refer to Rear Bumper Fascia Replacement (Sky) or Rear Bumper Fascia Replacement (Solstice) .
1	Rear Compartment Lid Torque Rods Tip:  Use tool J 39384-10  . Install torque rods with rear compartment lid closed. Engage the ends of the torque rods into the cam link. Open deck lid and engage the fixed end into the hinges.
