Rear Compartment Lid Replacement

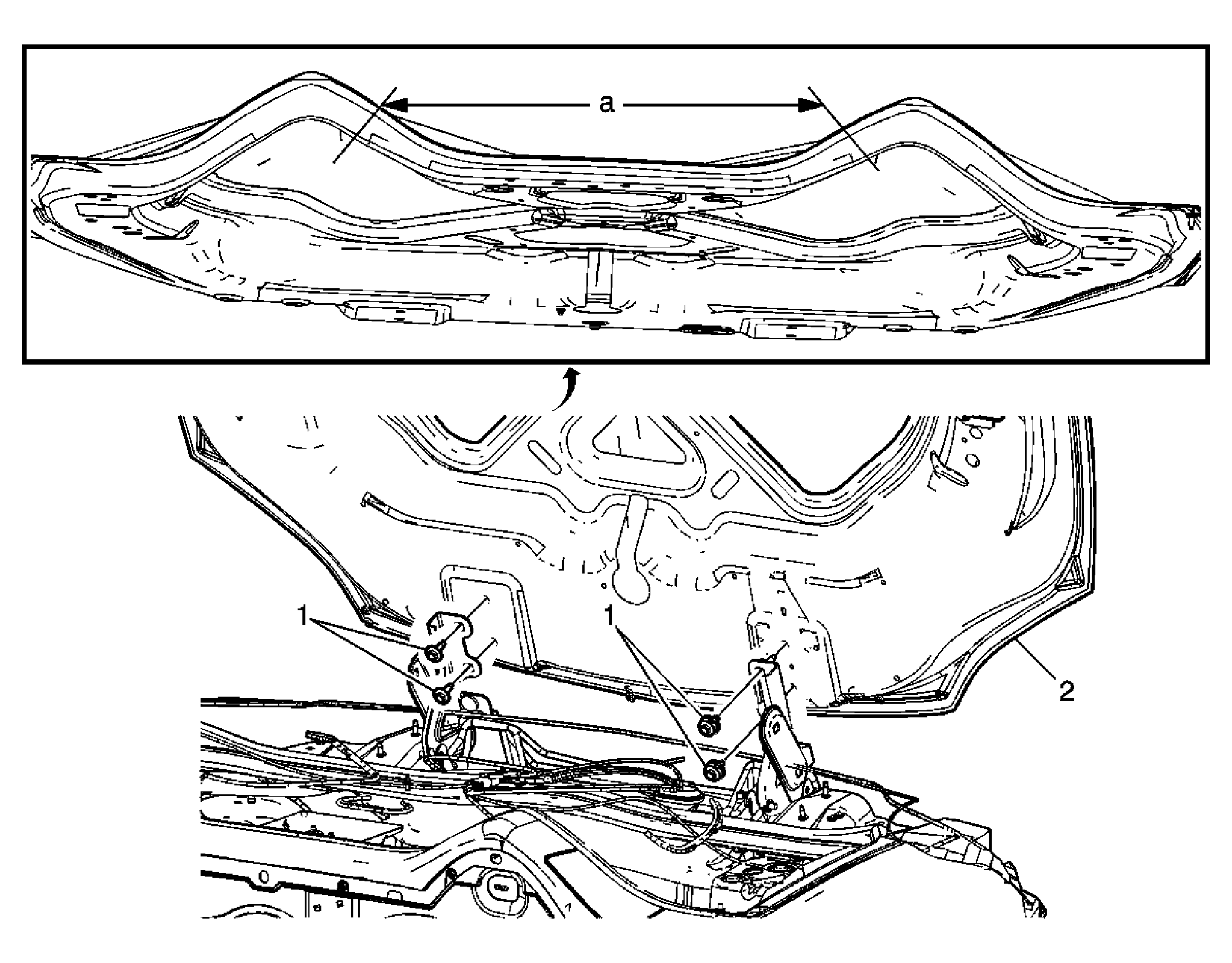

Fig 1: View Of Rear Compartment Lid & Bolts

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Disconnect the rear compartment lid buttress latch release cable and pull it through the lid and set it aside with the pass-through grommet. Refer to Rear Compartment Lid Buttress Latch Release Cable Replacement . Disconnect the antenna cable from the deck lid and pull it through the lid and set aside with the grommet assembly. Refer to Digital Radio Antenna Cable Replacement . Before installing the deck lid to the vehicle, apply a 6 mm bead of 3M® 08405 Flex Clear Seam Sealer or equivalent, to the upper interface joint of the seal flange to the deck lid inner (a).
1	Rear Compartment Lid Bolt (Qty: 4) NOTE: Refer to Fastener Notice . Tighten: 25 N.m (19 lb ft)
2	Rear Compartment Lid Tip: Transfer any parts over to the new lid if needed.

Callout

Component Name

Preliminary Procedures

Disconnect the rear compartment lid buttress latch release cable and pull it through the lid and set it aside with the pass-through grommet. Refer to Rear Compartment Lid Buttress Latch Release Cable Replacement .
Disconnect the antenna cable from the deck lid and pull it through the lid and set aside with the grommet assembly. Refer to Digital Radio Antenna Cable Replacement .
Before installing the deck lid to the vehicle, apply a 6 mm bead of 3M® 08405 Flex Clear Seam Sealer or equivalent, to the upper interface joint of the seal flange to the deck lid inner (a).

Rear Compartment Lid Bolt (Qty: 4)

NOTE: Refer to Fastener Notice .

Tighten: 25 N.m (19 lb ft)

Rear Compartment Lid
Tip: Transfer any parts over to the new lid if needed.
