Removal and Installation: Installation
WARNING: This page is about a different variant/trim than selected.
Installation is in the reverse order of removal.
CAUTION:
Do not reuse intake manifold gaskets.

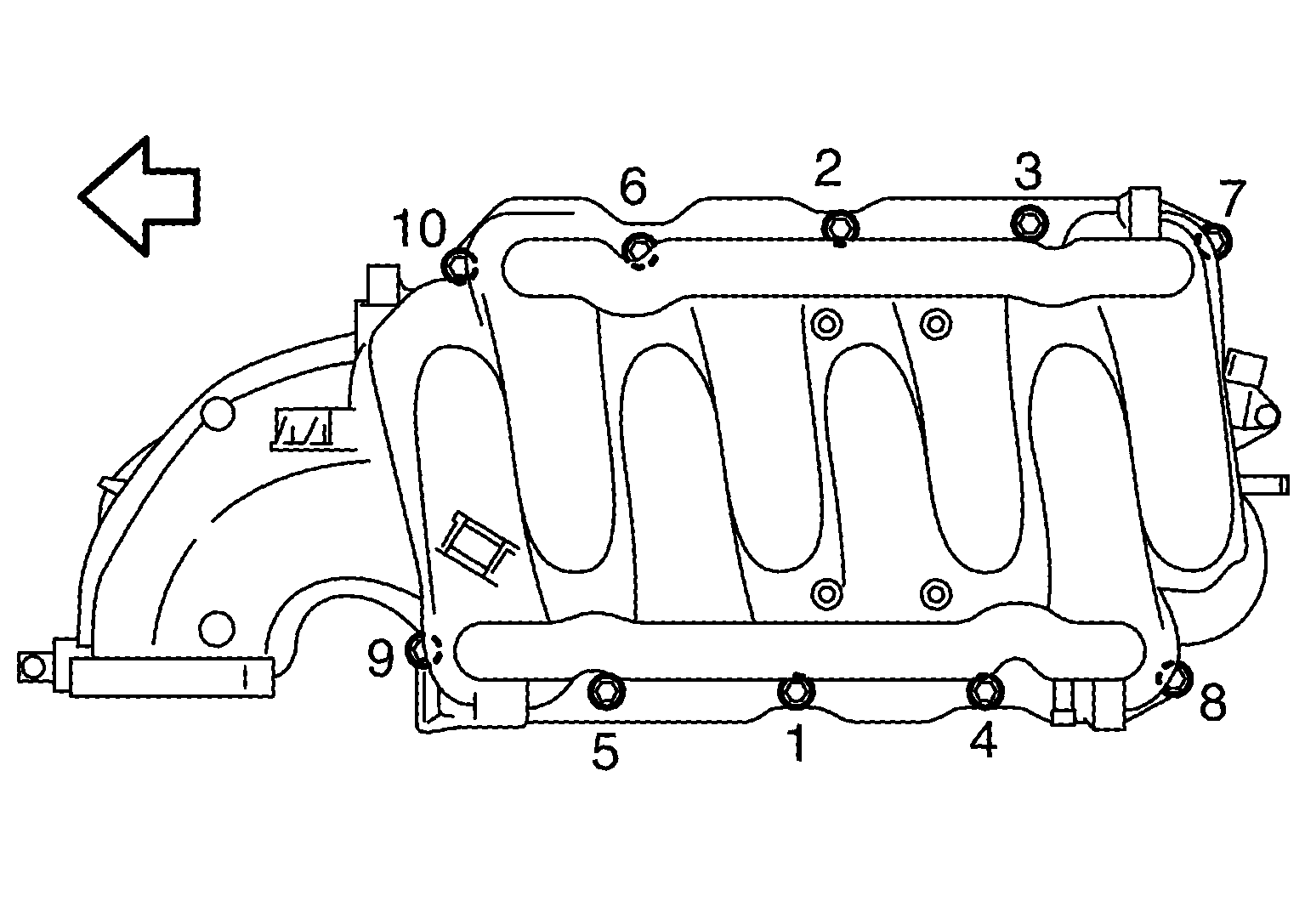

Intake Manifold
Tighten intake manifold bolts in order as shown.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
Intake manifold bolts
|
: 11.0 N.m (1.1 kg-m, 8 ft-lb)
|
|
|
: Engine front
|

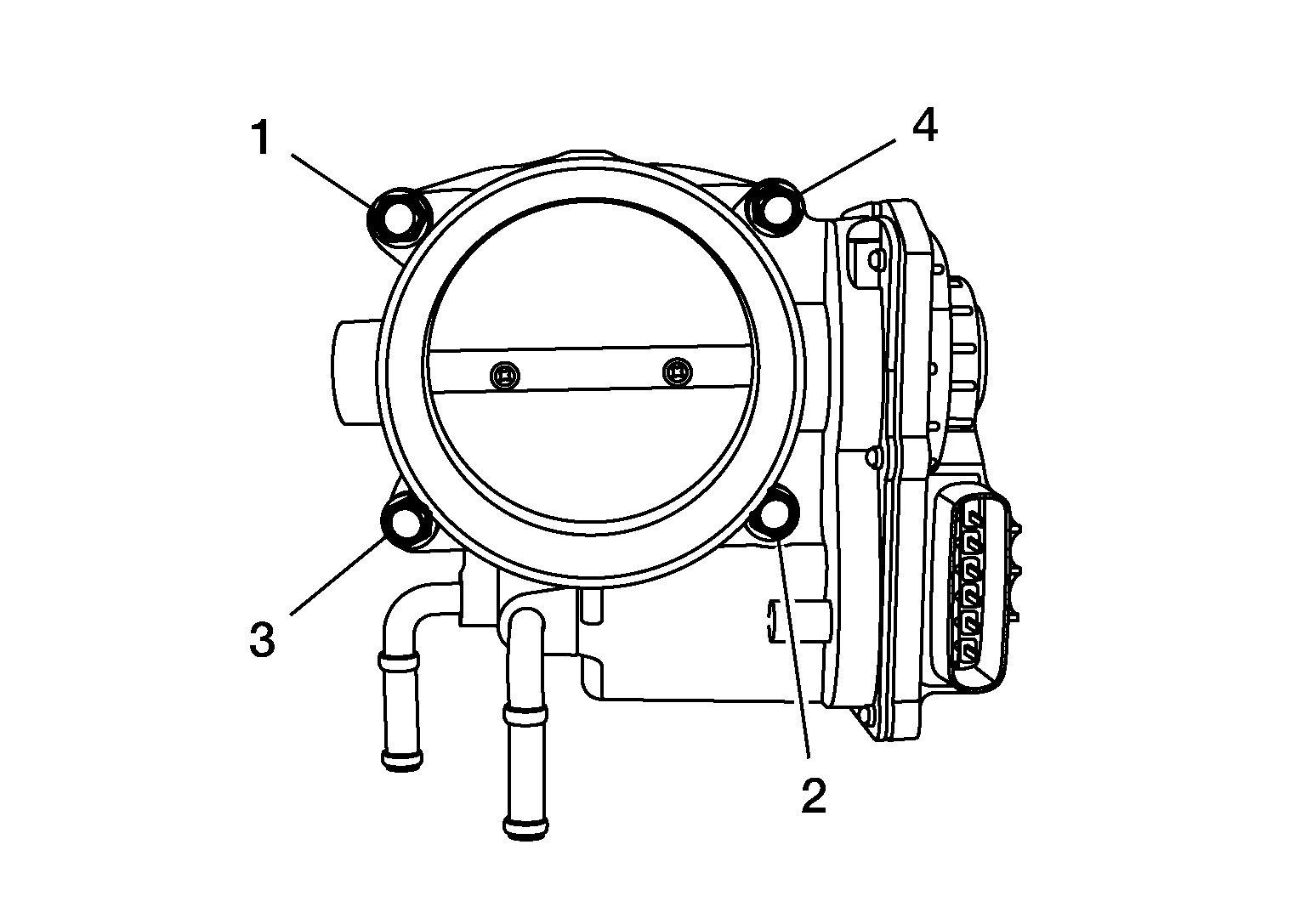

Electric Throttle Control Actuator
