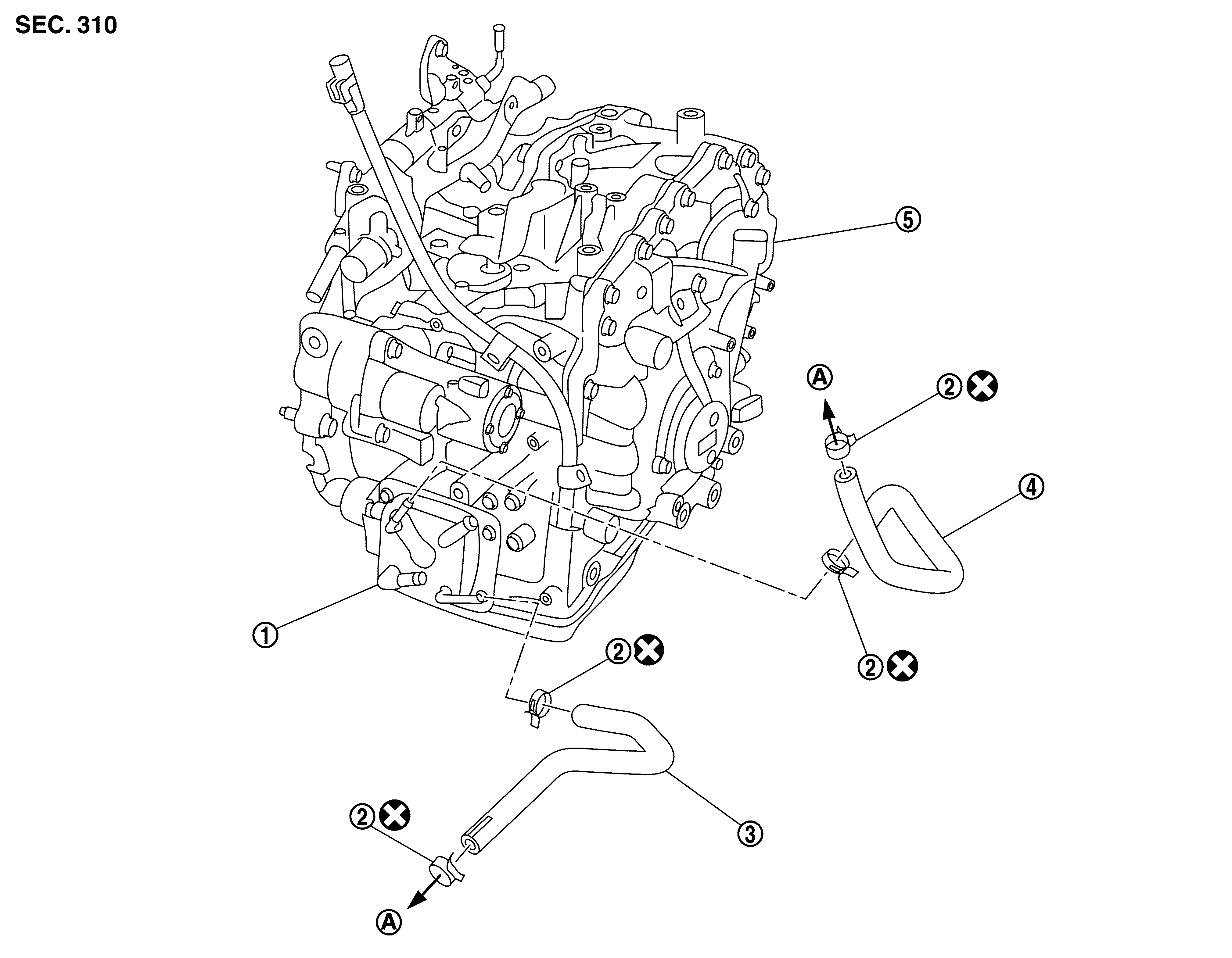

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
CVT oil warmer |
2. |
Hose clamp |
3. |
CVT fluid cooler hose A |
|
4. |
CVT fluid cooler hose B |
5. |
Transaxle assembly |
||
|
A. |
To radiator. Refer to Exploded View . |
