Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Be careful not to damage center console bin. If bin is damaged, replace center console.
  1. Remove shift selector handle. Refer to Exploded View .
  2. Remove the shift selector finisher. Refer to Exploded View .

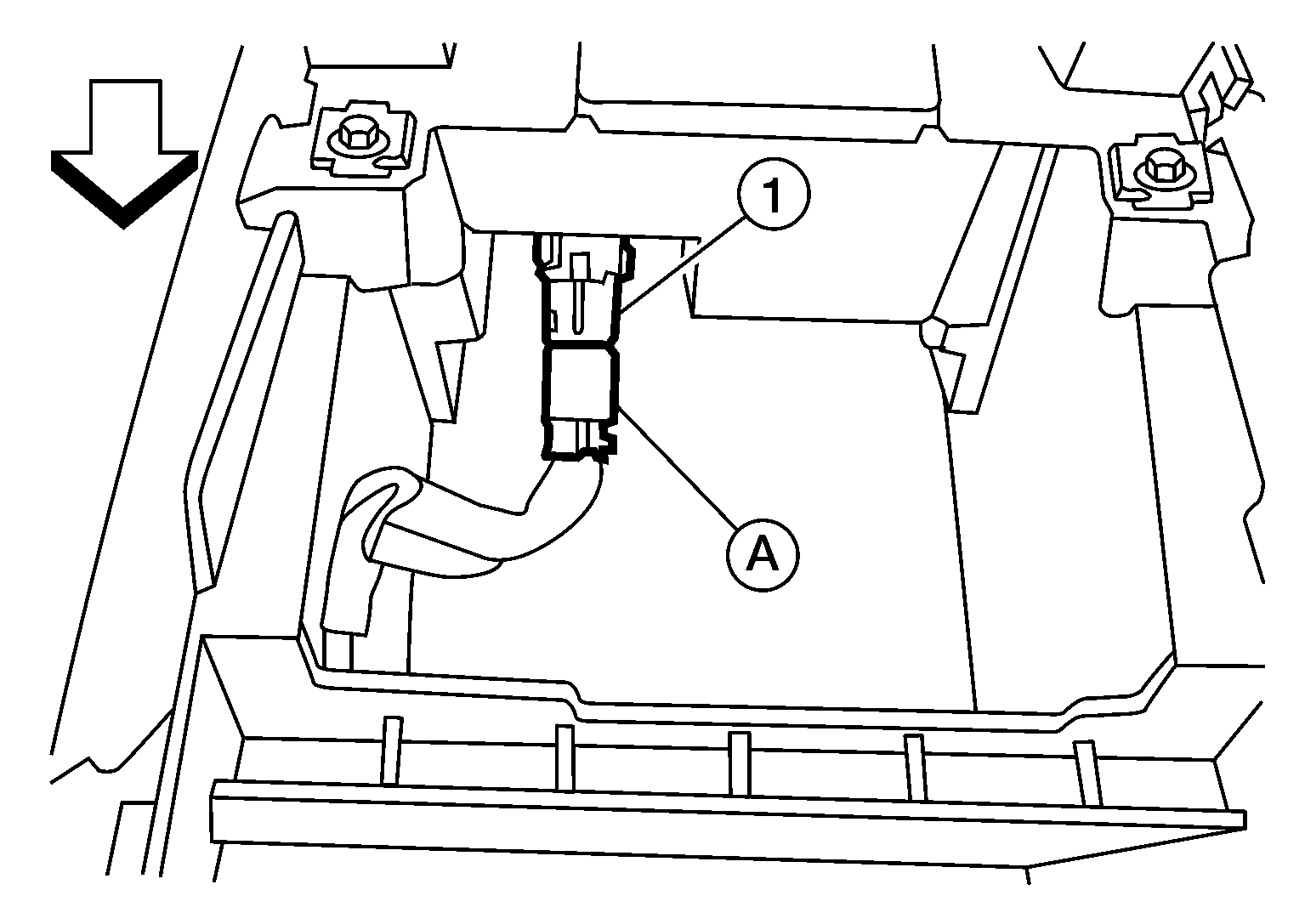

  3. Disconnect the harness connector (A) from the front console power socket (1).
    GNSALMIA0837Z-837Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Front of vehicle

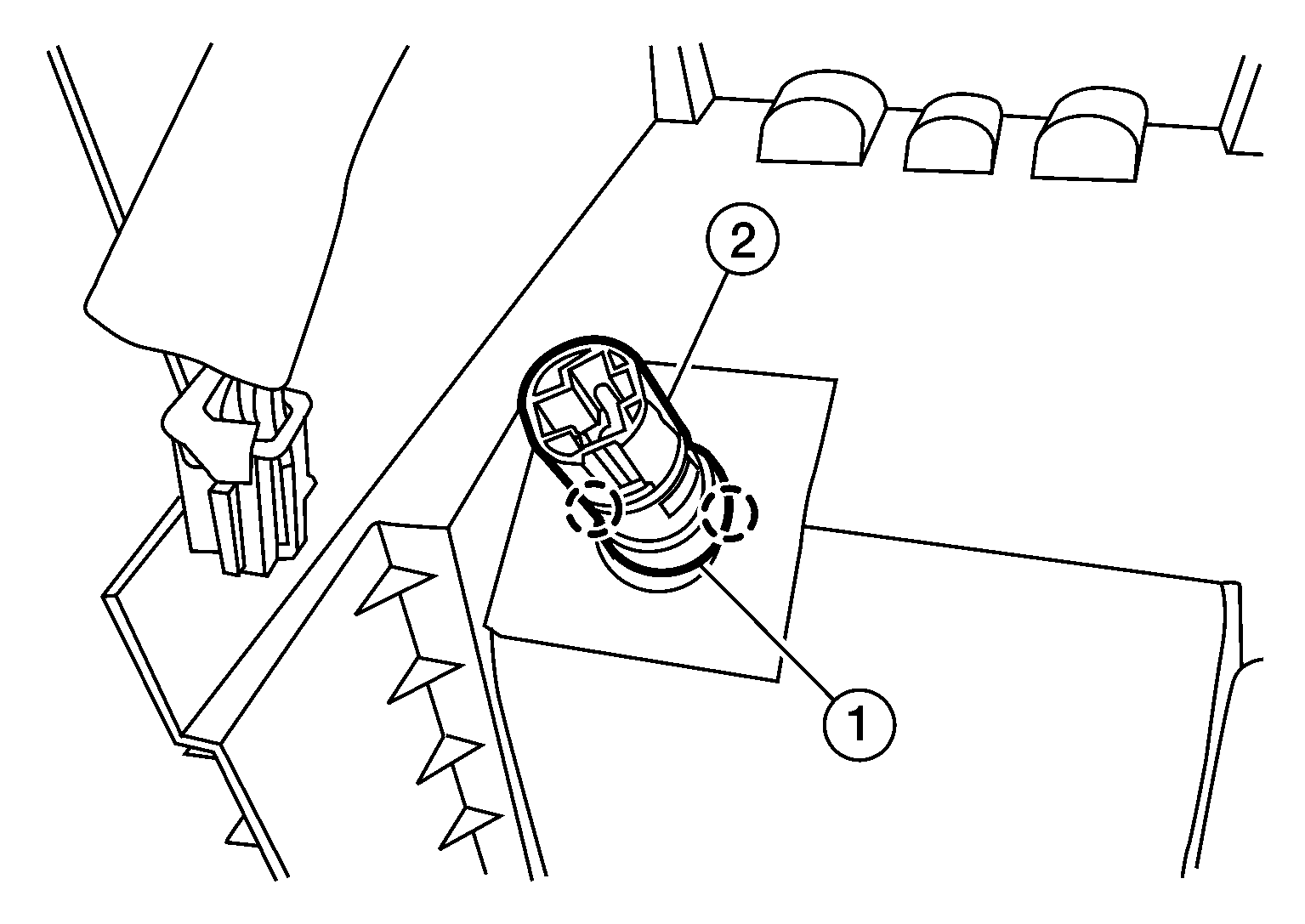

  4. Release pawls and remove front console power socket finisher (1) and power socket (2).
    GNSALMIA0838Z-838Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Pawl
  5. Remove front console power socket from front console power socket finisher.
