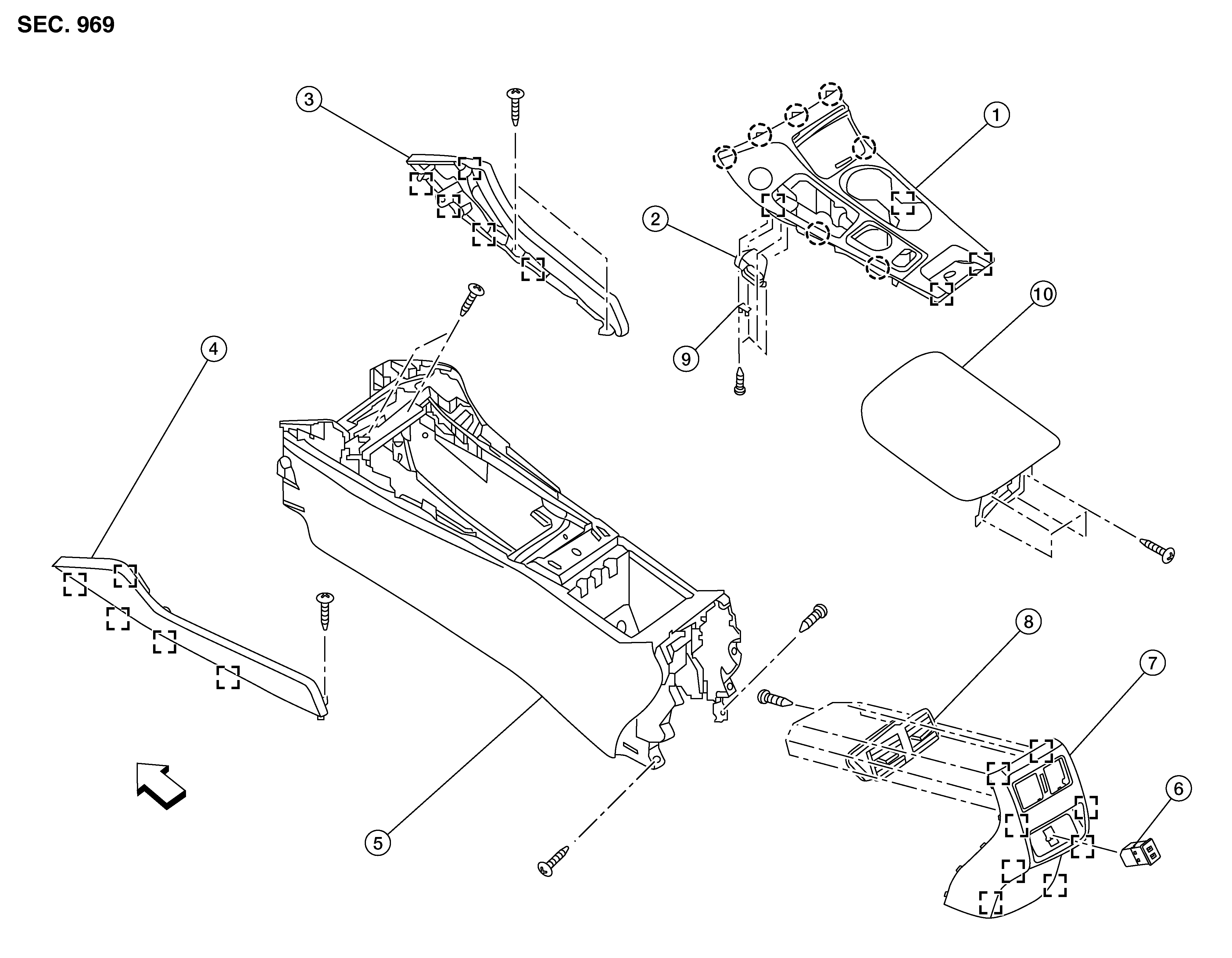

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Shift selector finisher |
2. |
Shift selector indicator |
3. |
Center console finisher (RH) |
|
4. |
Center console finisher (LH) |
5. |
Center console |
6. |
Rear USB port charger (if equipped) |
|
7. |
Rear console finisher |
8. |
Rear center ventilator duct |
9. |
Shift selector indicator lock |
|
10. |
Center console bin lid |
|
Pawl |
|
Metal clip |
|
|
Front |
