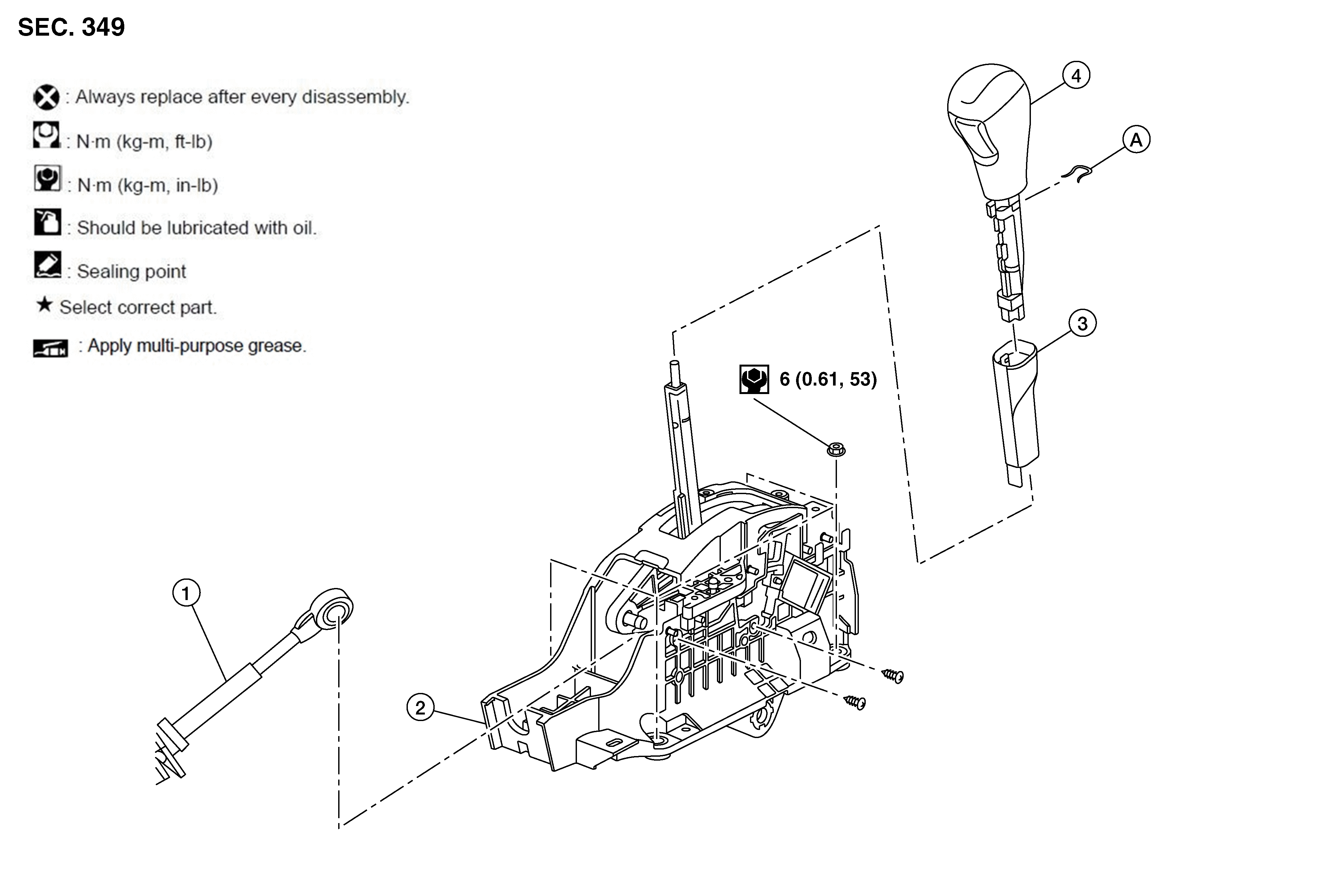

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
1.
|
CVT Shift selector assembly
|
2.
|
Control cable
|
3.
|
Shift selector handle cover
|
|
4
|
Shift selector handle
|
A.
|
Shift selector handle clip
|
