Valve Timing Control Cover (bank 1): Installation
WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

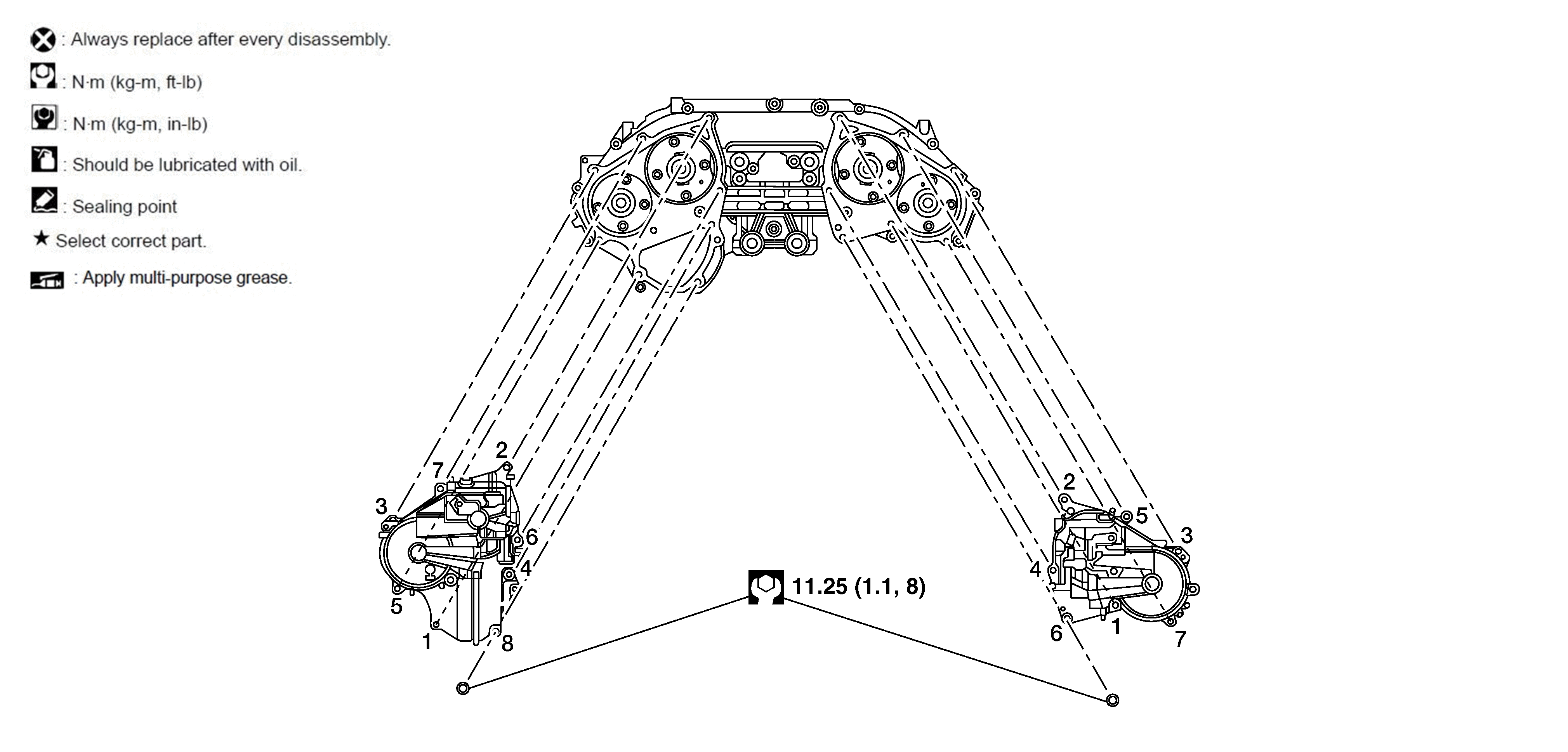

- Install valve timing control cover (bank 1). Refer to Exploded View .
- Tighten the timing cover bolts (A) in the order shown.
- Installation of remaining components is in the reverse order of removal.
CAUTION:
- Do not reuse O-rings.
- Lubricate O-rings with clean engine oil prior to installation.
