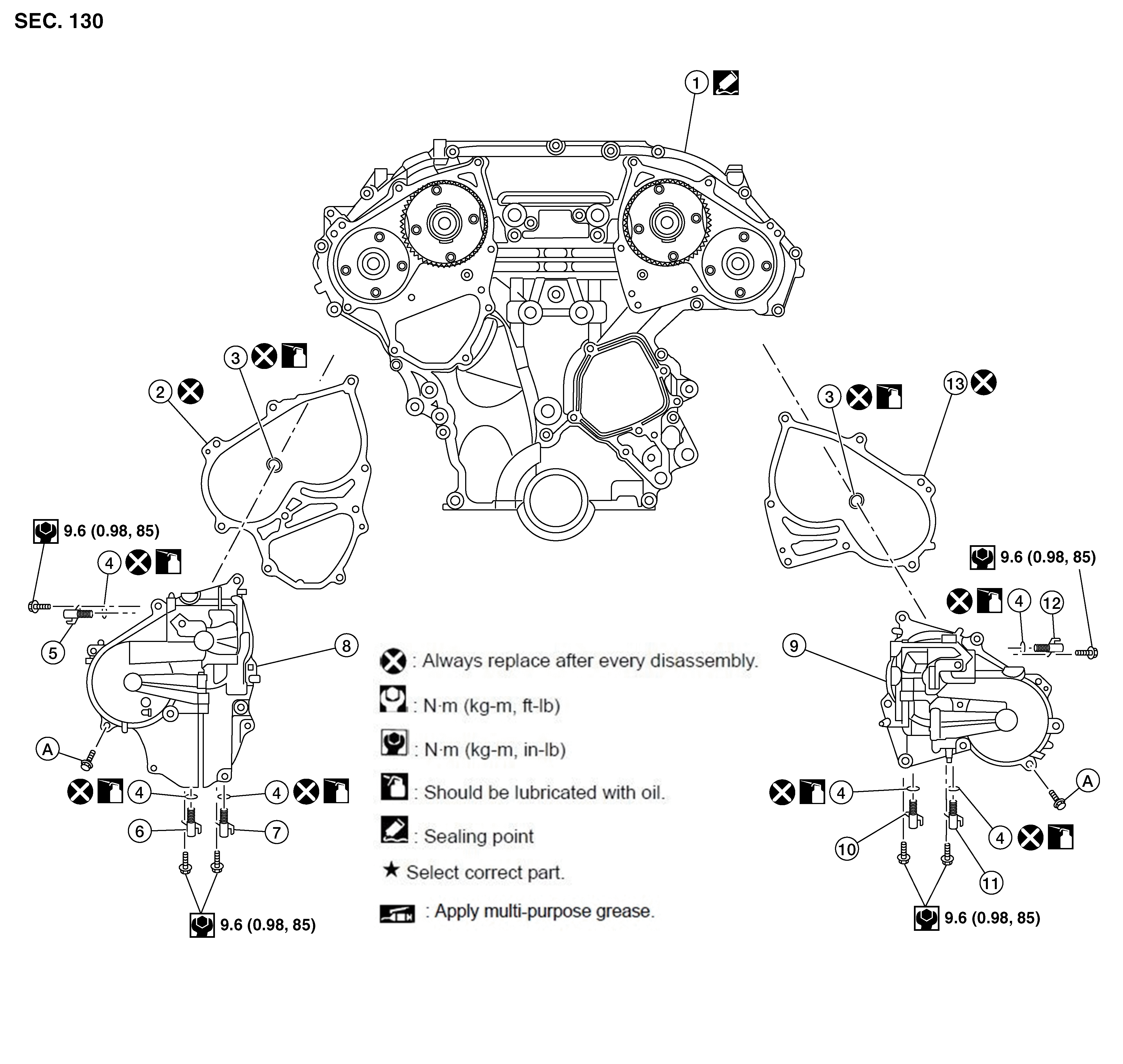

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Front timing chain case |
2. |
Valve timing control cover gasket (bank 1) |
3. |
O-ring |
|
4. |
O-ring |
5. |
Intake valve timing intermediate lock control solenoid valve (bank 1) |
6. |
Exhaust valve timing control solenoid valve (bank 1) |
|
7. |
Intake valve timing control solenoid valve (bank 1) |
8. |
Valve timing control cover (bank 1) |
9. |
Valve timing control cover (bank 2) |
|
10. |
Intake valve timing control solenoid (bank 2) |
11. |
Exhaust valve timing control solenoid (bank 2) |
12. |
Intake valve timing intermediate lock control solenoid valve (bank 2) |
|
13. |
Valve timing control cover gasket (bank 2) |
A. |
Refer to Valve Timing Control Cover (bank 1) or Valve Timing Control (bank 2) |
