Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Remove the engine assembly. Refer to Removal and Installation .
Remove upper oil pan. Refer to Removal and Installation (Upper Oil Pan) .
Remove the front timing chain case. Refer to Removal and Installation .
Remove the timing chains (primary) and (secondary). Refer to Exploded View .

Remove the rear timing chain case.

Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION:

Do not remove the plate metal cover for the oil passage.
After removing the chain case, do not apply any load to the case that might bend it.

Loosen and remove the rear timing chain case bolts in the reverse order shown.

Courtesy of NISSAN NORTH AMERICA, INC.

Cut the sealant using Tool and remove the rear timing chain case.

After removing the bolts, separate the mating surface and remove the old liquid gasket using Tool.

Courtesy of NISSAN NORTH AMERICA, INC.

Tool number

: KV10111100 (J-37228)

CAUTION: Do not damage the mating surfaces.

Tap the seal cutter to insert it (1).
In areas where the Tool is difficult to use, lightly tap to slide it (2).

Remove O-rings (1) from cylinder block.

Courtesy of NISSAN NORTH AMERICA, INC.

: Engine front

CAUTION: Do not reuse O-rings.

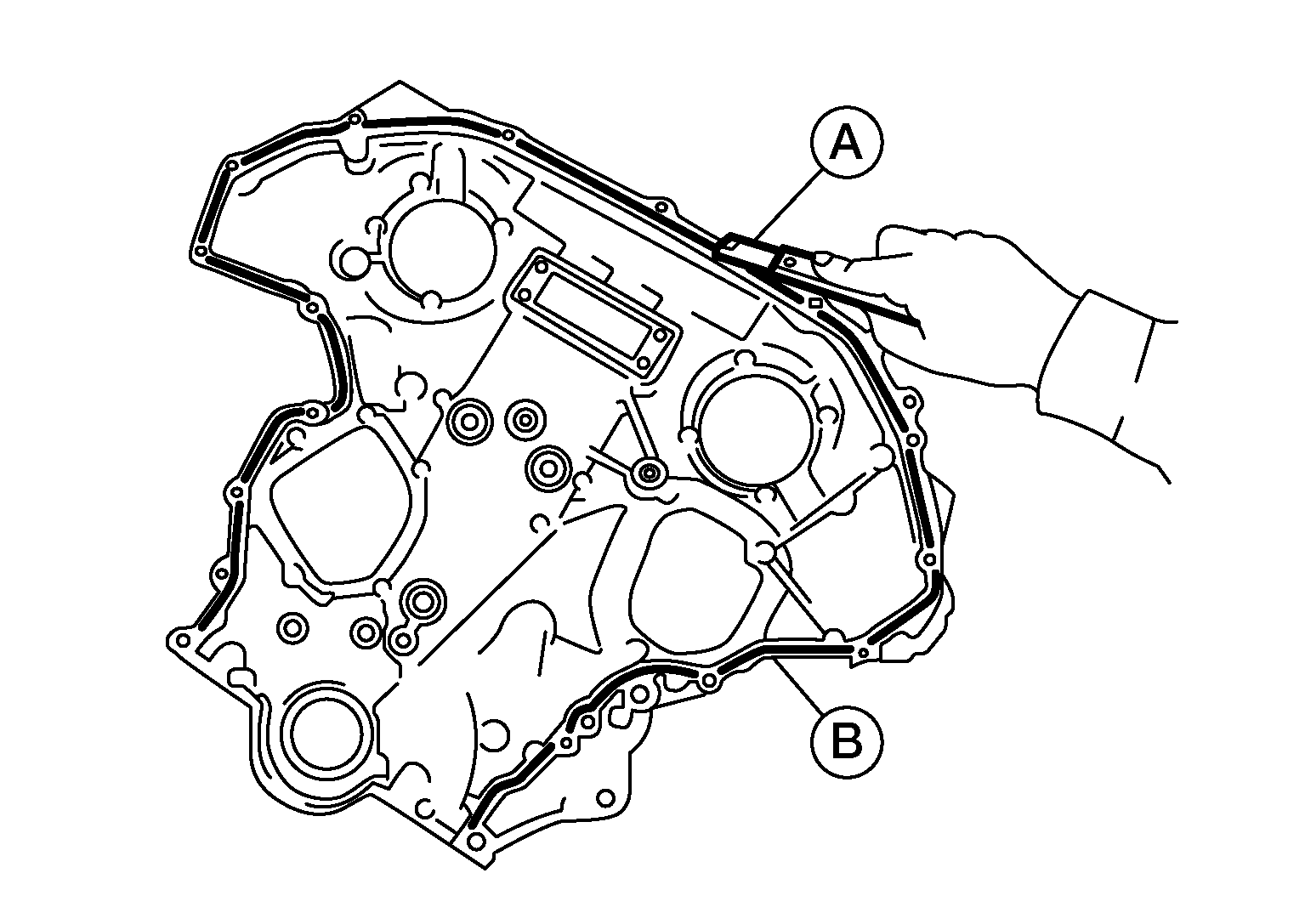

Use a scraper (A) to remove all of the old Silicone RTV Sealant from the front and rear timing chain case (B) and opposite mating surfaces.

Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION: Do not damage the mating surfaces.
Remove all old Silicone RTV Sealant (A) from all the bolt holes (B) and threads.

Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION: Do not damage the threads or mating surfaces.
