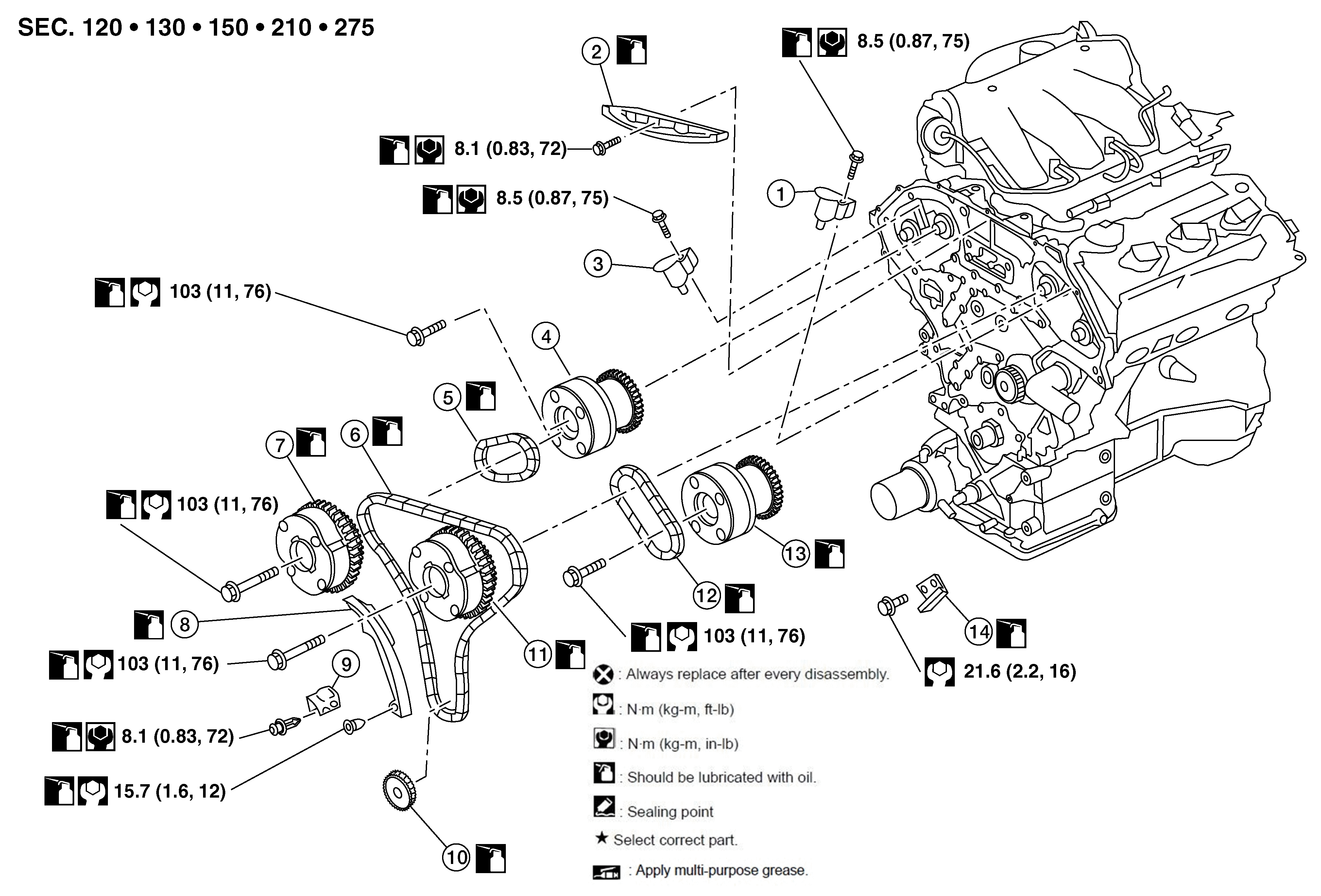

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Timing chain tensioner (secondary) (bank 2) |
2. |
Internal chain guide |
3. |
Timing chain tensioner (secondary) (bank 1) |
|
4. |
Camshaft sprocket (bank 1) (EXH) |
5. |
Timing chain (secondary) |
6. |
Timing chain (primary) |
|
7. |
Camshaft sprocket (bank 1) (INT) |
8. |
Slack guide |
9. |
Timing chain tensioner (primary) |
|
10. |
Crankshaft sprocket |
11. |
Camshaft sprocket (bank 2) (INT) |
12. |
Timing chain (secondary) |
|
13. |
Camshaft sprocket (bank 2) (EXH) |
14. |
Tension guide |
