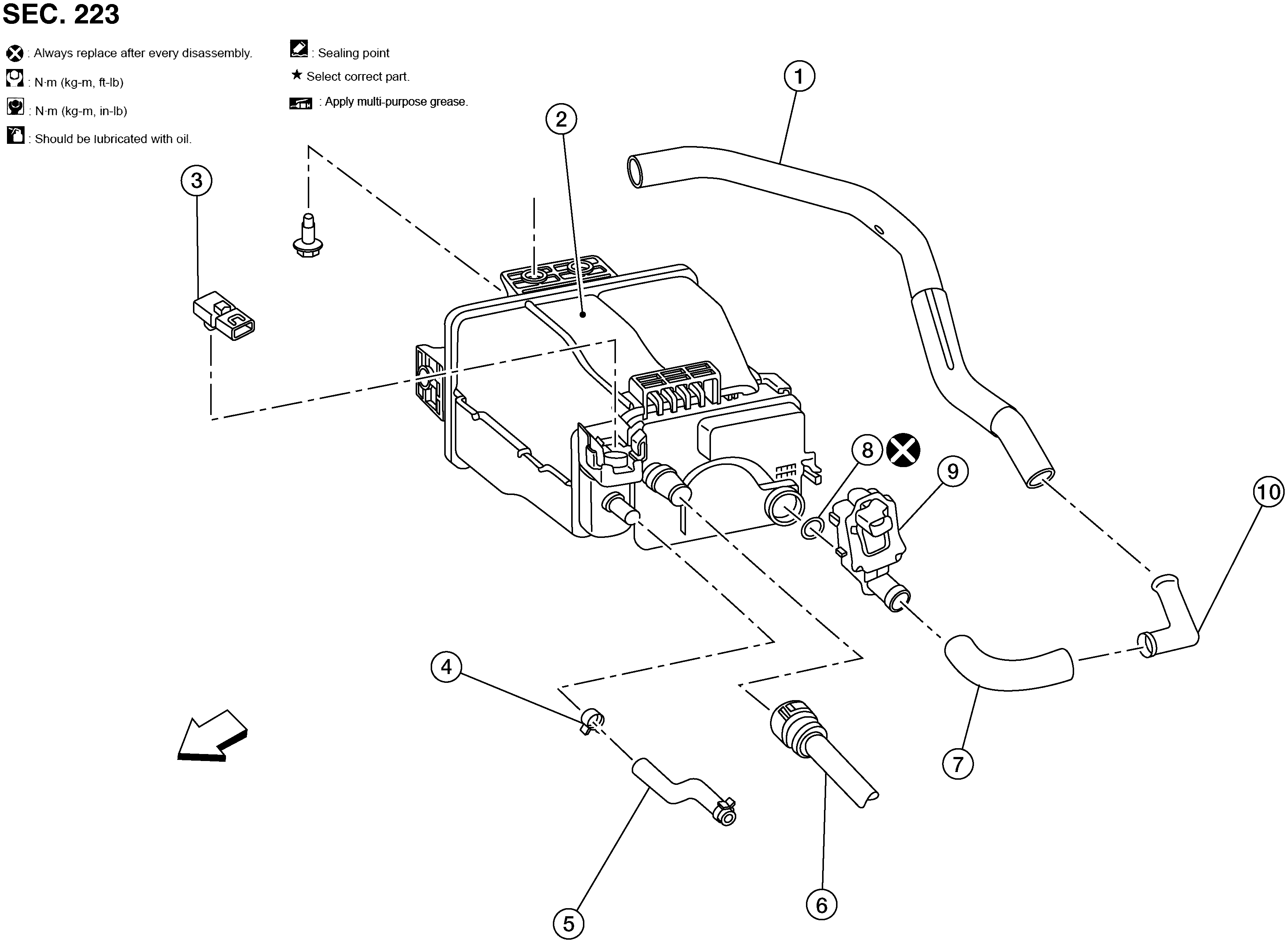

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
EVAP canister vent control valve hose |
2. |
EVAP canister |
3. |
EVAP canister control pressure sensor (with O-ring) |
|
4. |
Hose clamp |
5. |
EVAP canister purge hose |
6. |
EVAP canister vent line |
|
7. |
EVAP canister vent control valve hose |
8. |
O-ring |
9. |
EVAP canister vent control valve |
|
10. |
EVAP canister vent control valve hose connector |
|

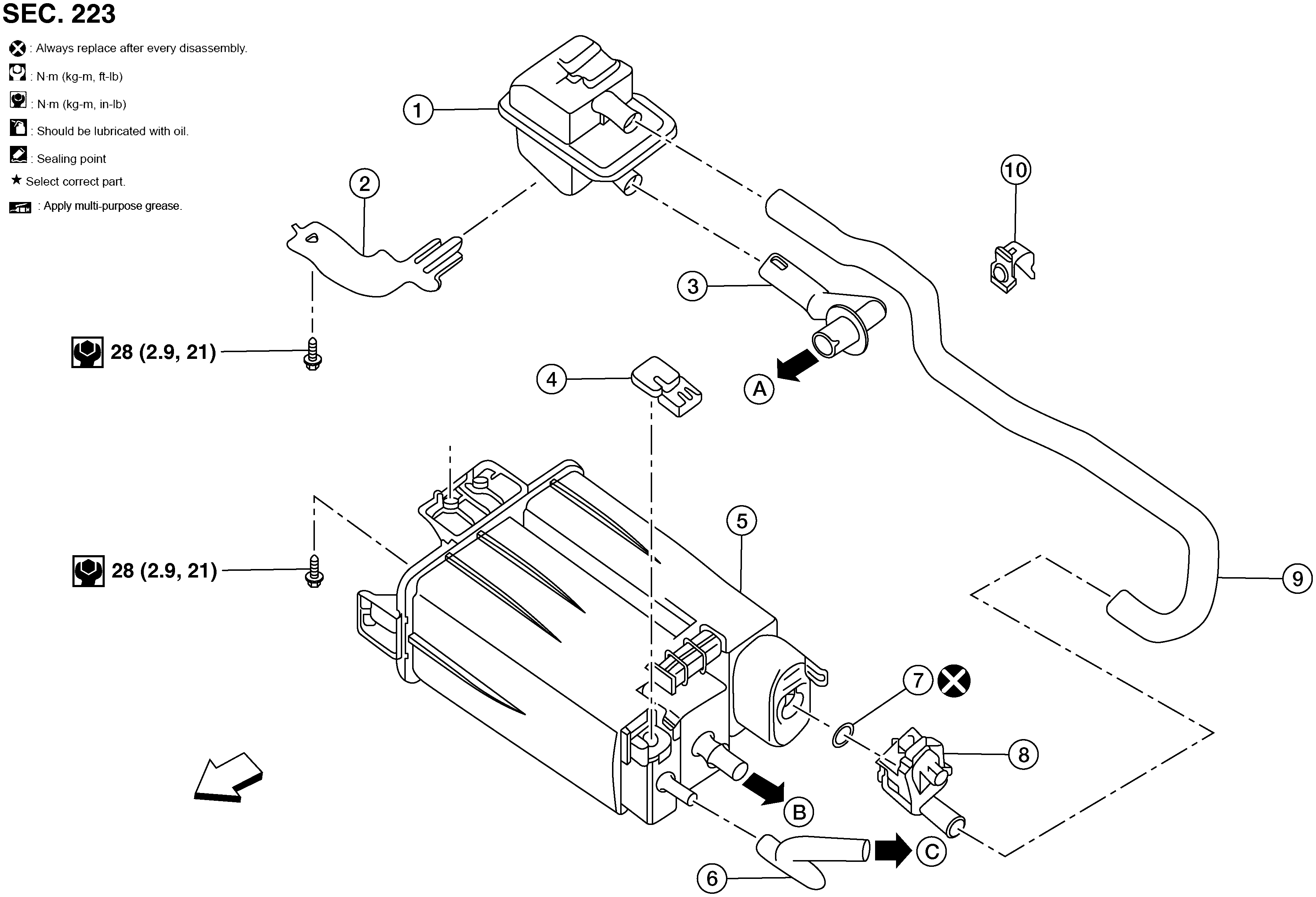

Front of vehicle |
|
1. |
EVAP canister filter |
2. |
EVAP filter bracket |
3. |
EVAP canister filter vent hose |
|
4. |
EVAP control system pressure sensor (with O-ring) |
5. |
EVAP canister |
6. |
EVAP canister purge hose |
|
7. |
O-ring |
8. |
EVAP canister vent control valve |
9. |
EVAP canister control valve hose |
|
10. |
Clip |
A. |
To vehicle body |
B. |
To fuel tank Exploded View. |
|
C. |
To EVAP tube Exploded view. |
|
Front |
