Removal and Installation: Removal

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove wiper arm covers and wiper arms. Refer to Removal and Installation .
  2. Remove cowl top finisher assembly. Refer to Exploded View .
  3. Remove front coil spring and strut mount insulator covers.
  4. Remove upper front coil spring and strut mount insulator bolts using power tool.
  5. Remove the wheels and tires using power tool. Refer to Road Wheel .
  6. Remove wheel sensor harness from the front coil spring and strut.

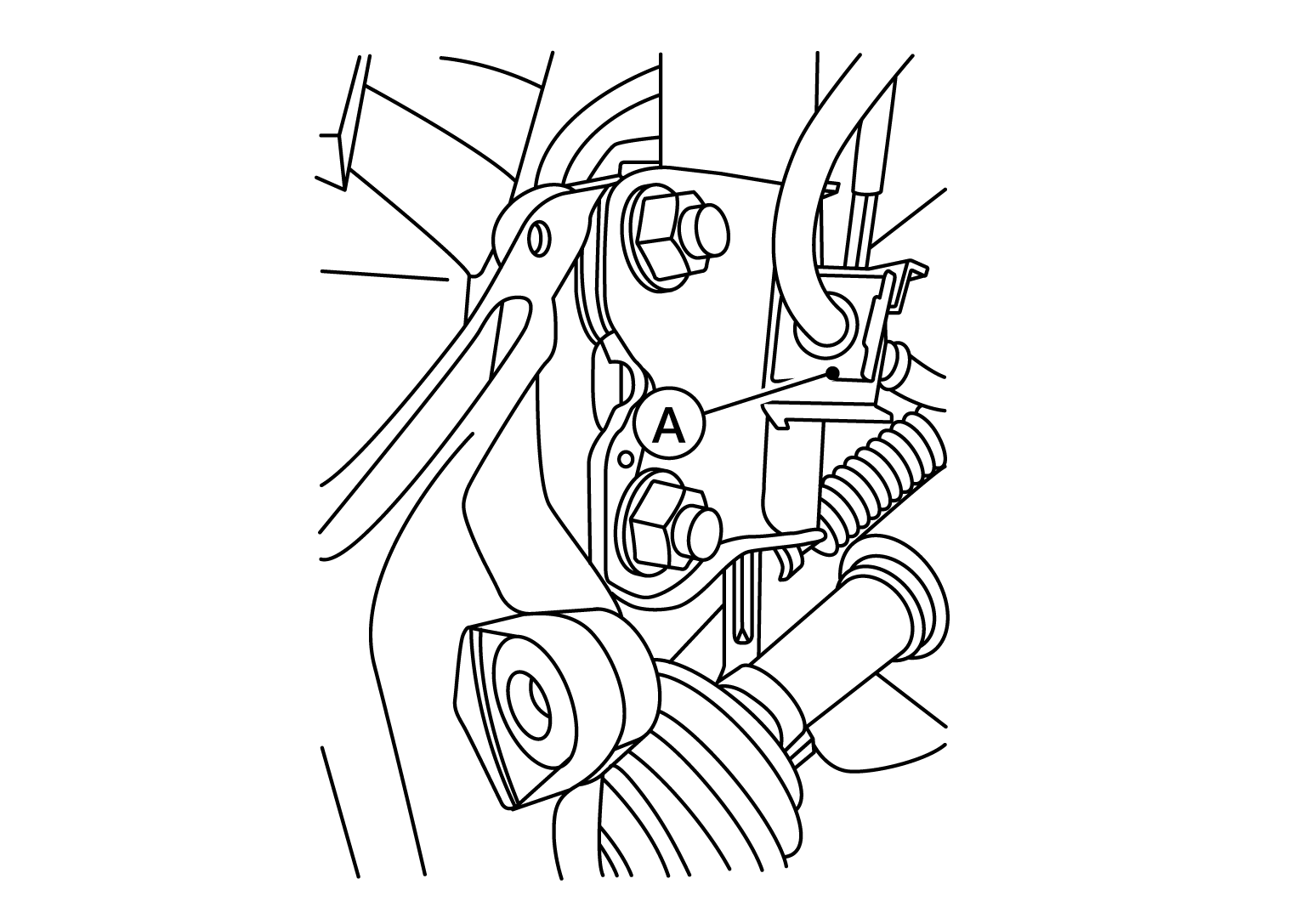

  7. Remove brake hose lock plate (A).
    GNSDB124519Courtesy of NISSAN NORTH AMERICA, INC.

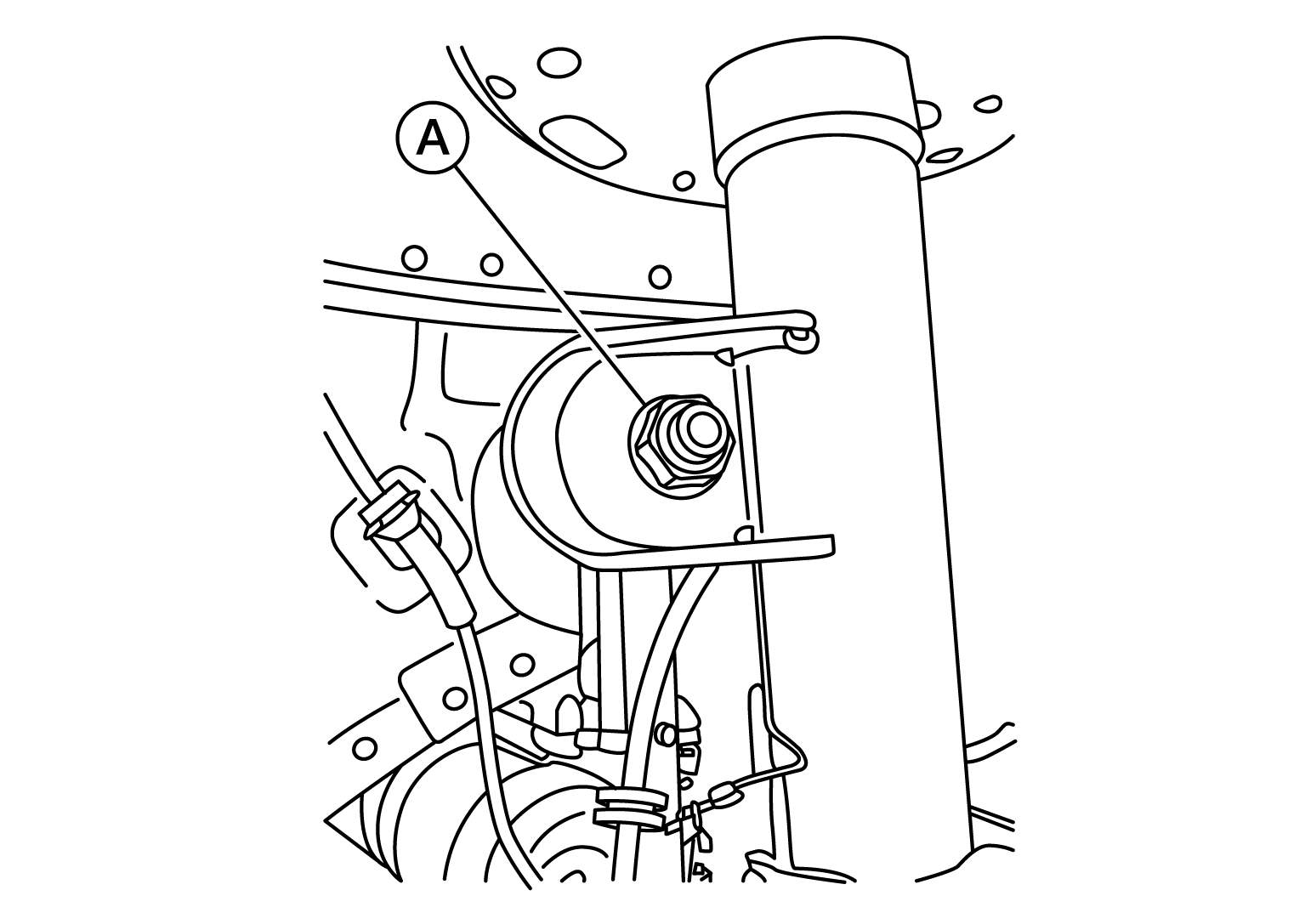

  8. Remove stabilizer connecting rod nut (A) from front coil spring and strut. Position stabilizer connecting rod aside. Refer to Exploded View .
    GNSALEIA0139Z-139Courtesy of NISSAN NORTH AMERICA, INC.
  9. Remove steering knuckle-to-front coil spring and strut bolts and nuts with power tool.
  10. Remove front coil spring and strut assembly.
