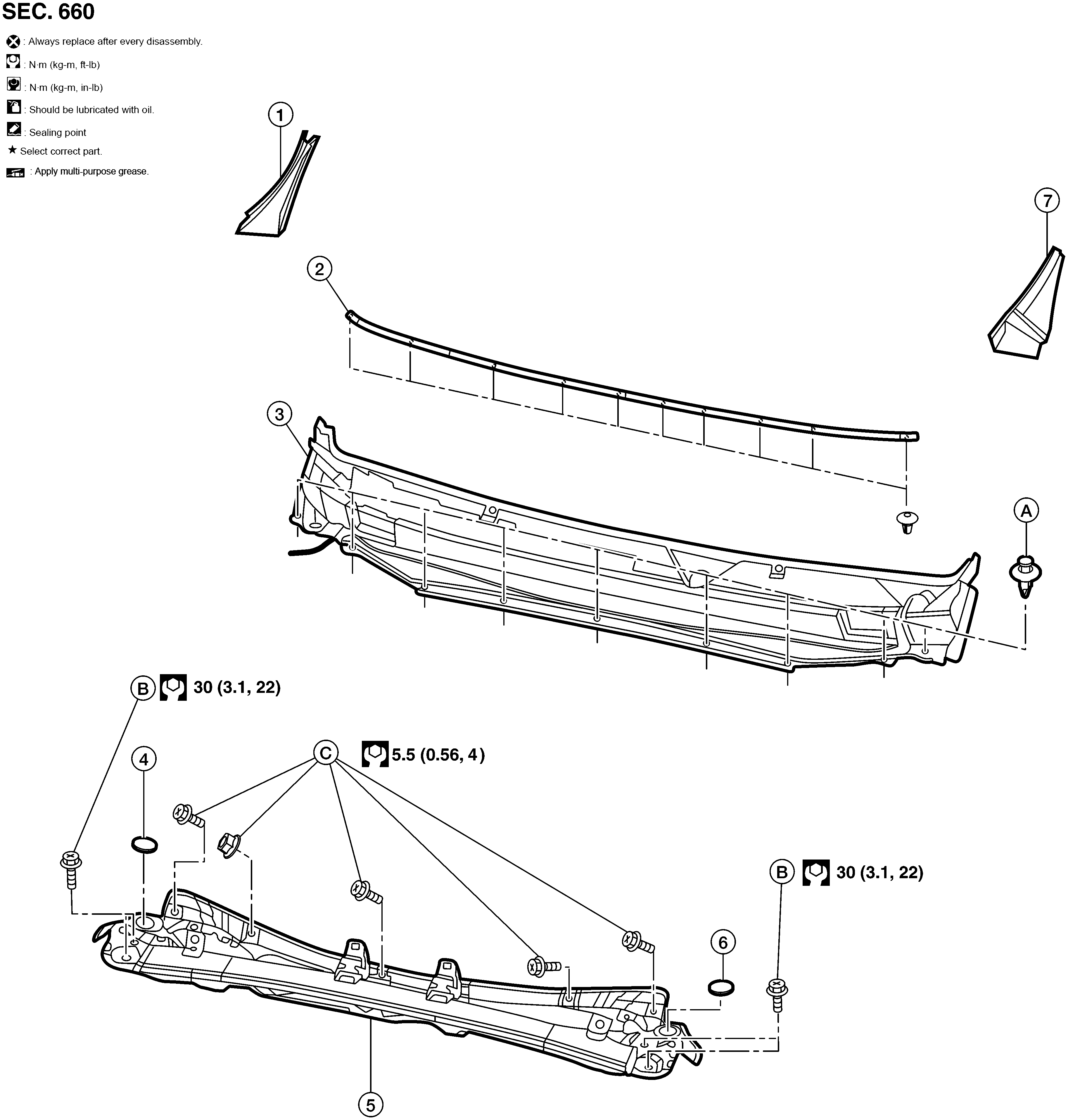

Exploded View
WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Cowl top side trim cover (RH) |
2. |
Cowl top seal |
3. |
Cowl top cover |
|
4. |
Rubber plug (LH) |
5. |
Cowl top extension |
6. |
Rubber plug (RH) |
|
7. |
Cowl top side trim cover (LH) |
A. |
Clip |
B. |
Refer to installation Removal and Installation |
|
C. |
Refer to installation Removal and Installation |
