Exploded View

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

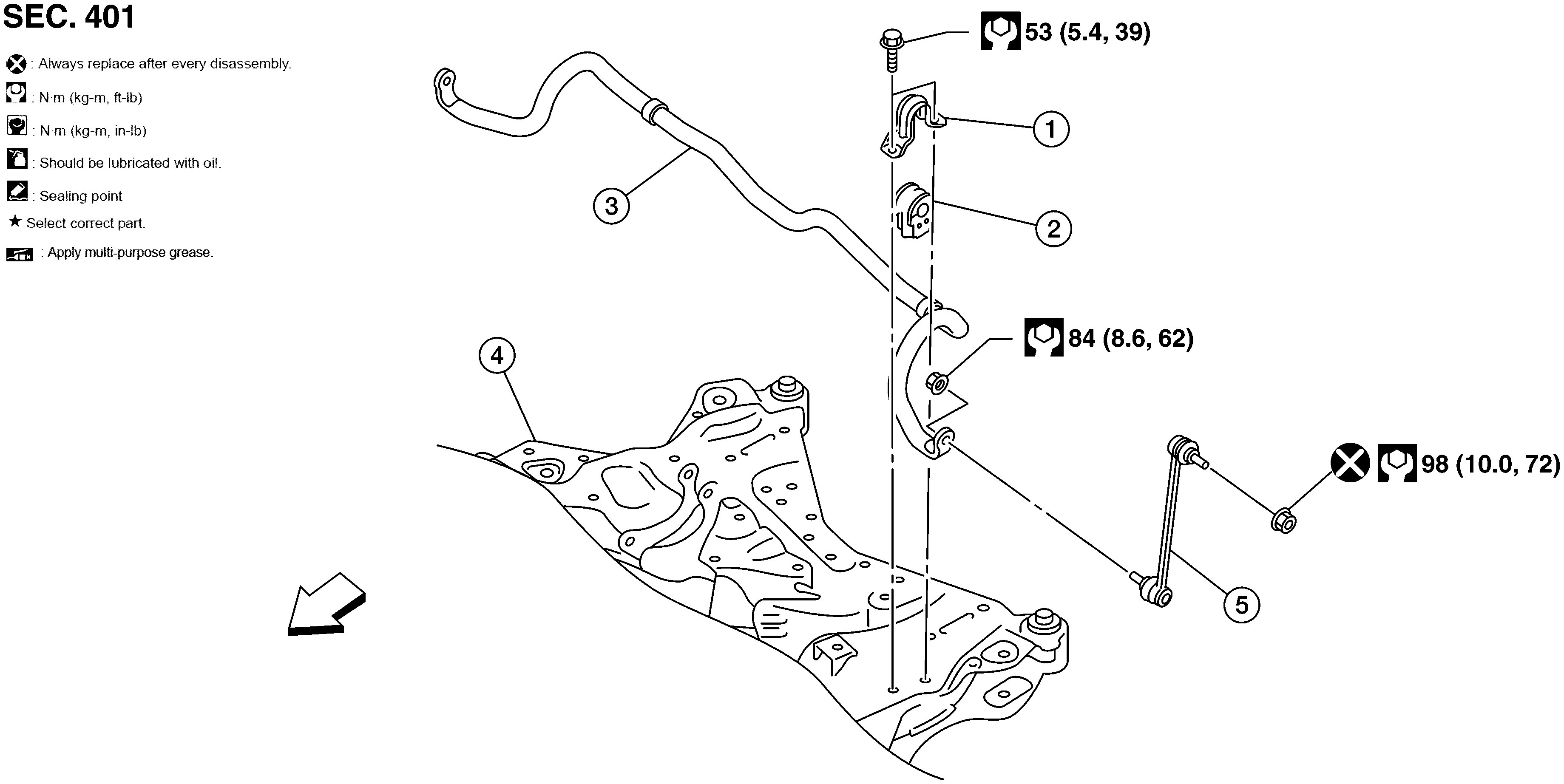

Fig 1: Front Stabilizer Components With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Stabilizer clamp	2.	Stabilizer bushing	3.	Stabilizer bar
4.	Front suspension member	5.	Stabilizer connecting rod		Front
