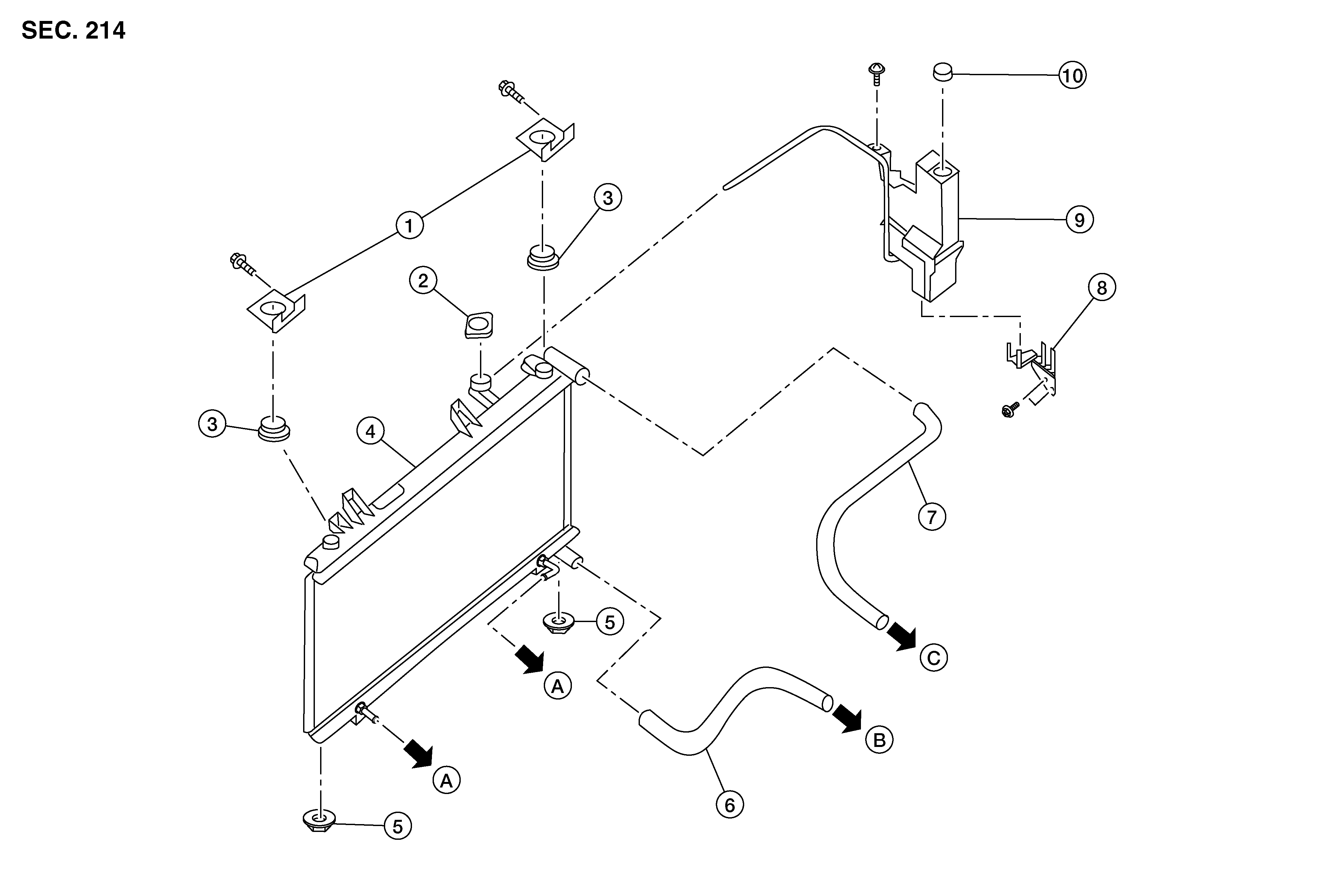

Exploded View
WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Bracket |
2. |
Radiator cap |
3. |
Mounting rubber (upper) |
|
4. |
Radiator |
5. |
Mounting rubber (lower) |
6. |
Radiator hose lower |
|
7. |
Radiator hose upper |
8. |
Bracket |
9. |
Reservoir tank |
|
10. |
Reservoir tank cap |
A. |
To CVT oil warmer hose. Refer to EXPLODED VIEW . |
B. |
To water inlet. Refer to Exploded View . |
|
C. |
To water outlet. Refer to Exploded View . |
