Removal and Installation: Removal

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Before replacing A/T assembly, perform "ADDITIONAL SERVICE WHEN REPLACING TRANSMISSION ASSEMBLY". Refer to Description .
  • When removing the A/T assembly from engine, first remove the crankshaft position sensor (POS) from the A/T assembly.
  • Be careful not to damage sensor edge.
NOTE: When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spilling.
  1. Disconnect the negative battery terminal. Refer to Removal and Installation .
  2. Remove A/T fluid level gauge.
  3. Remove center exhaust tube and main muffler using power tool. Refer to Exploded View .
  4. Remove propeller shaft. Refer to Removal and Installation (3S1355) or Removal and Installation (3S1415).

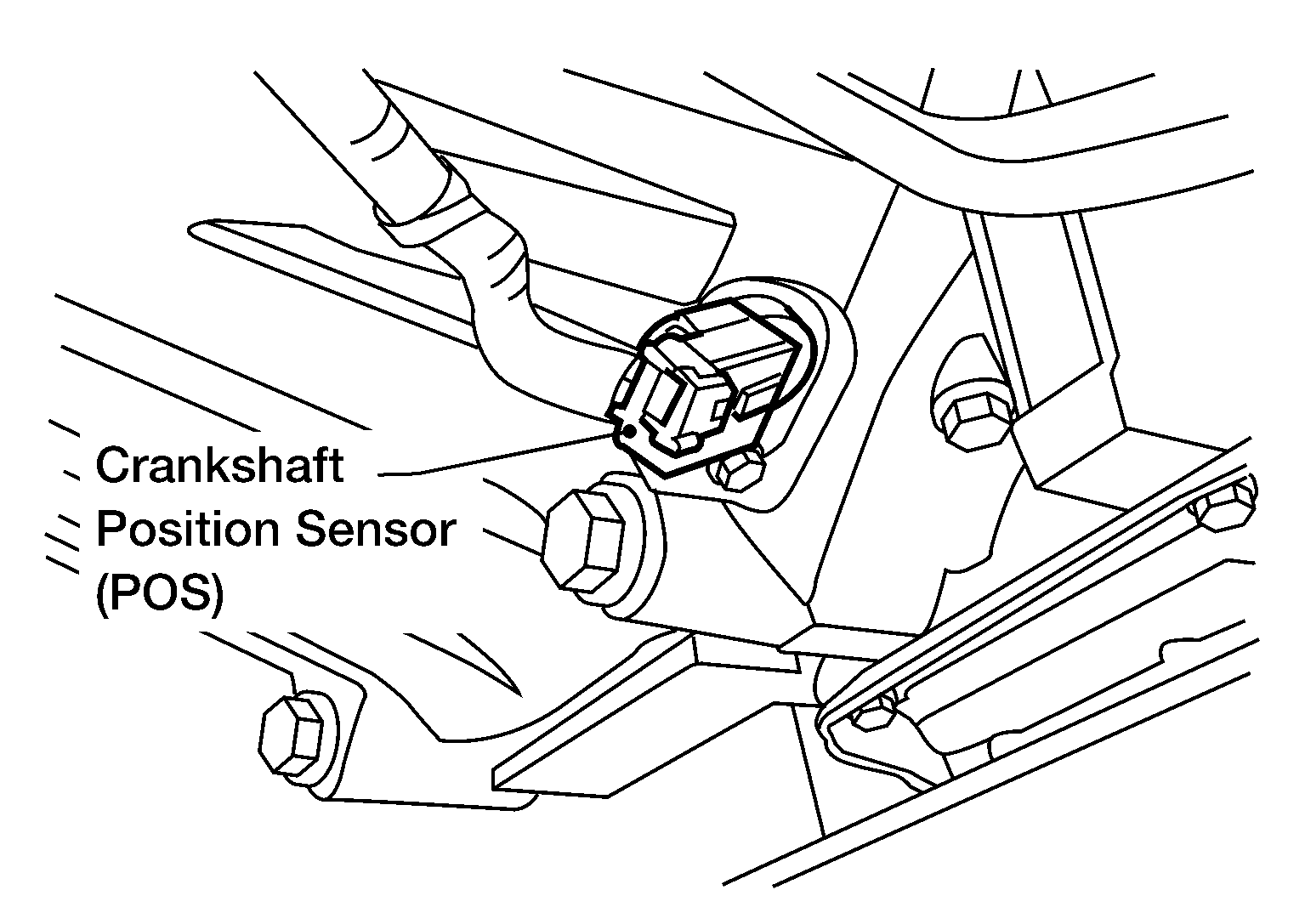

  5. Remove crankshaft position sensor (POS) from A/T assembly.
    G04133637Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION:
    • Do not subject it to impact by dropping or hitting it.
    • Do not disassemble.
    • Do not allow metal filings or foreign material to get on the sensor front edge magnetic area.
    • Do not place in an area affected by magnetism.
  6. Remove harness from retainer clips.
  7. Disconnect A/T harness connector.
  8. Remove front under cover using power tool. Refer to Removal and Installation .
  9. Remove A/T control cable and A/T control cable bracket from the A/T assembly. Refer to Removal and Installation .
  10. Remove A/T fluid cooler tube. Refer to Exploded View .
    CAUTION: Do not reuse copper sealing washers.
  11. Remove the starter assembly. Refer to Removal and Installation .
  12. Remove dust cover from converter housing.
  13. Turn crankshaft to access and remove the four bolts for drive plate and torque converter.
    G04133638Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: When turning crankshaft, turn it clockwise as viewed from the front of the engine.
  14. Support engine and A/T assembly with a transmission jack.
    CAUTION: When setting the transmission jack, be careful not to allow it to collide against the drain plug.
  15. Remove A/T crossmember using power tool.
  16. Remove A/T fluid charging pipe from A/T assembly.
    CAUTION: Do not reuse O-ring.
  17. Tilt the A/T assembly downward to access A/T assembly to engine bolts.
  18. Remove the A/T assembly to engine bolts using power tool.
  19. Remove A/T assembly from vehicle using transmission jack.
    G04075737Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION:
    • Secure torque converter to prevent it from dropping.
    • Secure A/T assembly to a transmission jack.
