Exploded View

WARNING: This page is about a different car, the 2019 Nissan NV3500 HD, 2019 Nissan NV2500 HD, and 2019 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

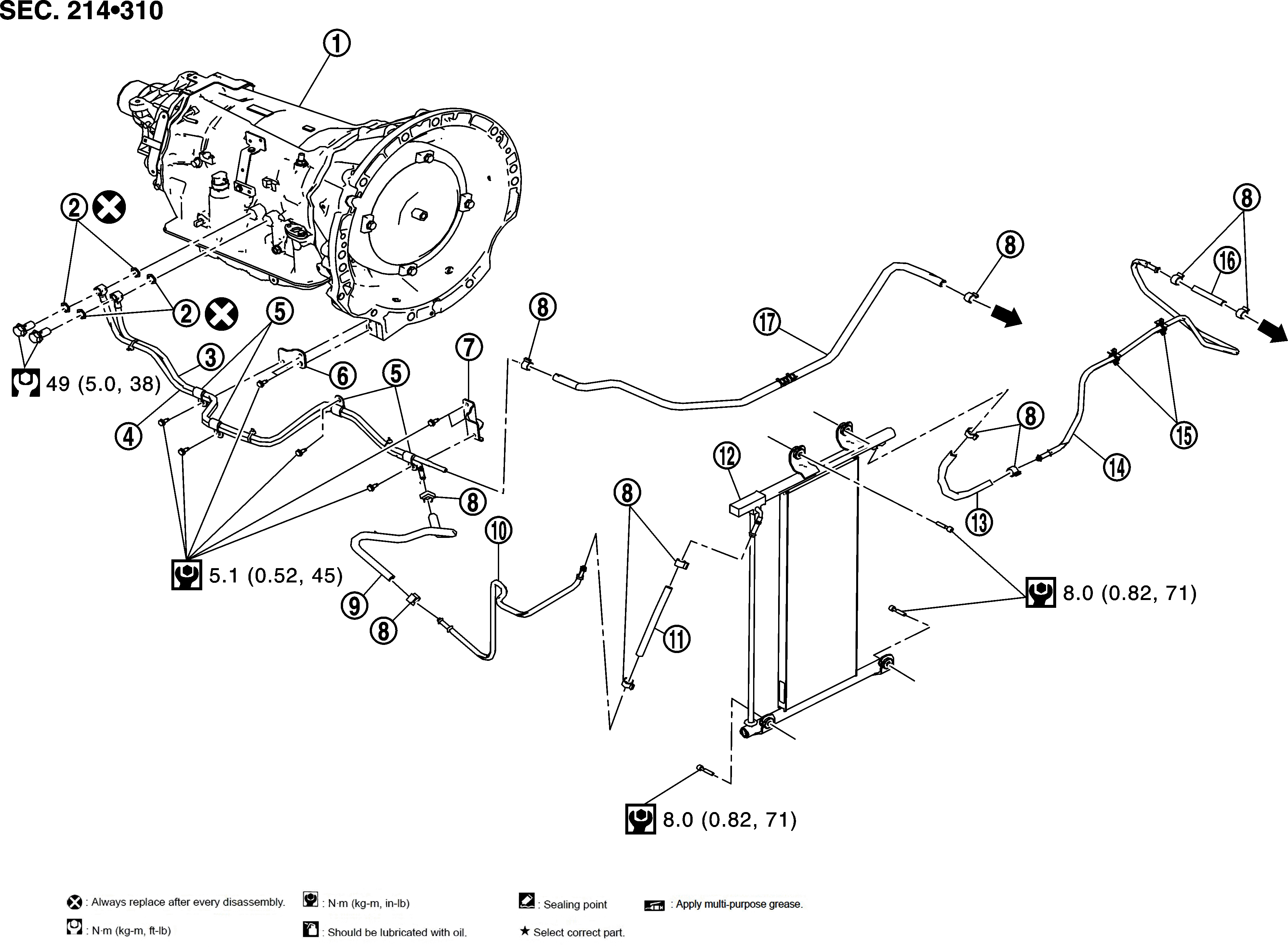

Fig 1: Fluid Cooler System Components With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	A/T assembly	2.	Copper sealing washers	3.	A/T fluid cooler tube A
4.	A/T fluid cooler tube D	5.	Clips	6.	Bracket
7.	Bracket	8.	Hose clamp	9.	A/T fluid cooler hose E
10.	A/T fluid cooler tube C	11.	A/T fluid cooler hose D	12.	A/T fluid cooler
13.	A/T fluid cooler hose C	14.	A/T fluid cooler tube B	15.	Clip
16.	A/T fluid cooler hose B	17.	A/T fluid cooler hose A
: To radiator. Refer to Exploded View .
Refer to Components for symbols in the figure.
