Removal and installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Release fuel pressure from fuel system. Refer to Work Procedure .
  2. Remove instrument lower panel LH. Refer to Removal and Installation .
  3. Remove lower knee protector. Refer to Exploded View .
  4. Loosen clevis lock nut (A) and remove clevis bracket (B) from input rod (C).

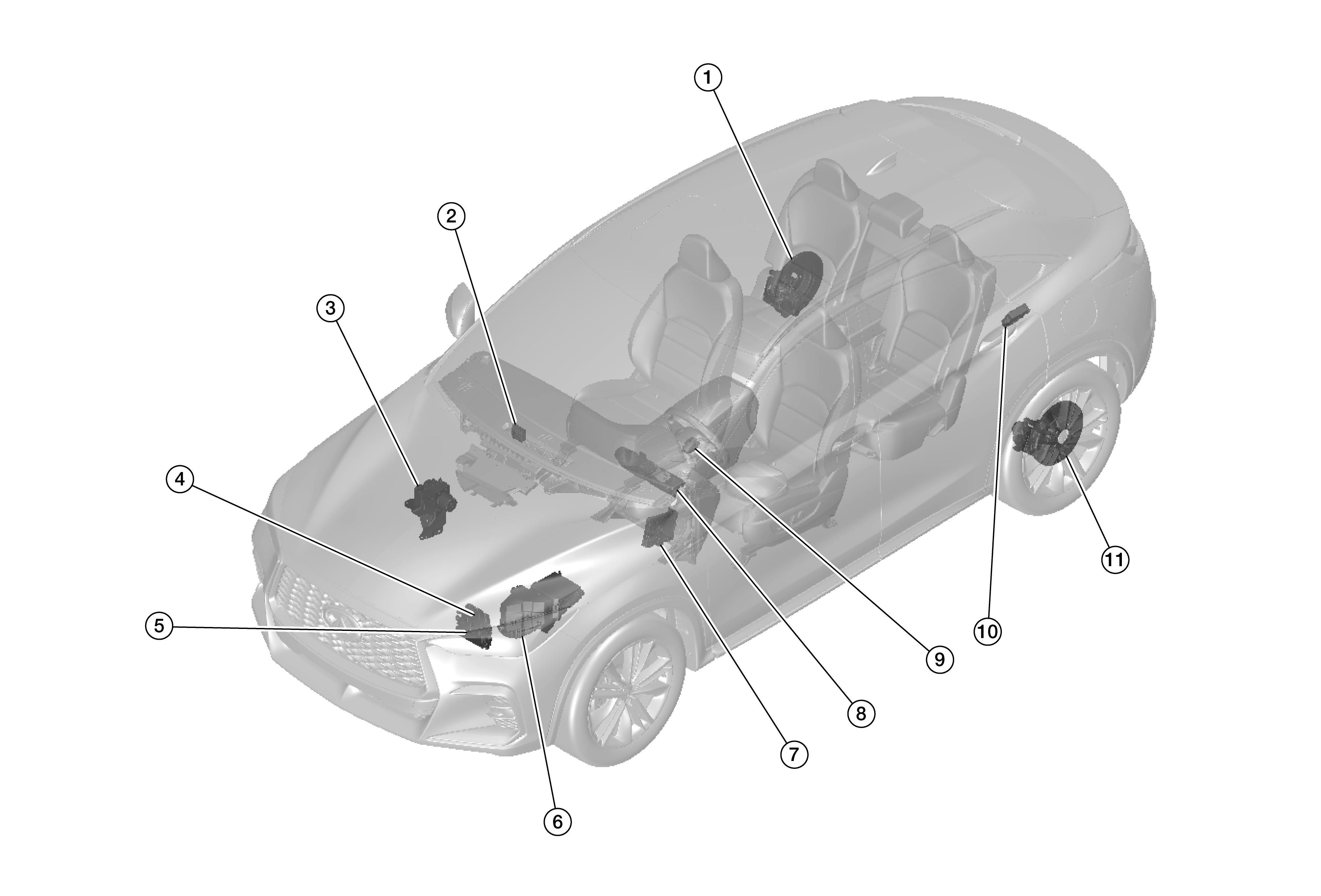

    GNSALFIA0319Z-319Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Front
  5. Disconnect steering column assembly pinch bolt and position steering column assembly aside. Refer to Exploded View .
  6. Remove vacuum hose. Refer to Exploded View .
  7. Remove brake master cylinder. Refer to Removal and Installation .
  8. Disconnect harness connector from brake booster pressure sensor.
  9. Remove brake booster pressure sensor.
  10. Disconnect throttle actuator electrical connector.
  11. Disconnect fuel line main connections. Refer to Quick Connector .
  12. Disconnect harness connector from Intelligent Key® warning buzzer and remove Intelligent Key® warning buzzer from LH strut tower. Refer to Removal and Installation .
  13. Remove cowl top and cowl top extension. Refer to Removal and Installation .
  14. Remove strut tower bar. Refer to Removal and Installation .
  15. Apply protective tape to shaded area (A).

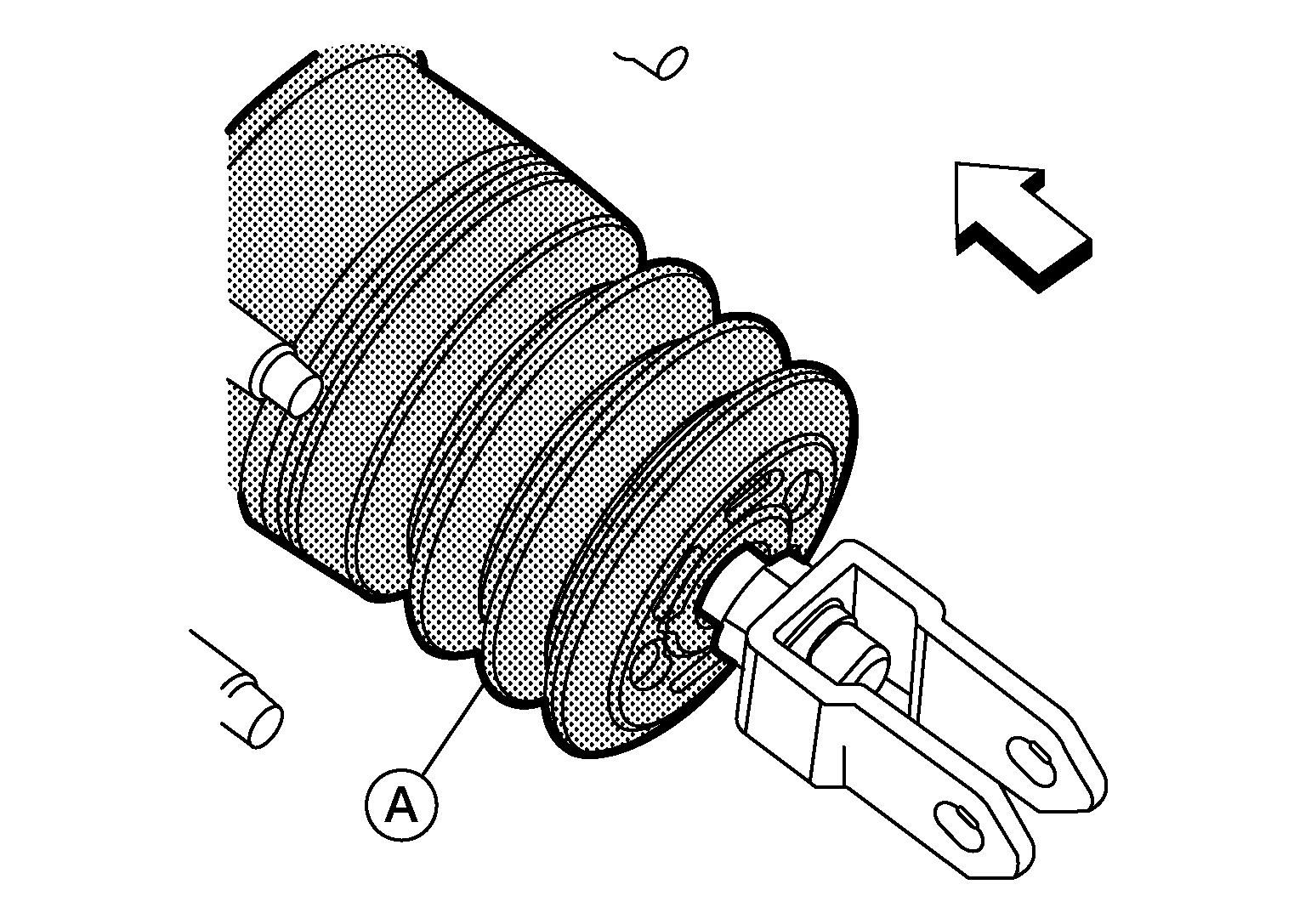

    GNSAWFIA1194Z-194Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Front
  16. Remove brake booster.
  17. Remove and discard brake booster gasket.
    CAUTION: Do not reuse brake booster gasket.
