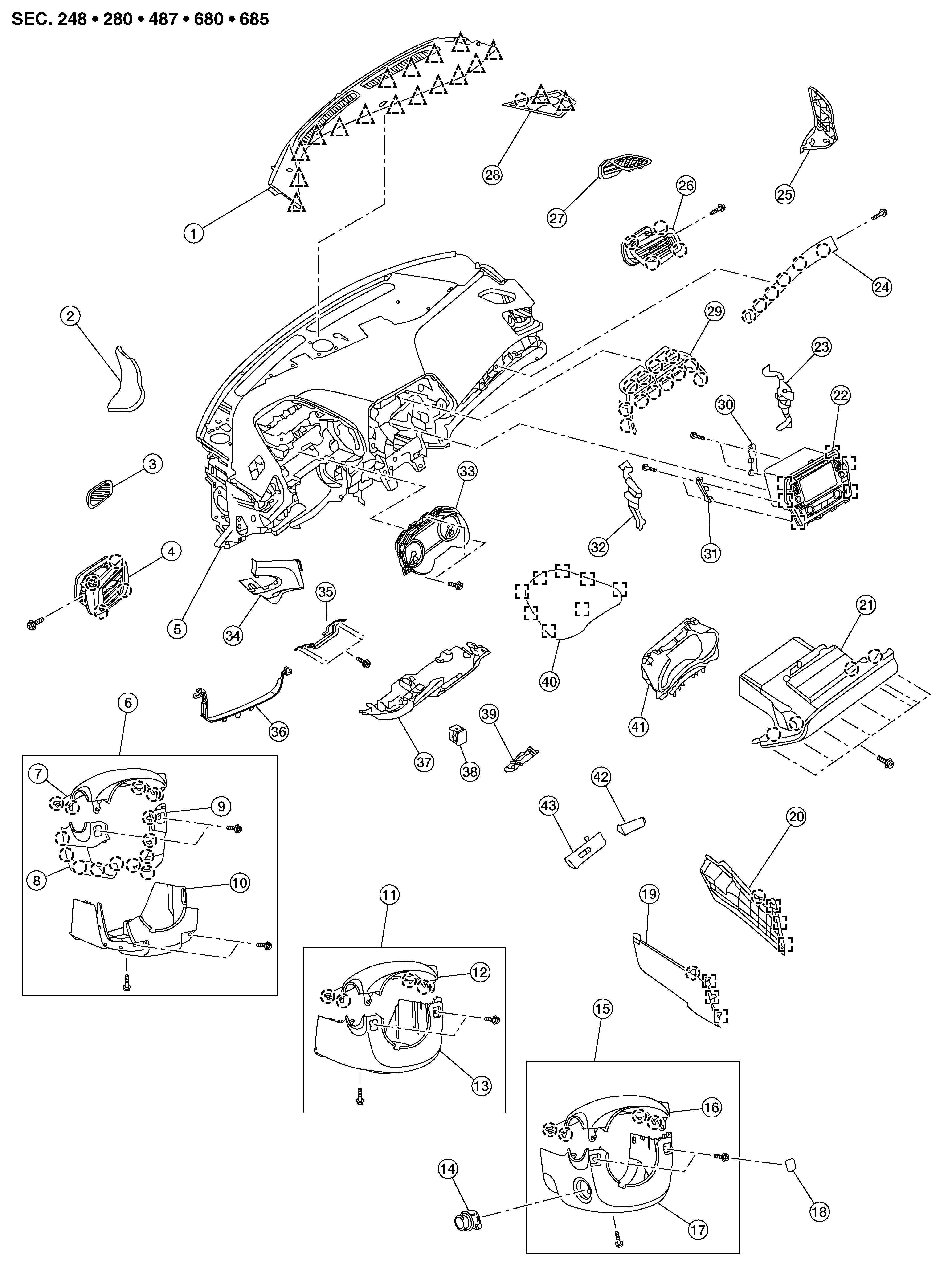

Exploded View

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Defroster grille	2.	Instrument side finisher (LH)	3.	Side defroster grille (LH)
4.	Side ventilator grille (LH)	5.	Instrument panel	6.	Mechanical steering column cover assembly (with paddle shifter)
7.	Steering column upper cover (with paddle shifter)	8.	Steering column side finisher [LH (with paddle shifter)]	9.	Steering column side finisher [RH (with paddle shifter)]
10.	Steering column lower cover (with paddle shifter)	11.	Mechanical steering column cover assembly (without paddle shifter)	12.	Steering column upper cover (without paddle shifter)
13.	Steering column lower cover (without paddle shifter)	14.	ADP steering switch	15.	Electric steering column cover assembly (without paddle shifter)
16.	Steering column upper cover (without paddle shifter)	17.	Steering column lower cover (without paddle shifter)	18.	Steering column cover mask
19.	Console lower cover (LH)	20.	Console lower cover (RH)	21.	Glove box assembly
22.	AV control unit	23.	AV control unit bracket (RH)	24.	Instrument finisher B
25.	Instrument side finisher (RH)	26.	Side ventilator grille (RH)	27.	Side defroster grille (RH)
28.	Tweeter speaker grille (RH)	29.	Center ventilator finisher	30.	AV control unit finisher (RH)
31.	AV control unit finisher (LH)	32.	AV control unit bracket (LH)	33.	Combination meter
34.	Instrument finisher D	35.	Lower knee protector	36.	Instrument center lower finisher
37.	Instrument lower panel LH	38.	Switch hole mask	39.	Fuse block cover
40.	Meter cover	41.	Cluster lid A	42.	Instrument finisher C
43.	Instrument finisher A		Pawl		Metal clip
	Clip
