Exploded View
WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

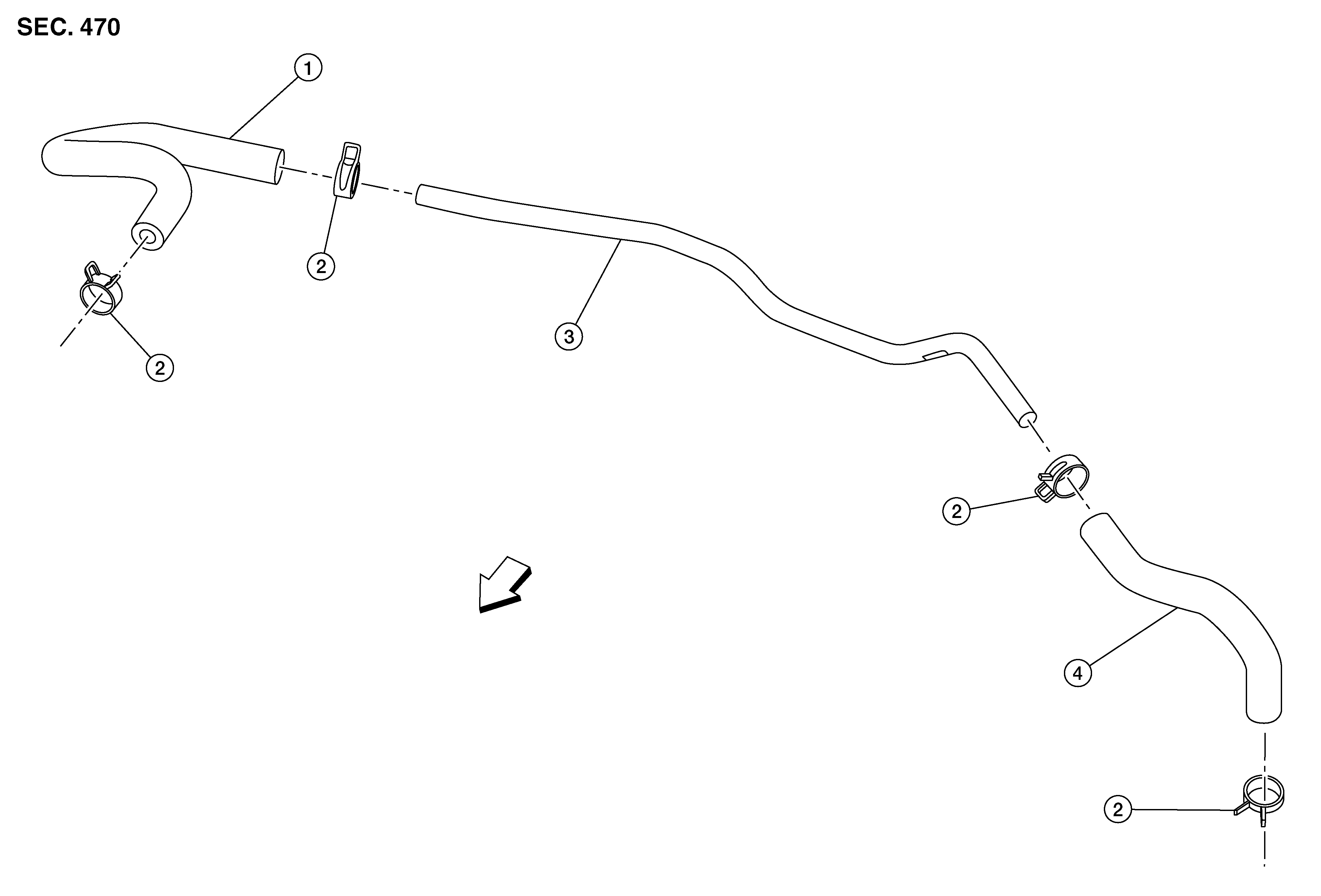

Courtesy of NISSAN NORTH AMERICA, INC.
|
1.
|
Vacuum hose
|
2.
|
Clamp
|
3.
|
Vacuum piping
|
|
4.
|
Vacuum hose
|
|
Front
|

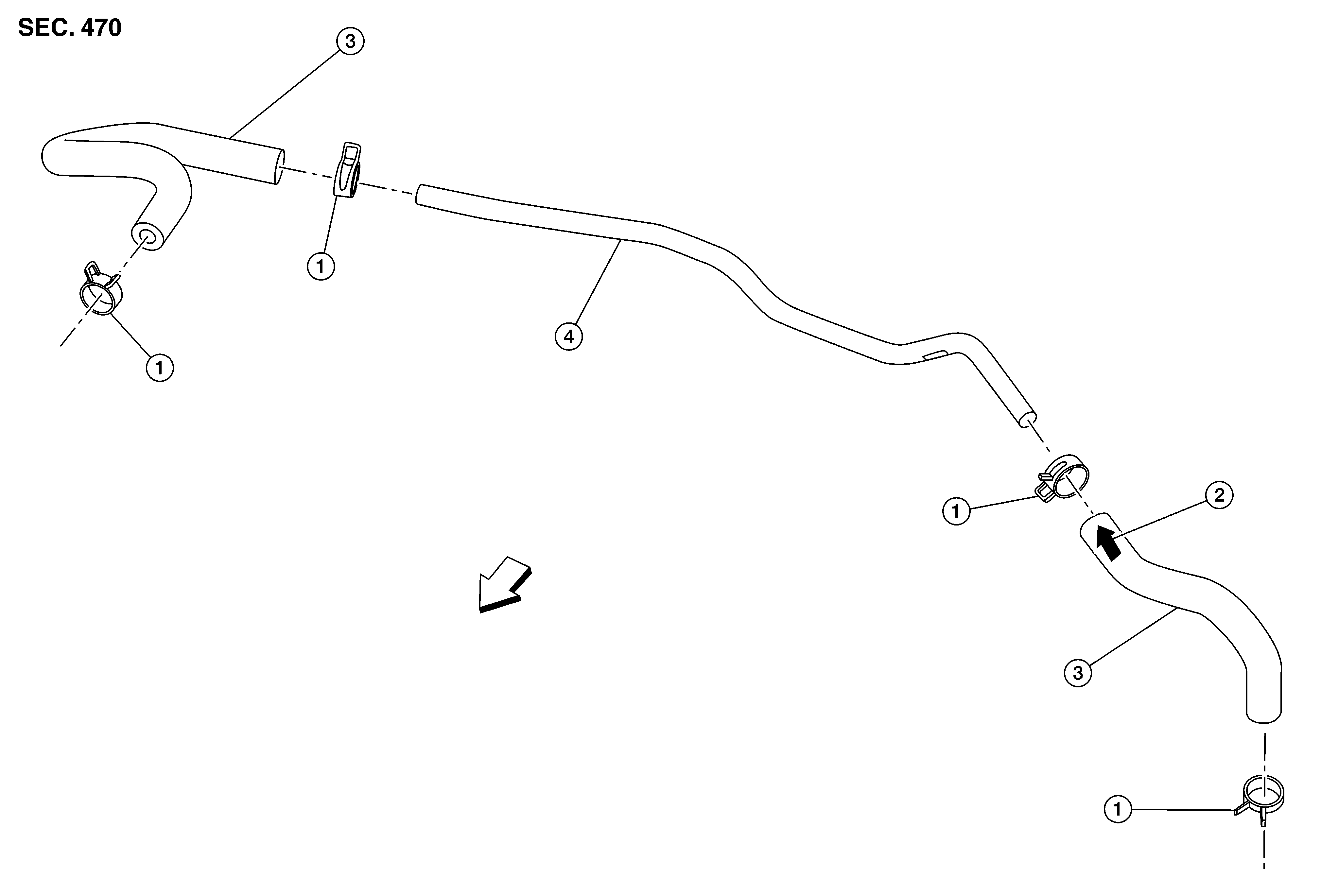

Courtesy of NISSAN NORTH AMERICA, INC.
|
1.
|
Clamp
|
2.
|
Check valve direction stamp
|
3.
|
Vacuum hose
|
|
4.
|
Vacuum piping
|
|
Front
|
