Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Do not damage spline, companion flange and front oil seal when removing propeller shaft.
  • Before removing final drive assembly or rear axle assembly, disconnect ABS sensor harness connector from the assembly and move it away from final drive/rear axle assembly area. Failure to do so may result in sensor wires being damaged and sensor becoming inoperative.
  1. Disconnect the propeller shaft from the rear final drive assembly and support the propeller shaft with suitable wire. Refer to Exploded View .
  2. Disconnect the rear final drive air breather hose from the rear final drive assembly.

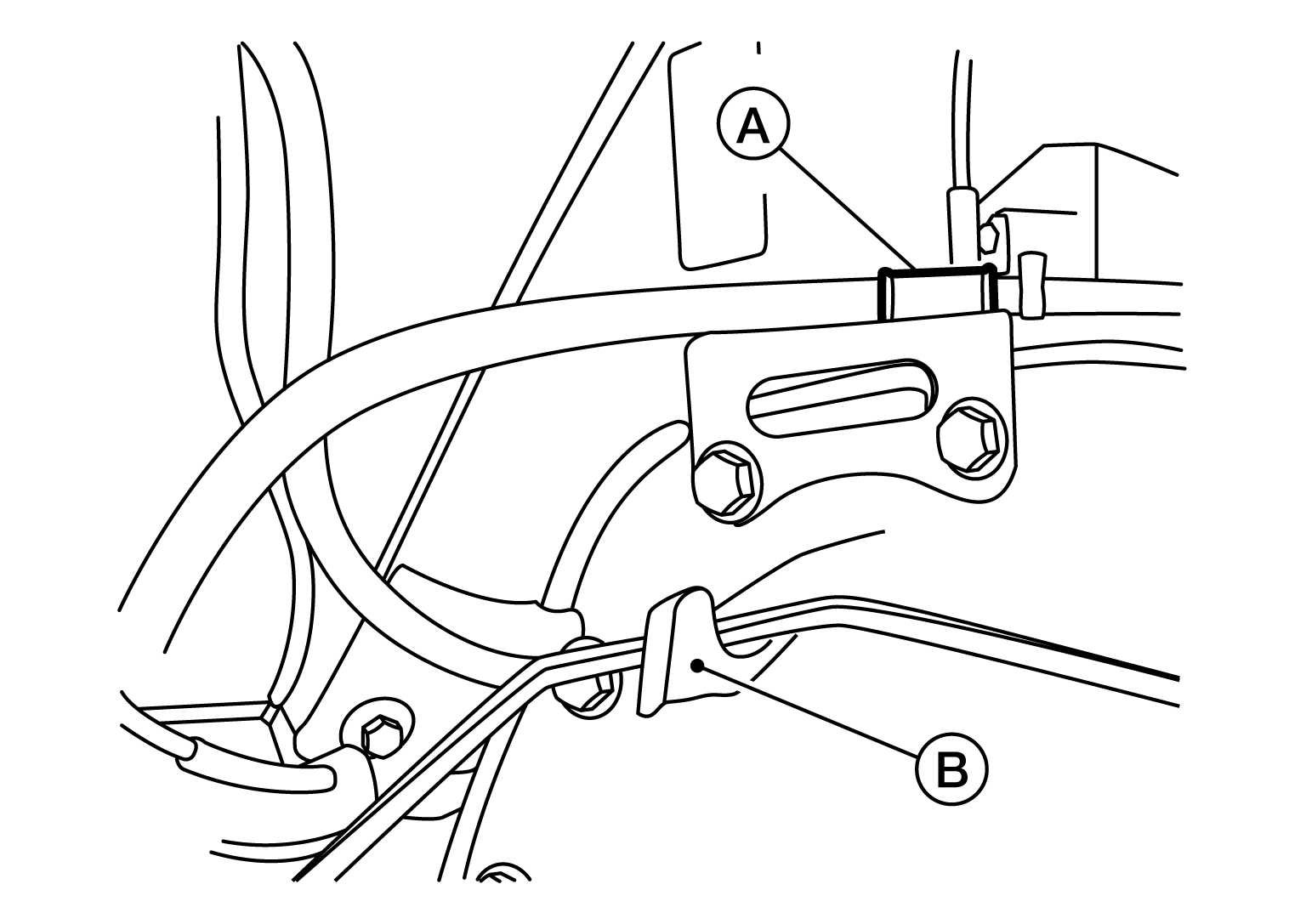

  3. Disconnect the following components from the rear final drive assembly.
  4. Remove the rear stabilizer bar. Refer to Exploded View .
  5. Support rear final drive assembly using a suitable jack.
    CAUTION: Secure rear final drive assembly to jack while removing it.
  6. Remove rear shock absorber lower bolts. Refer to Removal and Installation .
  7. Remove leaf spring U-bolt nuts. Refer to Removal and Installation .
  8. Remove rear final drive assembly.
    CAUTION: Secure rear final drive assembly to the jack while removing it.
