Exploded View

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

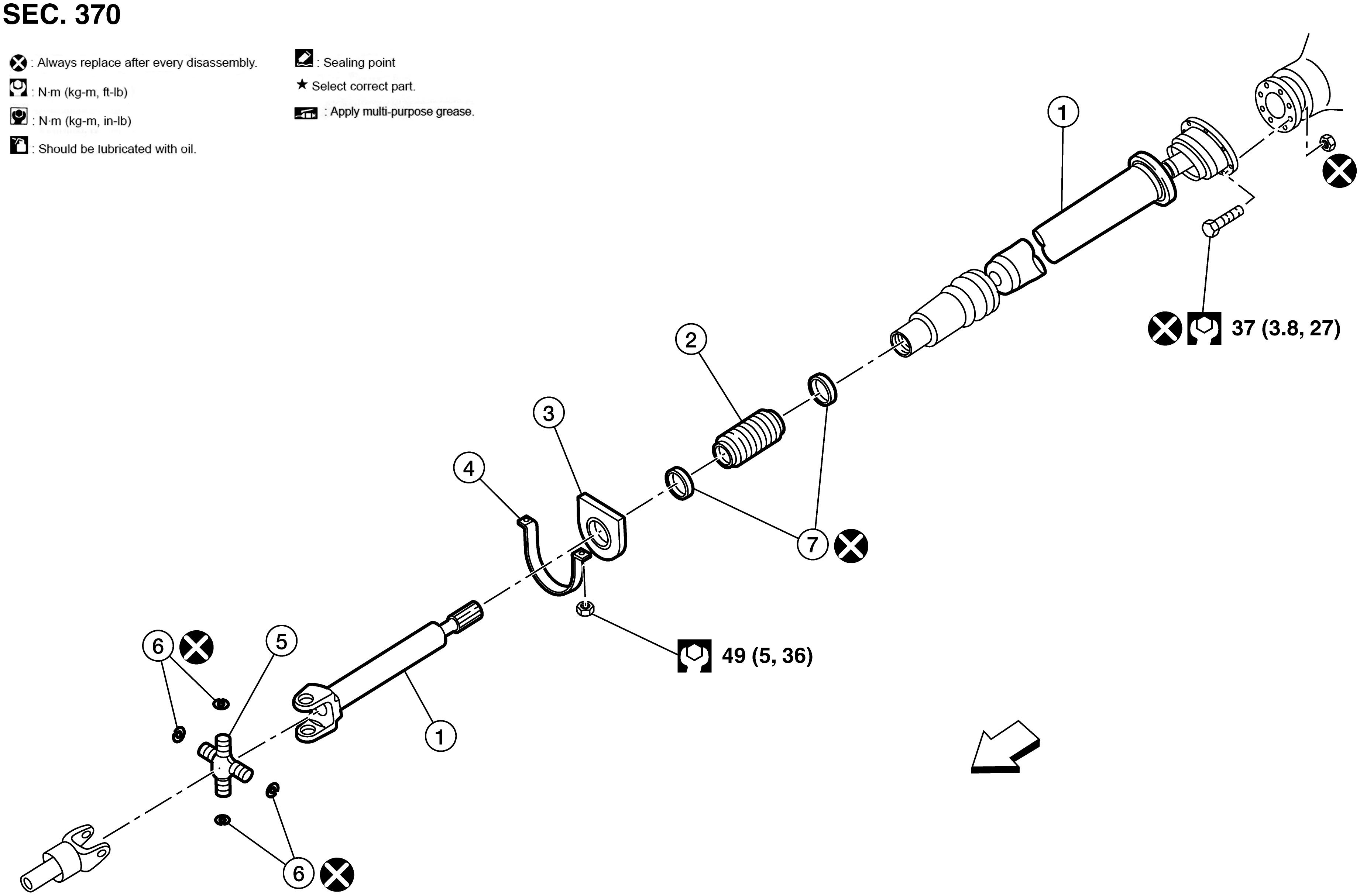

Fig 1: Rear Propeller Shaft 3F(2CVJ) With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Propeller shaft tube	2.	CVJ Boot	3.	Center support bearing
4.	Center support bearing bracket	5.	Journal assembly	6.	Snap rings
7.	Clamps		Front
	: Always replace after every disassembly
	: N.m (kg-m, ft-lb)

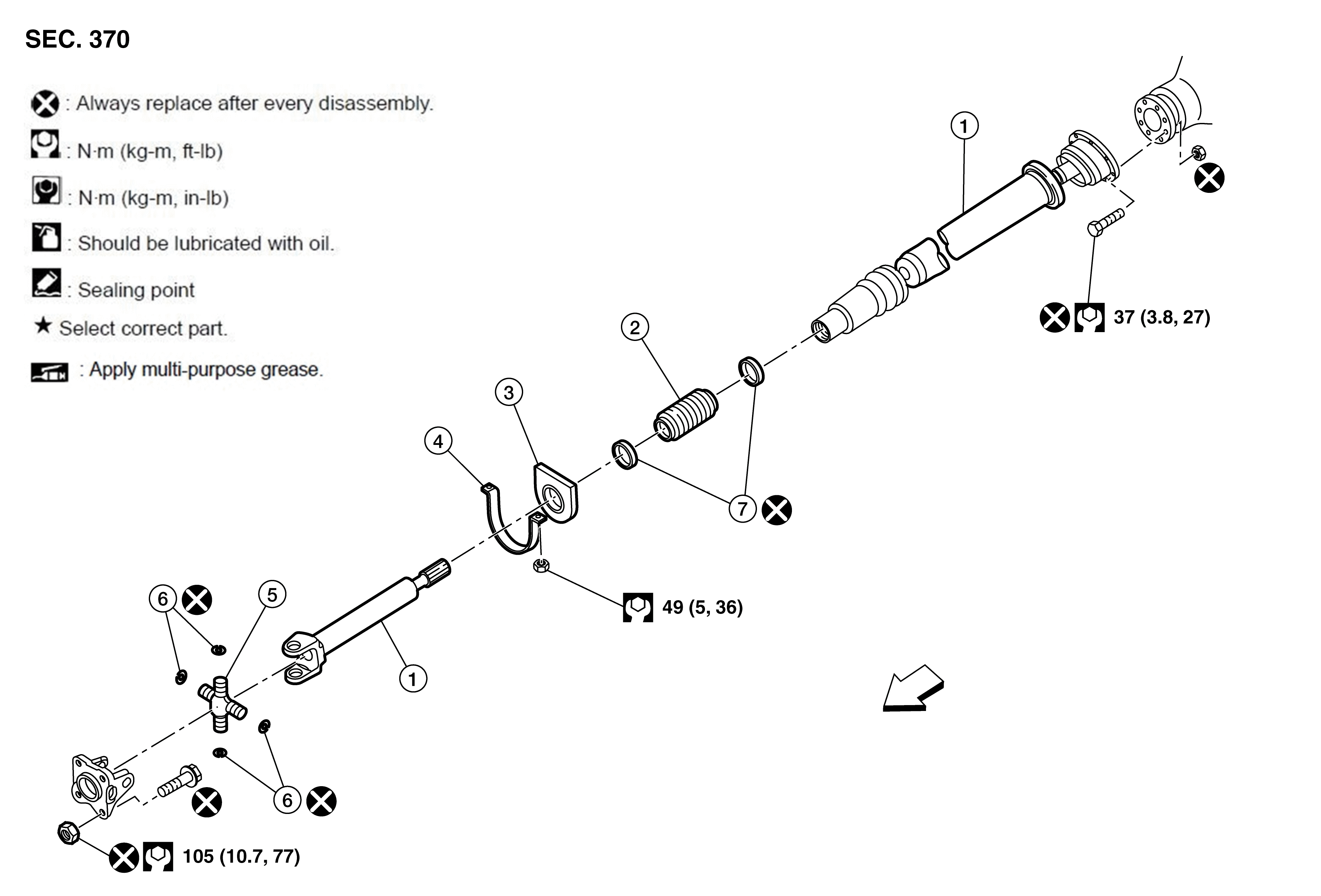

Fig 2: Rear Propeller Shaft 3S(2CVJ) With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Propeller shaft tube	2.	Boot	3.	Center support bearing
4.	Center support bearing bracket	5.	Journal assembly	6.	Snap rings
7.	Clamps		Front
	: Always replace after every disassembly
	: N.m (kg-m, ft-lb)
