Exploded View

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

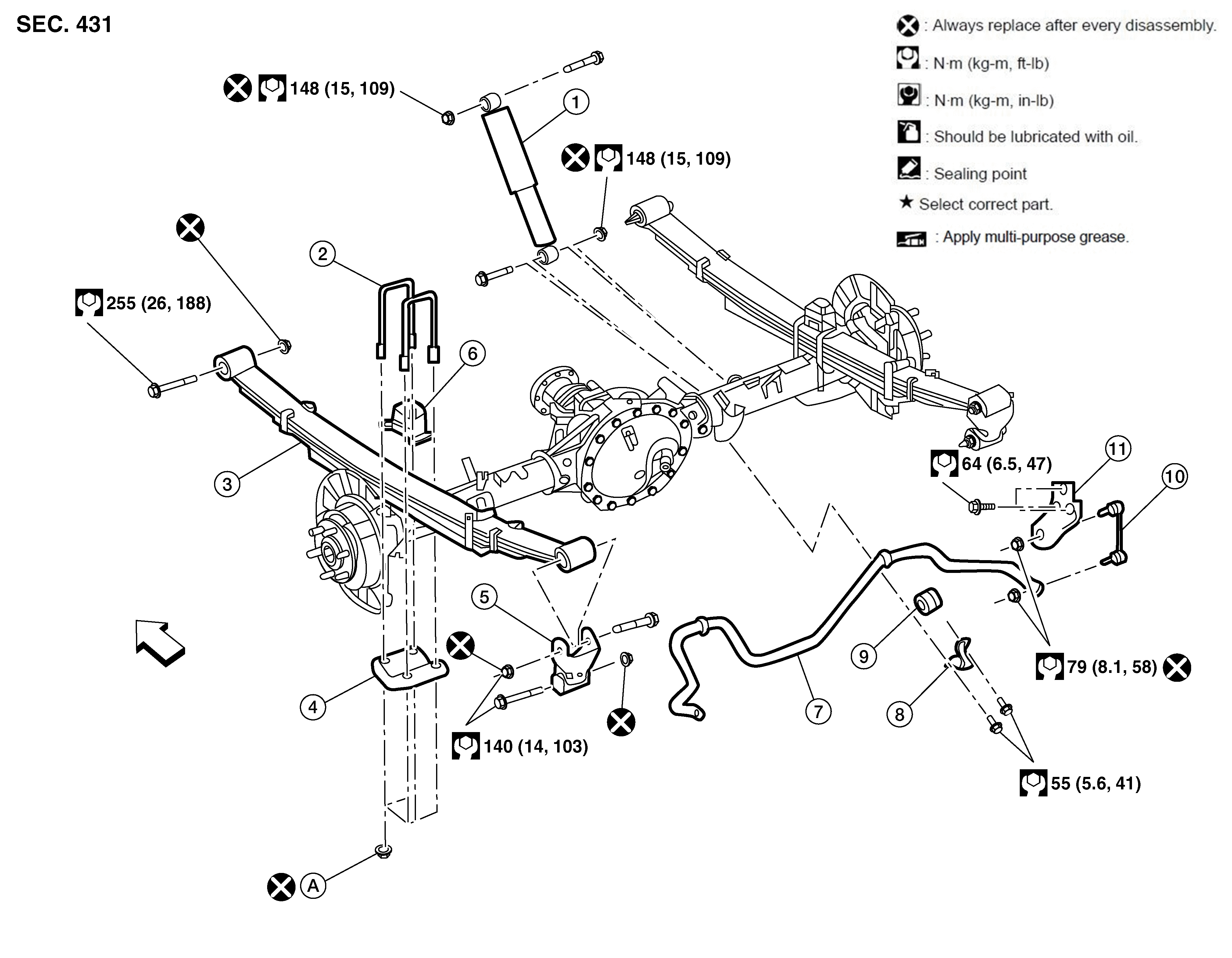

Fig 1: Leaf Spring Replacement Components With Torque Specifications (XD Models)

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Rear shock absorber	2.	Rear leaf spring U-bolts	3.	Rear leaf spring
4.	Rear leaf spring lower seat	5.	Rear leaf spring shackle	6.	Rear leaf spring seat/bumper
7.	Rear stabilizer	8.	Rear stabilizer clamp	9.	Rear stabilizer bushing
10.	Rear stabilizer connecting rod	11.	Rear stabilizer bracket
A.	Refer to INSTALLATION.		Front

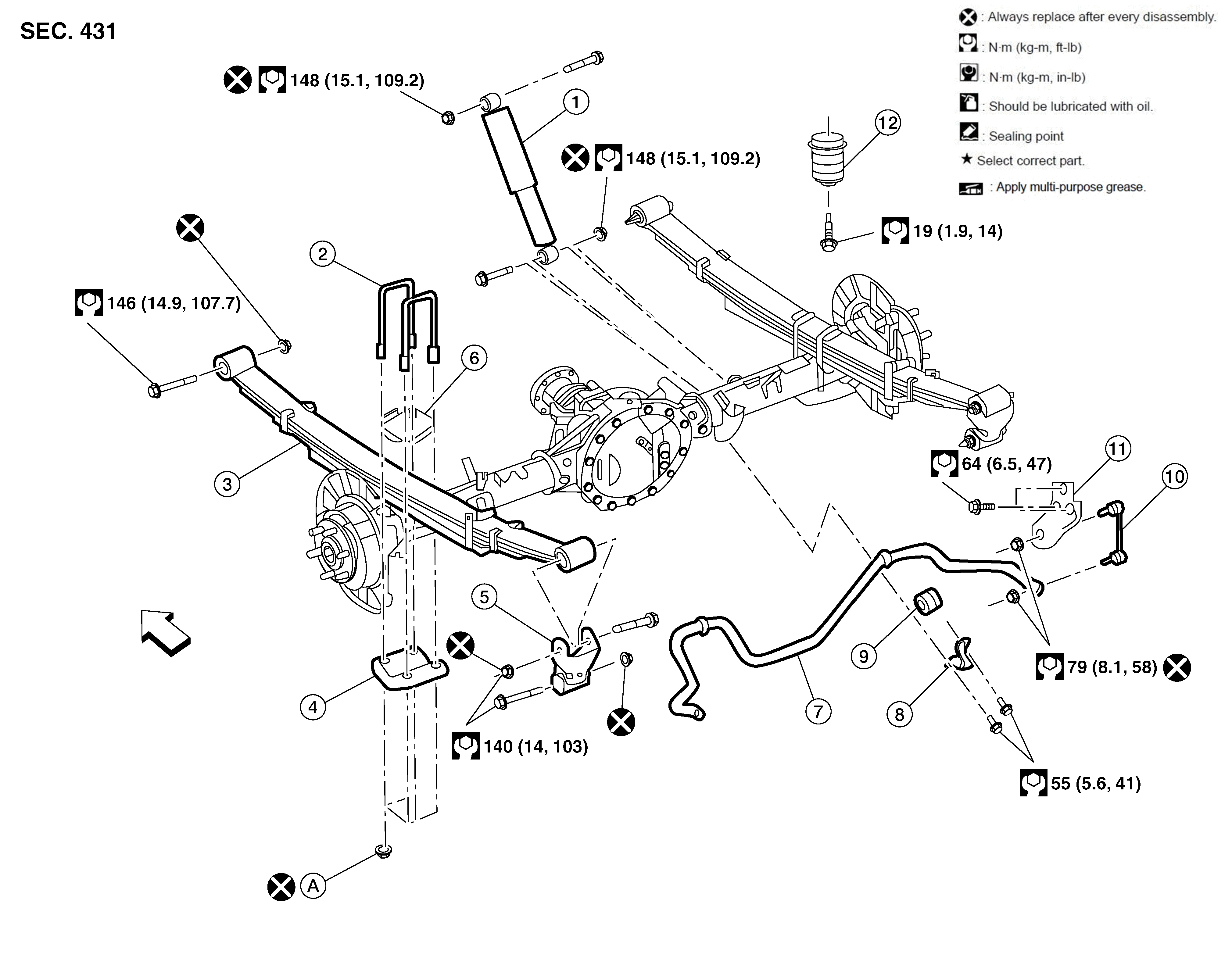

Fig 2: Leaf Spring Replacement Components With Torque Specifications (Non-XD Models)

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Rear shock absorber	2.	Rear leaf spring U-bolts	3.	Rear leaf spring
4.	Rear leaf spring lower seat	5.	Rear leaf spring shackle	6.	Rear leaf spring upper seat
7.	Rear stabilizer	8.	Rear stabilizer clamp	9.	Rear stabilizer bushing
10.	Rear stabilizer connecting rod	11.	Rear stabilizer bracket	12.	Rear bumper
A.	Refer to INSTALLATION.		Front
