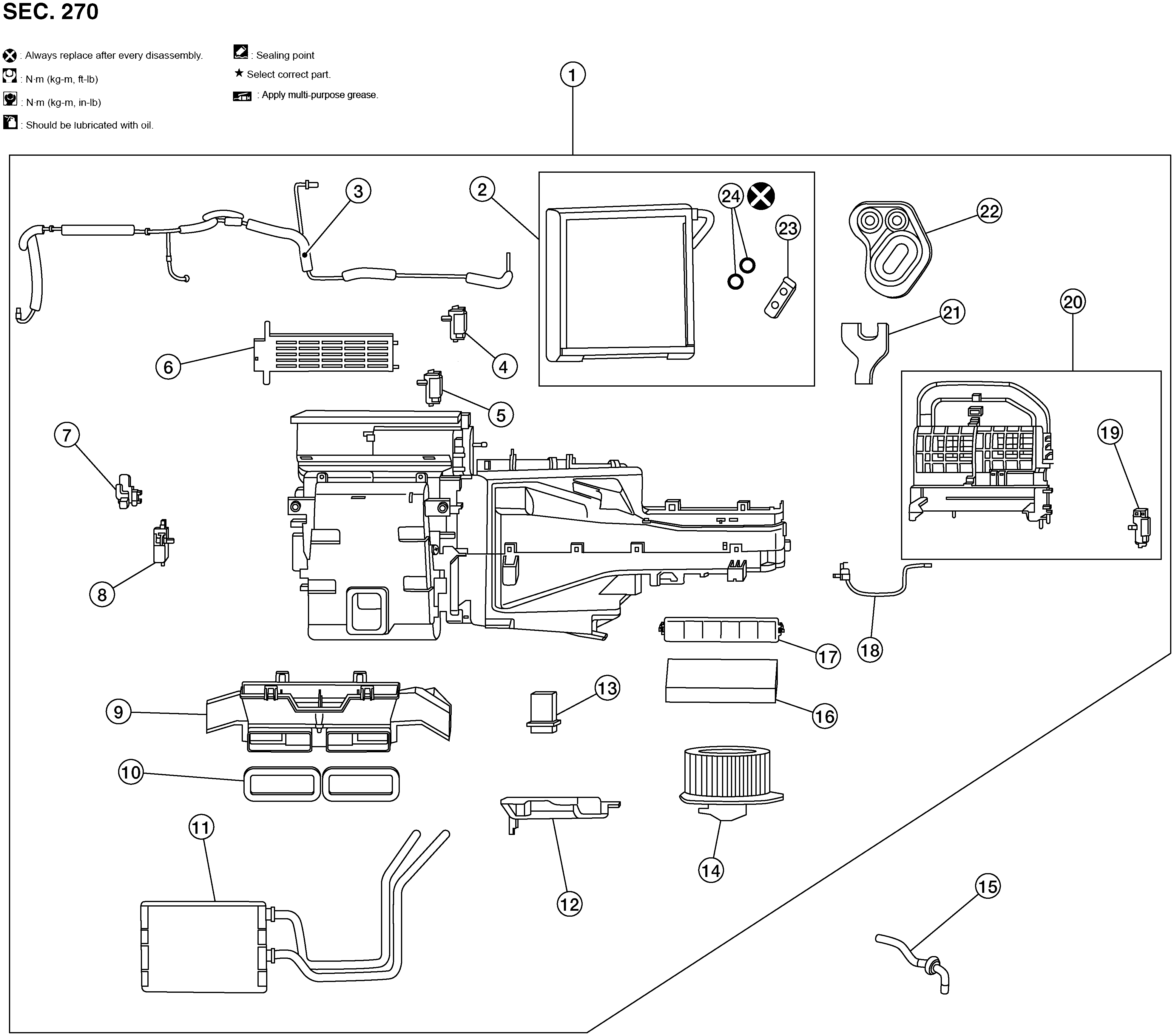

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Heating and cooling unit assembly |
2. |
Evaporator assembly |
3. |
Heating and cooling unit assembly harness |
|
4. |
Mode door motor |
5. |
Air mix door motor (manual air conditioner), Air mix door motor RH (automatic air conditioner) |
6. |
PTC heater (for CUMMINS 5.0L) |
|
7. |
Aspirator |
8. |
Air mix door motor LH (automatic air conditioner) |
9. |
Foot duct |
|
10. |
Duct seal (RH/LH) |
11. |
Heater core |
12. |
Heater core cover |
|
13. |
Variable blower control |
14. |
Blower motor |
15. |
Drain hose |
|
16. |
In-cabin microfilter |
17. |
In-cabin microfilter cover |
18. |
Intake sensor |
|
19. |
Intake door motor |
20. |
Intake assembly |
21. |
Heater core bracket |
|
22. |
Grommet |
23. |
Expansion valve |
24. |
O-rings |
