Exploded View
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

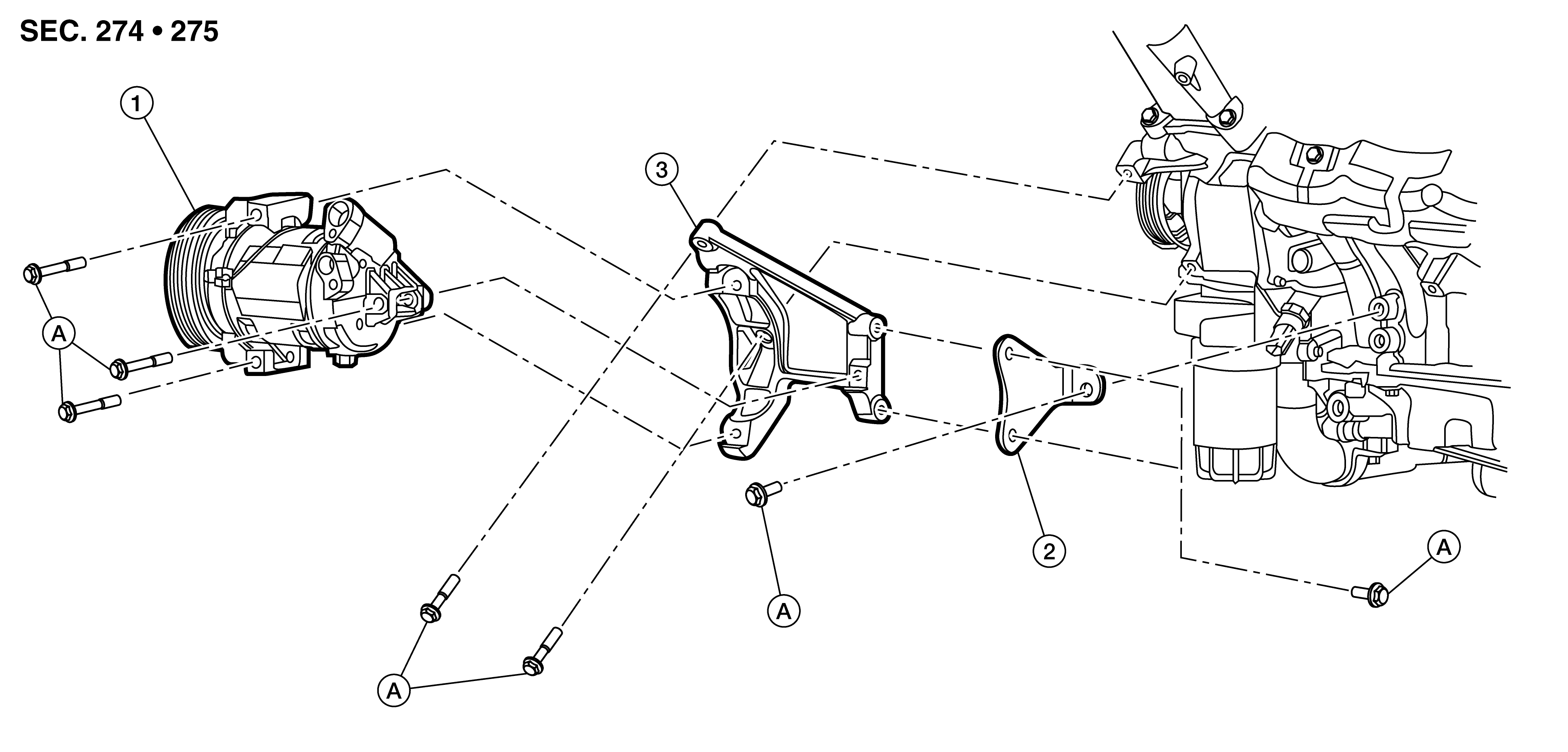

Cummins 5.0L
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
1.
|
Compressor
|
2.
|
Compressor support
|
3.
|
Compressor bracket
|
|
A.
|
Refer to INSTALLATION
|

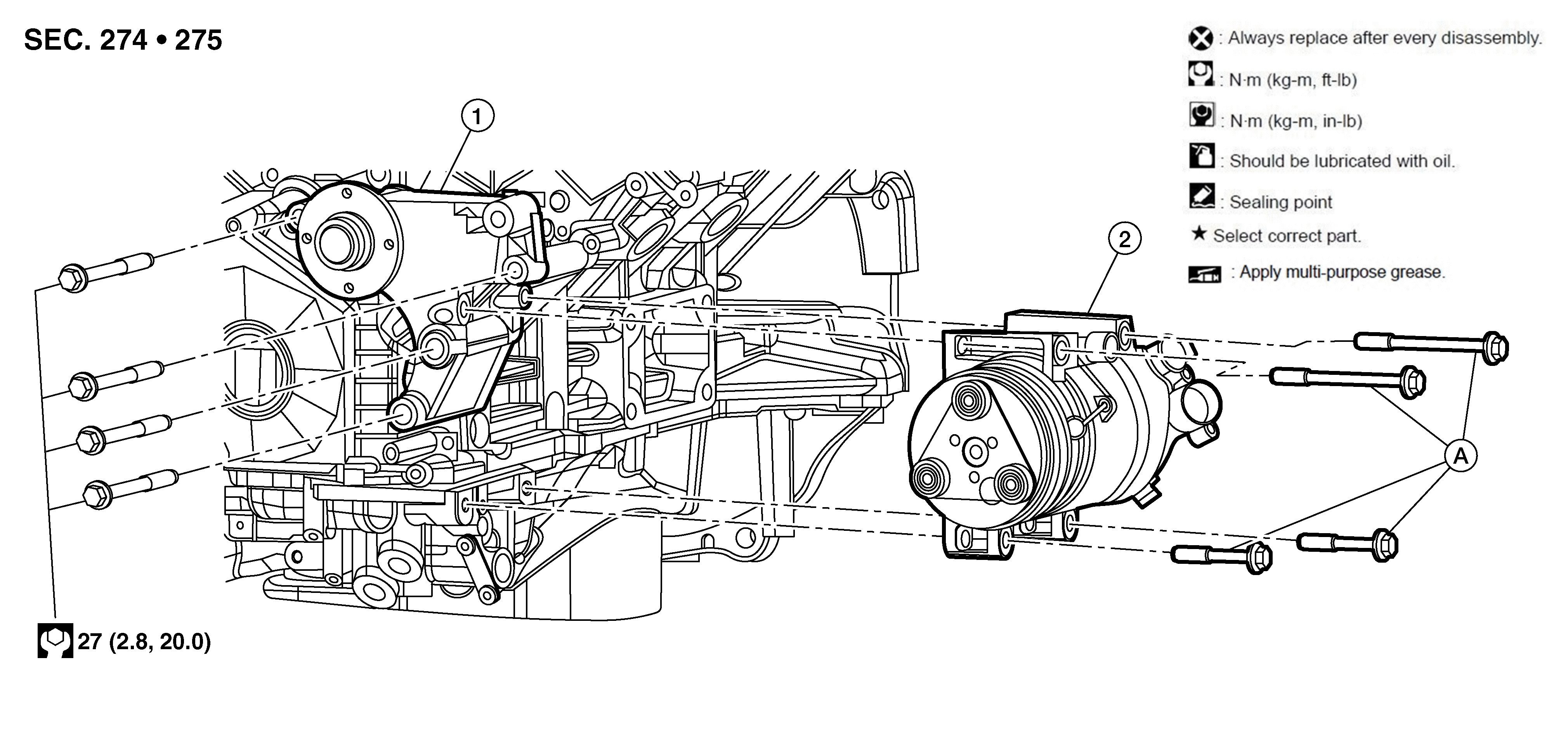

VK56VD
Courtesy of NISSAN NORTH AMERICA, INC.
|
1.
|
Fan bracket
|
2.
|
Compressor
|
A.
|
Refer to INSTALLATION
|
