Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain engine coolant. Refer to Changing Engine Coolant .
  2. Remove front under cover. Refer to Removal and Installation .
  3. Remove fan shroud (lower). Refer to Exploded View .
  4. Remove clips (A) connecting the front air guide [lower (2)] to the fan shroud [upper (1)].
    GNSALBIA2978Z-978Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Front
  5. Release clips using suitable tool, then remove radiator core support cover.
  6. Disconnect reservoir tank hose from water inlet and the radiator overflow hose from the radiator.
  7. Disengage reservoir tank hoses from fan shroud (upper).
  8. Remove reservoir tank bolts and reservoir tank (XD Models only). Refer to Exploded View .
  9. Remove fan shroud (upper) using the following procedure:
    1. Disengage A/T fluid cooler hose D and A/T fluid cooler hose C from fan shroud (upper). Refer to Exploded View - Non-XD Models .
    2. Remove fan shroud (upper) bolts and remove fan shroud (upper).
  10. Remove cooling fan.
  11. Remove drive belt (if necessary). Refer to Removal and Installation .
  12. Disconnect fan coupling harness connector (if necessary).
  13. Disconnect cooling fan harness bracket from fan coupling and remove bolt and cooling fan harness bracket (if necessary).
  14. Remove fan coupling (if necessary).
    NOTE: After fan coupling is removed. Refer to Inspection .
  15. Remove cooling fan pulley (if necessary).
  16. Remove the cooling fan bracket using the following procedure (if necessary):

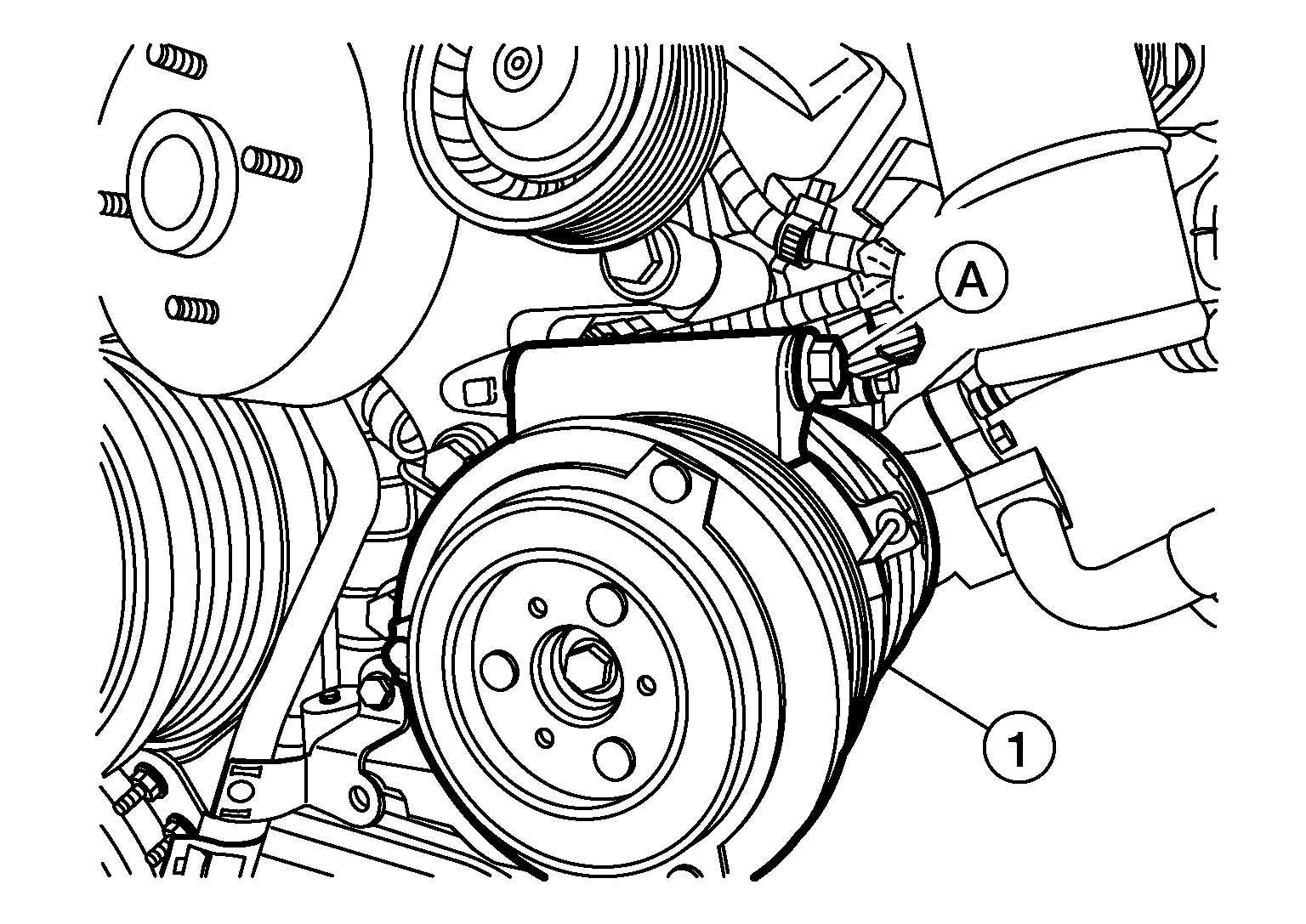

    • Remove bolt (A) from A/C compressor (1).
      GNSALBIA2981Z-981Courtesy of NISSAN NORTH AMERICA, INC.
    • Remove idler pulley. Refer to Exploded View .
    • Remove cooling fan bracket bolts and remove cooling fan bracket.
