Exploded View

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

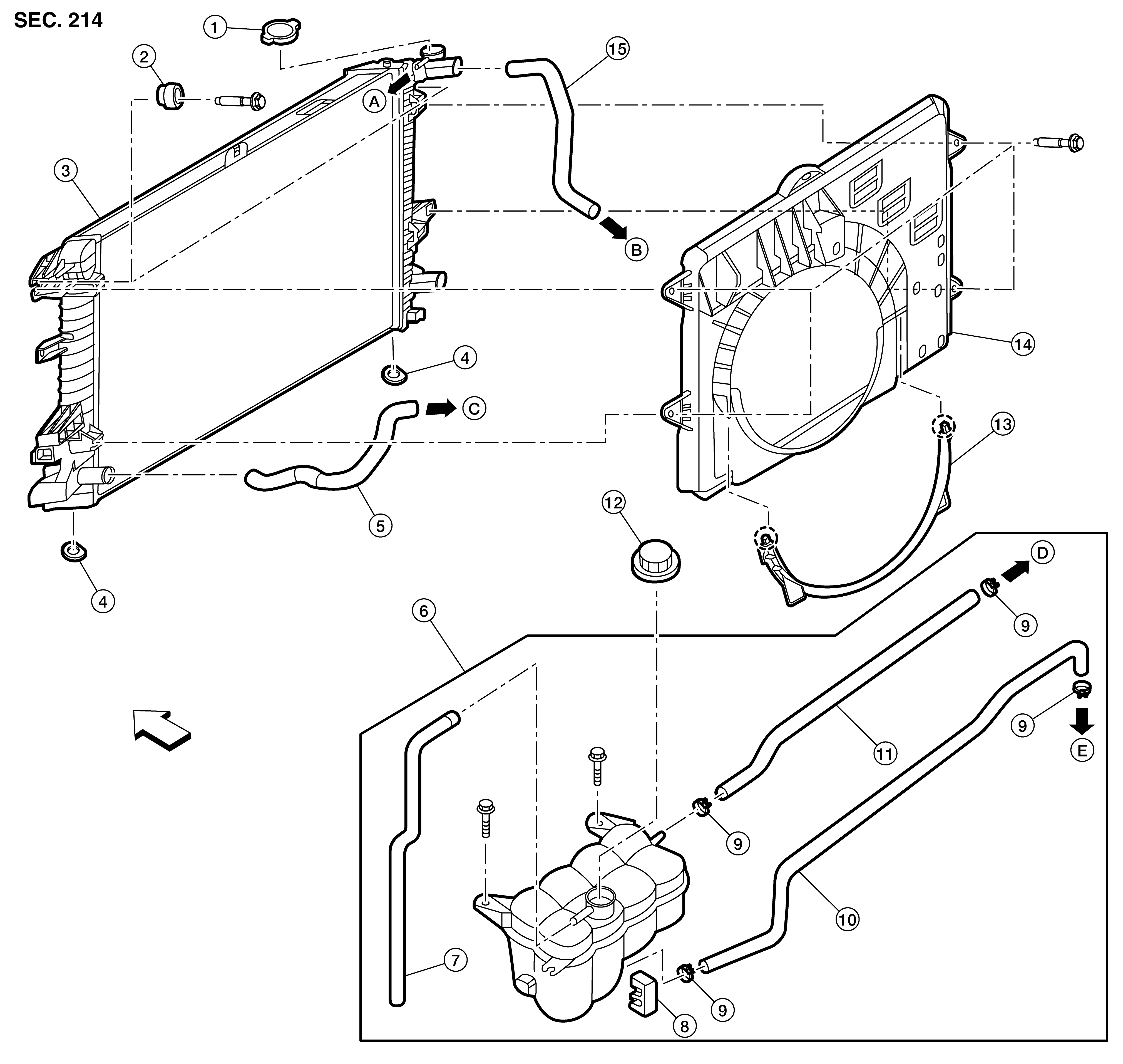

Fig 1: XD Models

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Radiator cap	2.	Mounting rubber (upper)	3.	Radiator
4.	Mounting rubber (lower)	5.	Radiator hose (lower)	6.	Reservoir tank
7.	Reservoir tank overflow hose	8.	Clip	9.	Clamp
10.	Reservoir tank hose	11.	Radiator overflow hose	12.	Reservoir tank cap
13.	Fan shroud (lower)	14.	Fan shroud (upper)	15.	Radiator hose (upper)
A.	To radiator overflow hose	B.	To multi control valve. Refer to Exploded View .	C.	To water suction pipe. Refer to Exploded View .
D.	To radiator	E.	To multi control valve. Refer to Exploded View .		Pawl
	Front

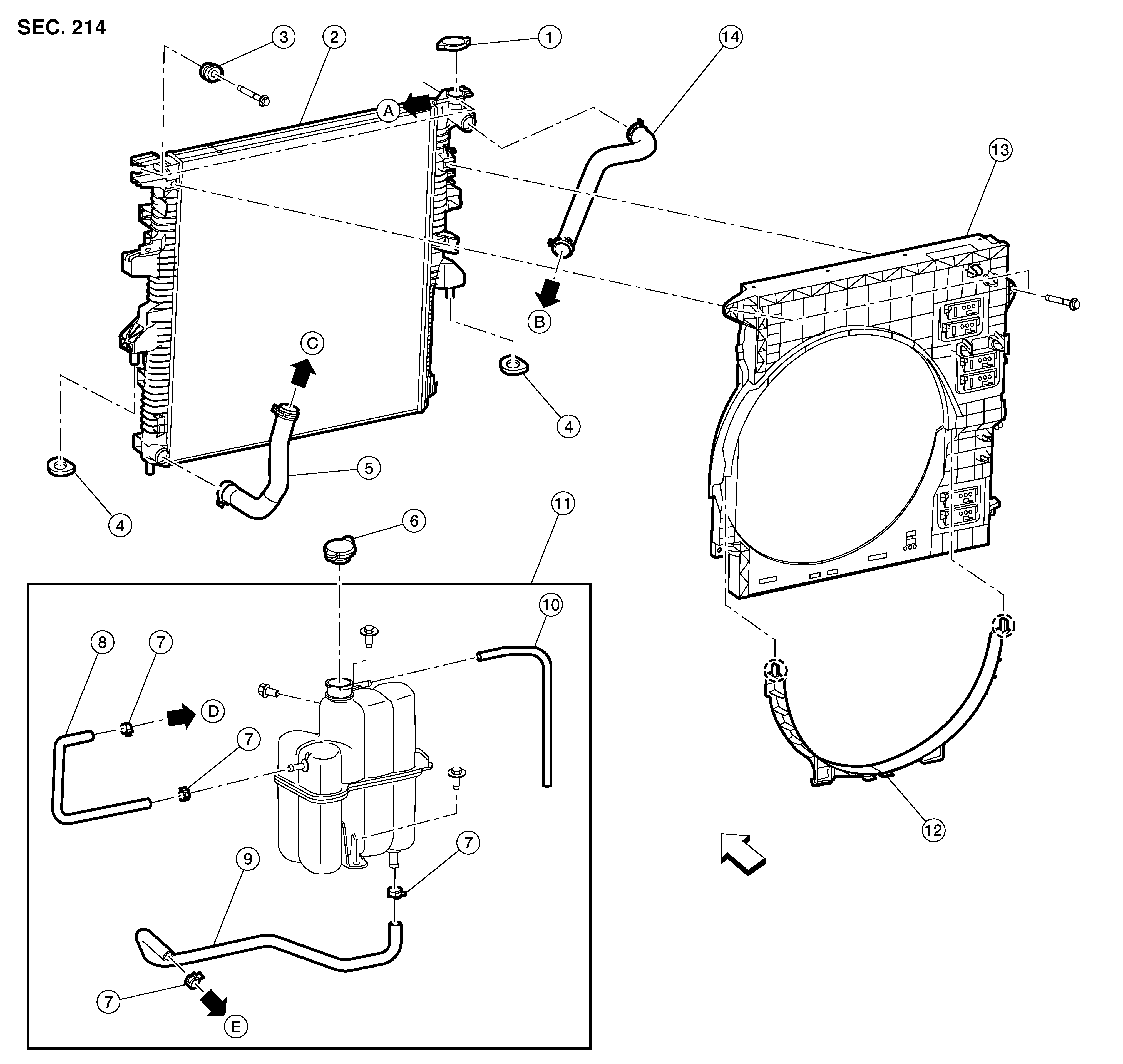

Fig 2: Non-XD Models

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Radiator cap	2.	Radiator	3.	Mounting rubber (upper)
4.	Mounting rubber (lower)	5.	Radiator hose (lower)	6.	Reservoir tank cap
7.	Clamp	8.	Radiator overflow hose	9.	Reservoir tank hose
10.	Radiator overflow hose	11.	Reservoir tank	12.	Fan shroud (lower)
13.	Fan shroud (upper)	14.	Radiator hose (upper)	A.	To radiator overflow hose
B.	To multi control valve. Refer to Exploded View .	C.	To water suction pipe. Refer to Exploded View .	D.	To radiator
E.	To multi control valve. Refer to Exploded View .		Pawl		Front
