Component Location

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

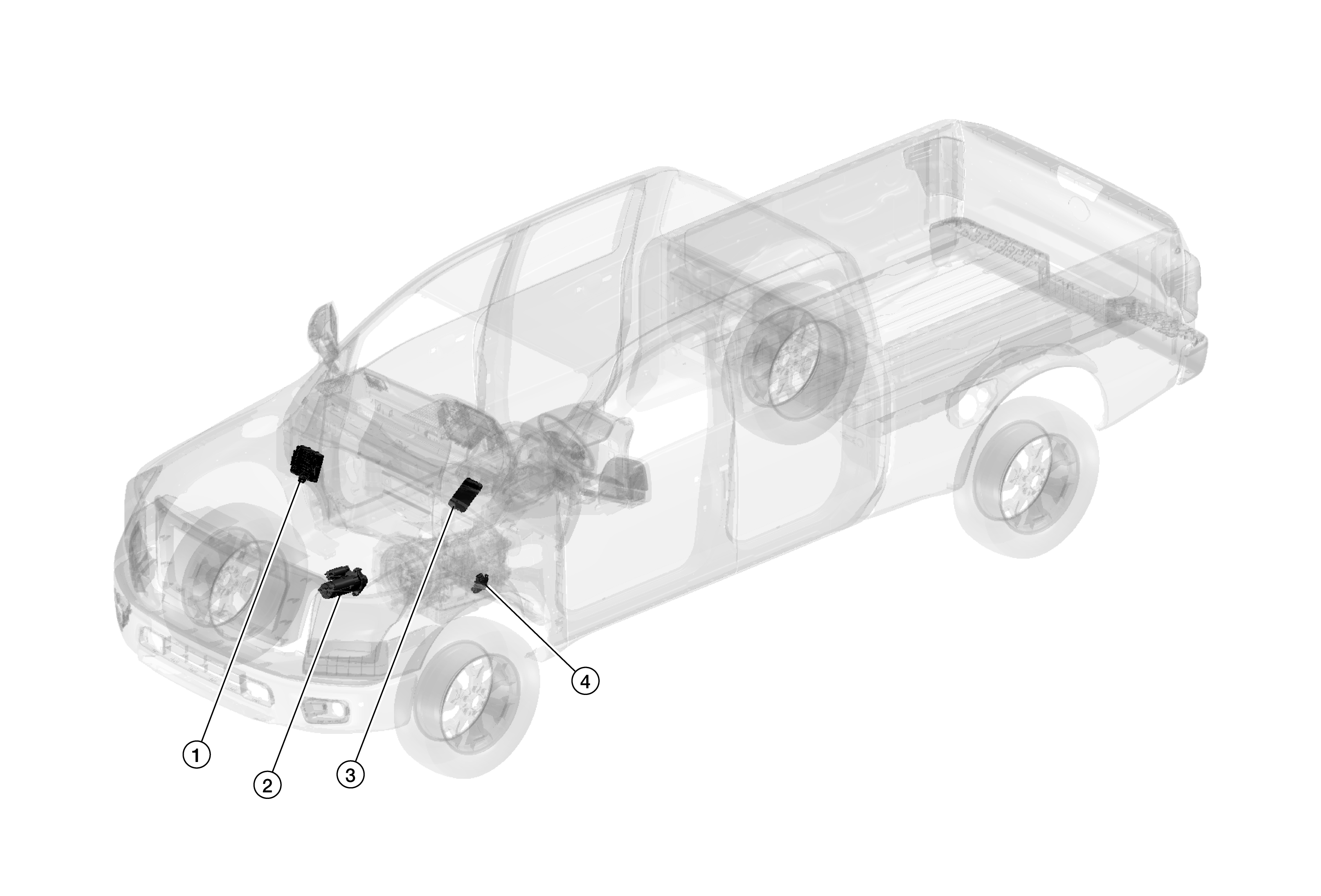

WITH CUMMINS 5.0L

Courtesy of NISSAN NORTH AMERICA, INC.

No.	Component	Description
1.	IPDM E/R	CPU inside IPDM E/R operates the starter relay when the ignition switch is in the start position. Refer to Component Location .
2.	Starter motor	The starter motor plunger closes and the motor is supplied with battery power, which in turn cranks the engine, when the S terminal is supplied with electric power.
3.	BCM	BCM controls the starter relay inside IPDM E/R. Refer to Component Location .
4.	Transmission range switch	Transmission range switch supplies power to the starter relay and starter control relay inside IPDM E/R when the A/T shift selector is shifted to the P or N position. Refer to Component Location

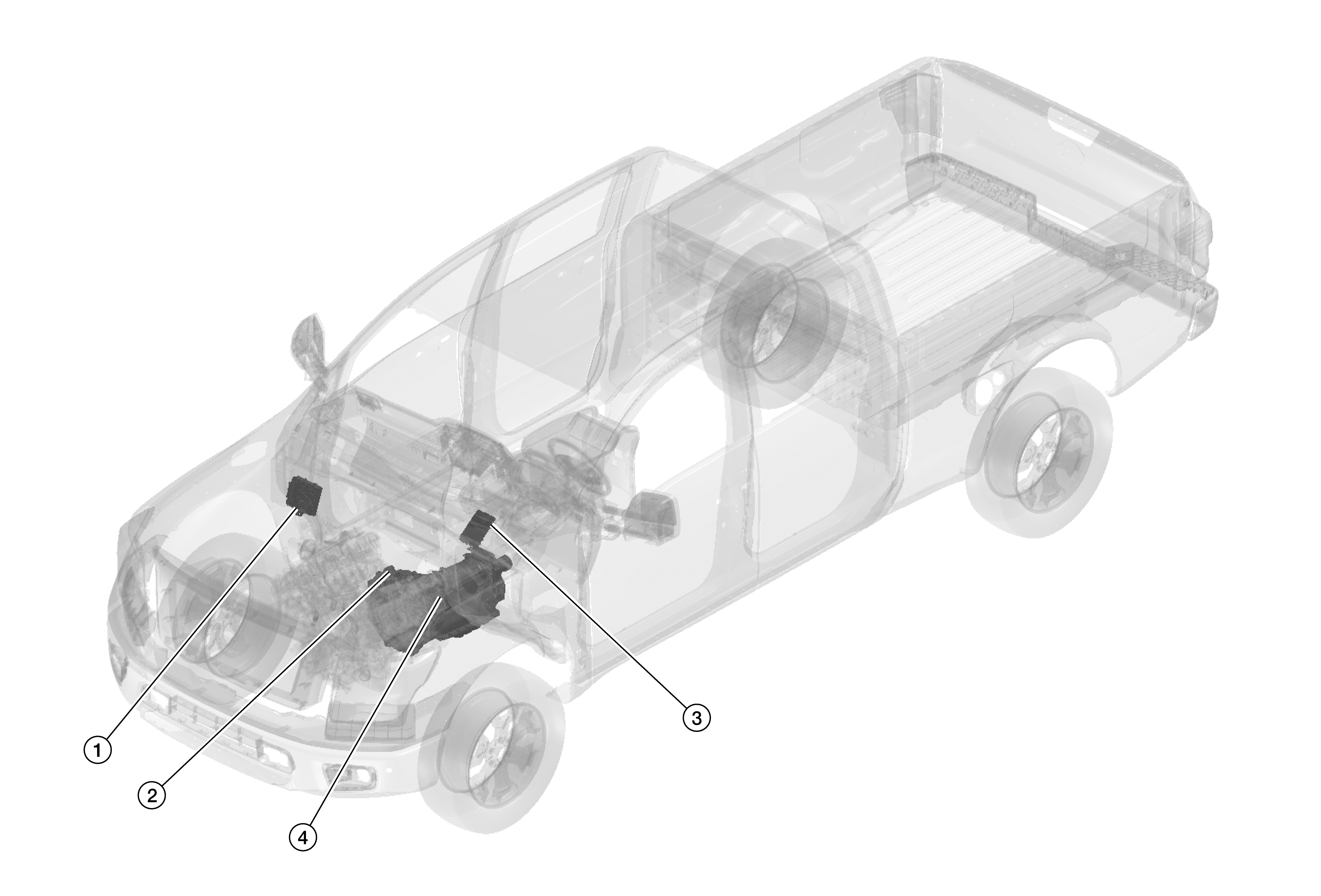

WITH VK56VD

Courtesy of NISSAN NORTH AMERICA, INC.

No.	Component	Description
1.	IPDM E/R	CPU inside IPDM E/R operates the starter relay when the ignition switch is in the start position. Refer to Component Location .
2.	Starter motor	The starter motor plunger closes and the motor is supplied with battery power, which in turn cranks the engine, when the S terminal is supplied with electric power.
3.	BCM	BCM controls the starter relay inside IPDM E/R. Refer to Component Location .
4.	A/T assembly	A/T assembly supplies power to the starter relay and starter control relay inside IPDM E/R when the A/T shift selector is shifted to the P or N position. Refer to Component Location .
