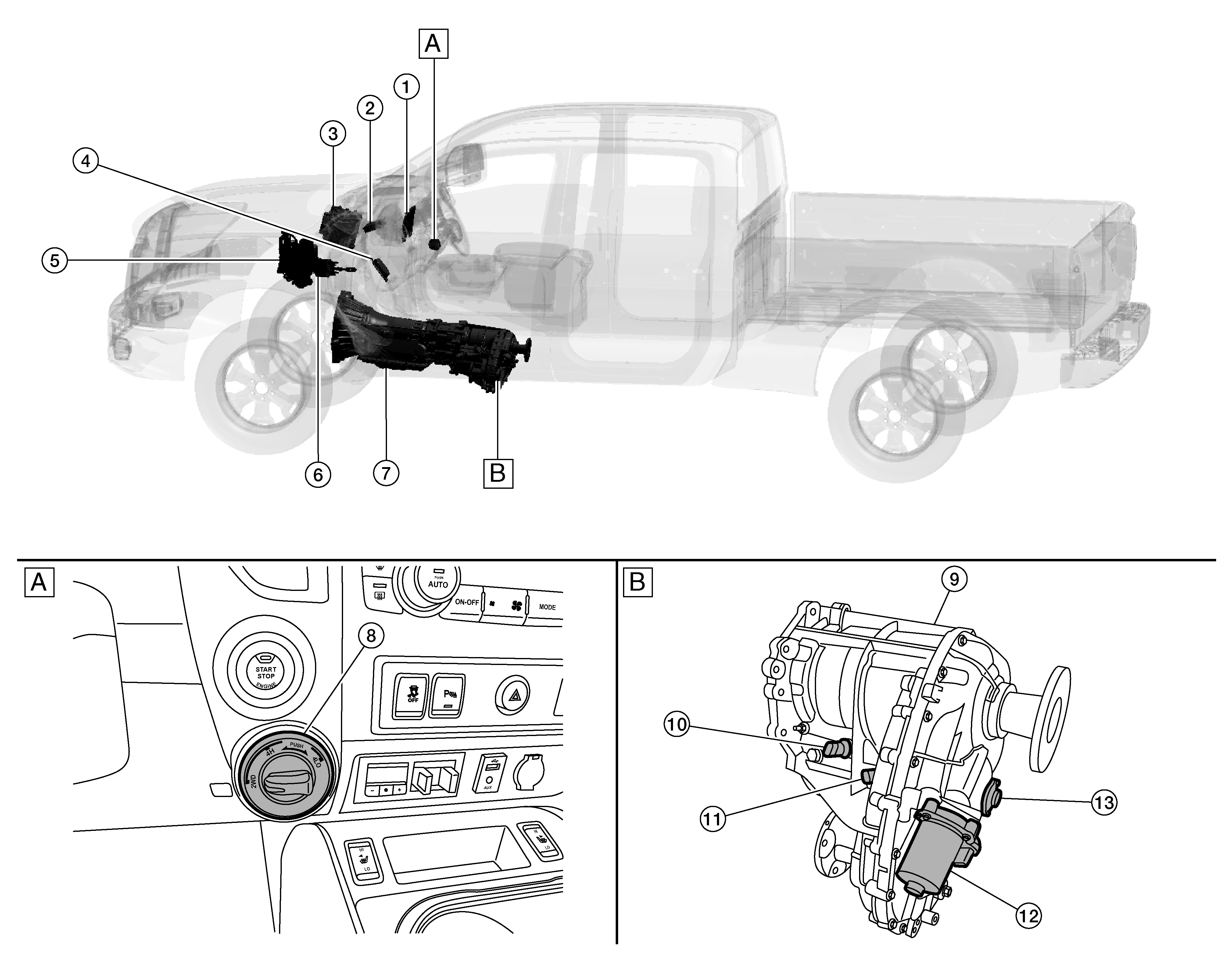

Component Parts Location

Center dash area

Transfer

No.

Component

Function

Combination meter

Mainly transmits the following signals to transfer control unit via CAN communication.

• Vehicle speed signal

Mainly receives the following signals from transfer control unit via CAN communication.

• 4WD warning lamp signal
• 4WD mode indicator lamp signal
• ATP warning lamp signal

For detailed installation location, refer to Component Parts Location (TYPE A), Component Parts Location (TYPE B).

BCM

Mainly transmits the following signals to transfer control unit via CAN communication.

• Sleep wake up signal
• Stop lamp switch signal

Mainly receives the following signals from transfer control unit via CAN communication.

• Sleep-ready signal

For detailed installation location, refer to Component Parts Location .

ECM

Mainly transmits the following signals to transfer control unit via CAN communication.

• Engine speed signal

For detailed installation location, refer to Component Parts Location (Cummins 5.0L) or Component Parts Location (VK56VD).

TCM

Mainly transmits the following signals to transfer control unit via CAN communication.

• Gear position signal
• Output shaft revolution signal

For detailed installation location, refer to Component Parts Location (RE6R01A) or Component Parts Location (RE7R01B).

ABS actuator and electric unit (control unit)

Mainly transmits the following signals to transfer control unit via CAN communication.

• Each wheel speed signal

For detailed installation location, refer to Component Parts Location .

Transfer control unit

Refer to Transfer Control Unit .

Transmission assembly

-

4WD shift switch

Refer to 4WD Shift Switch .

Transfer assembly

-

Range sensor

Refer to Range Sensor .

Mode sensor

Refer to Mode Sensor .

Transfer motor

Refer to Transfer Motor .

Transfer rotary position sensor

Refer to Transfer Rotary Position Sensor .
