Transfer Motor
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

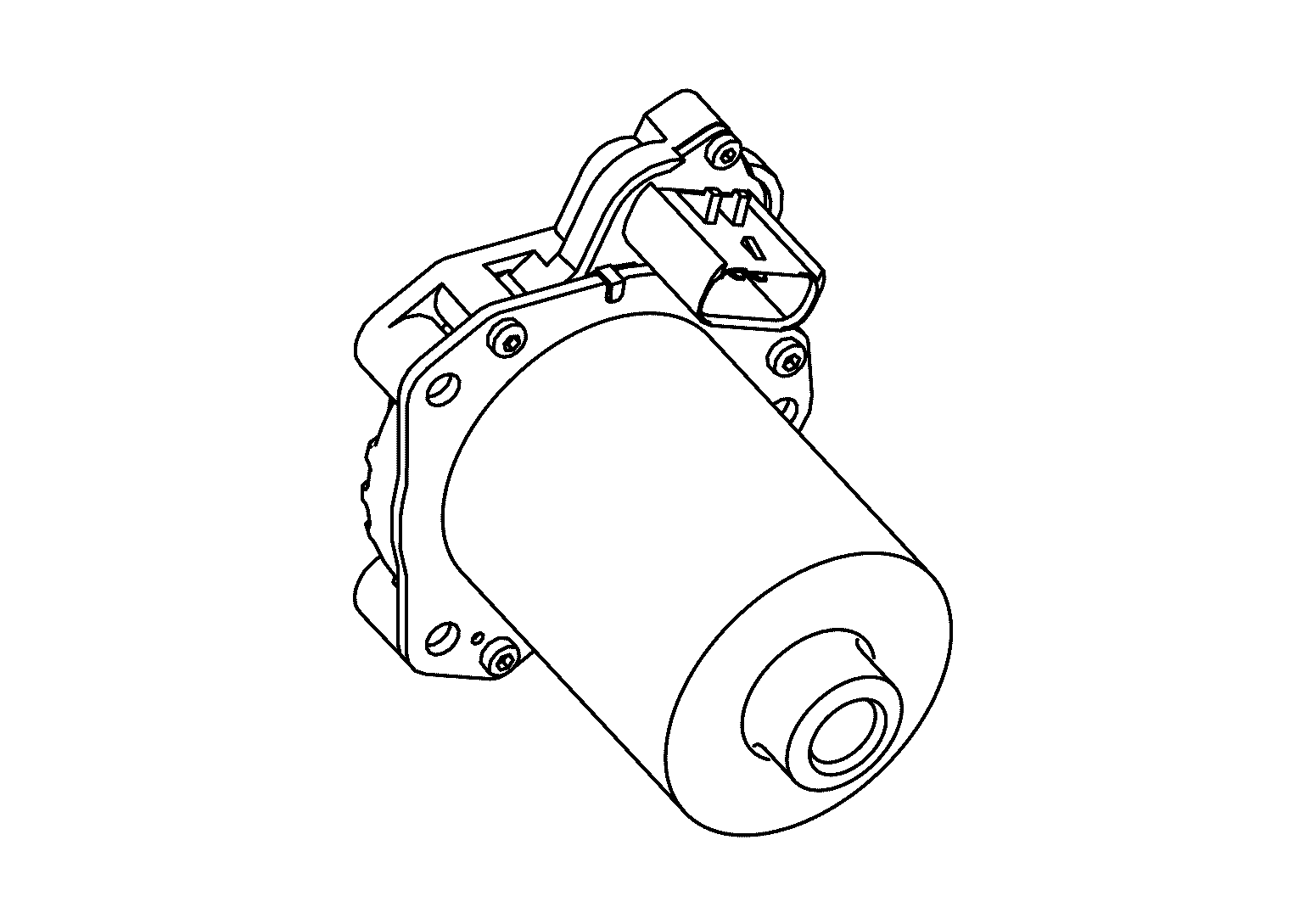

- Transfer motor is installed to left side of transfer assembly.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
- Transfer motor operates according to signal from transfer control unit and switches 4WD mode (2WD ↔ 4H ↔ 4LO).
