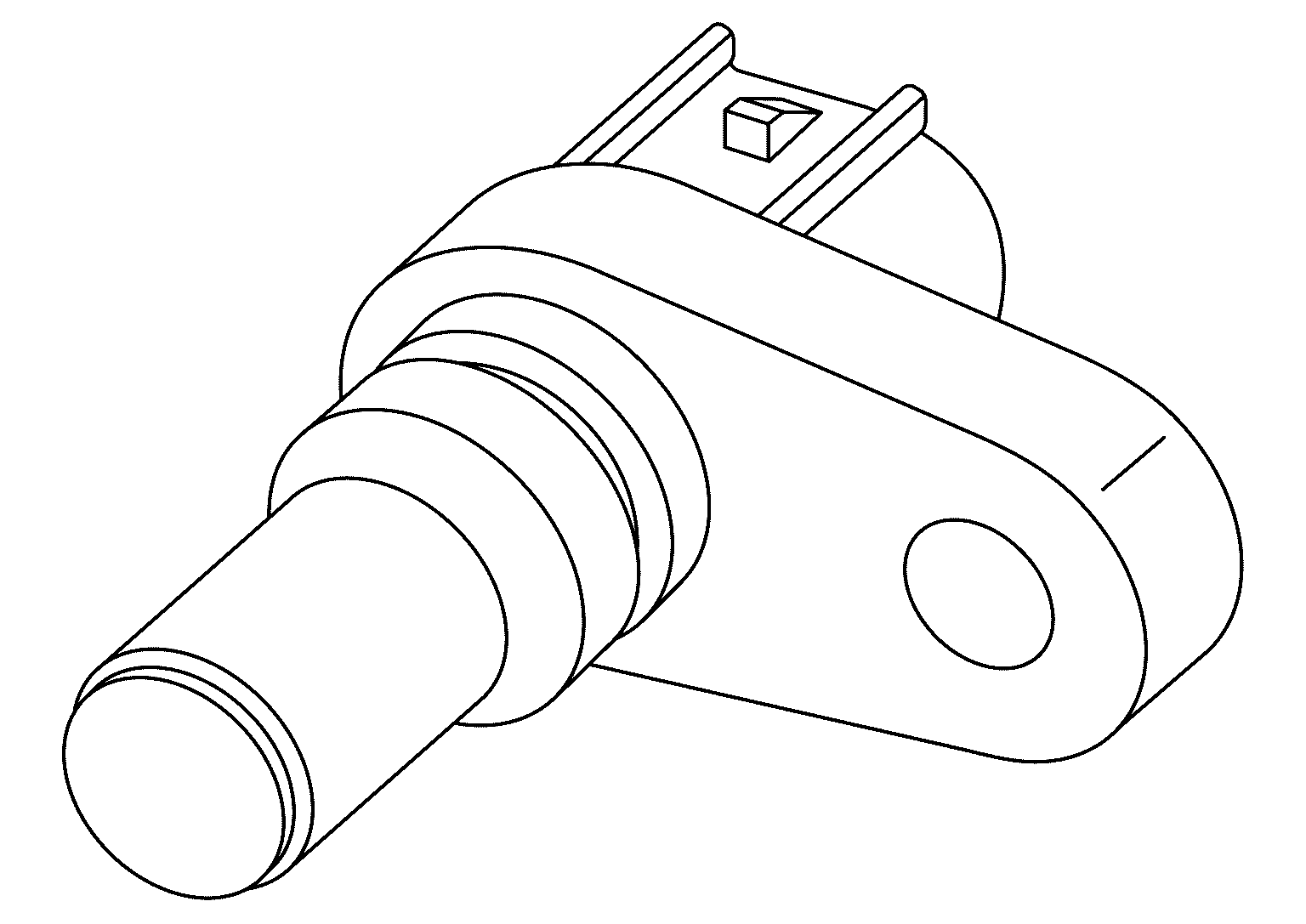

Output Speed Sensor
WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.
The output speed sensor detects the revolution of the parking gear and emits a pulse signal. The pulse signal is transmitted to the TCM which converts it into output shaft speed.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
