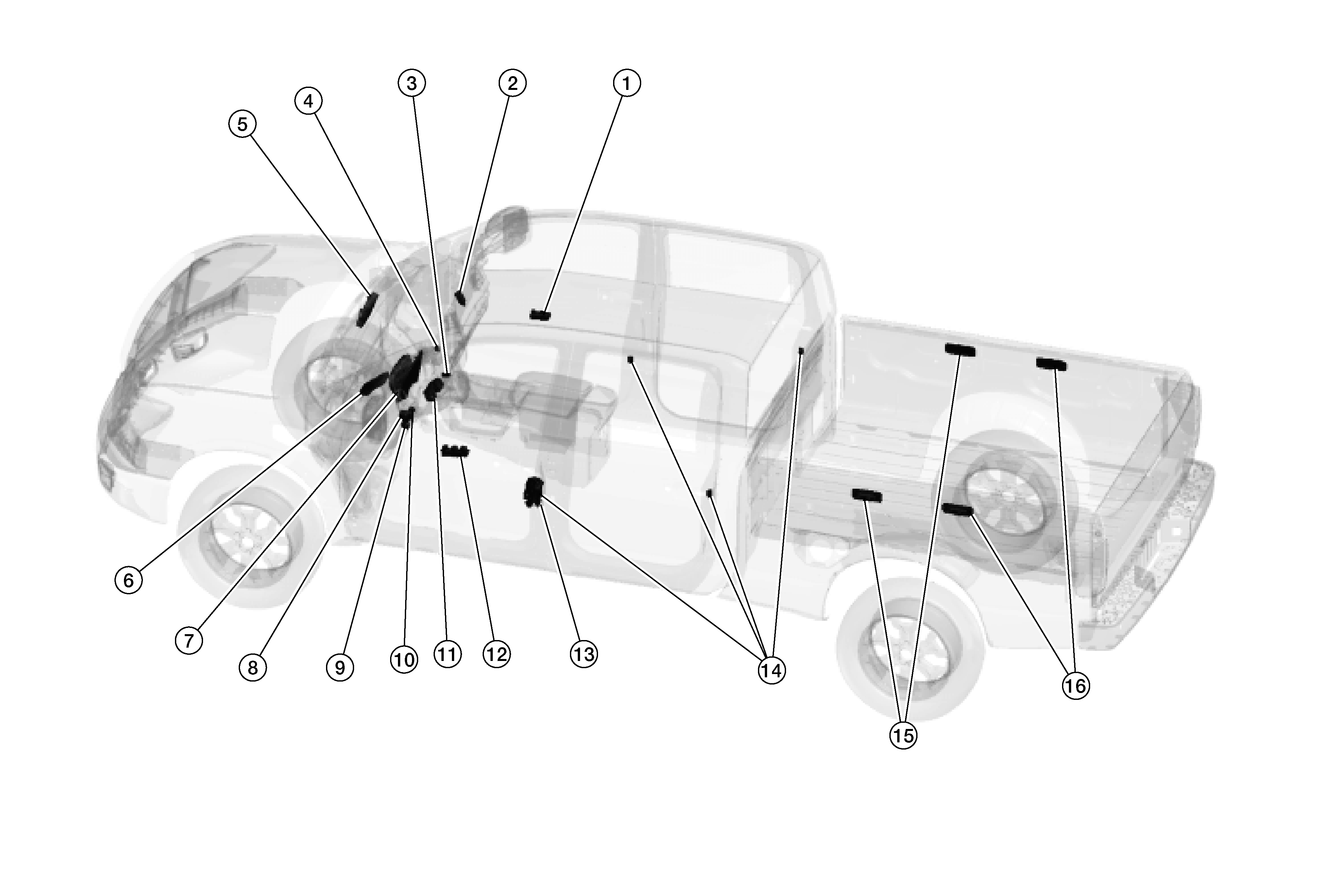

Component Location

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of NISSAN NORTH AMERICA, INC.

No.	Component	Function
1.	Power window and door lock/unlock switch RH	Provides door lock/unlock position switch RH status to the BCM. Refer to Component Location for detailed installation location.
2.	Remote keyless entry receiver	Refer to Component Location for detailed installation location.
3.	Push-button ignition switch (push-button ignition switch illumination)	Provides ignition switch status to the BCM. Refer to Component Location for detailed installation location.
4.	Cargo lamp relay	Refer to System Description .
5.	IPDM E/R	Controls the integrated tail lamp relay according to the request signal from BCM (via CAN communication). Refer to Component Location for detailed installation location.
6.	BCM	Activates the interior room lamp timer depending on the vehicle condition to turn the interior room lamps ON/OFF. Operates the interior room lamp battery saver depending on the vehicle condition to turn interior room lamps OFF. Detects each switch condition by the combination switch reading function. Judges the illumination lamp ON/OFF status depending on the vehicle condition. And then transmits request signal to IPDM E/R and combination meter (via CAN communication). Refer to Component Location for detailed installation location.
7.	Combination meter	Controls the meter illumination according to the request signal from BCM (via CAN communication). Refer to Combination Meter (type A) or Component Location (type B) for detailed installation location.
8.	Lighting switch	The lighting switch provides input to the BCM about the lighting switch position.
9.	Cargo lamp switch	Refer to Exploded View for detailed installation location.
10.	Meter control switch	Adjusts the illumination system and combination meter illumination brightness. Refer to Meter Control Switch .
11.	Combination switch (high beam and turn signal switch)	Refer to Component Location for detailed installation location.
12.	Main power window and door lock/unlock switch	Provides door lock/unlock position switch LH status to the BCM. Refer to Component Location for detailed installation location.
13.	Front door lock assembly LH (door unlock sensor)	Provides door lock/unlock position switch LH status to the BCM. Refer to Component Location for detailed installation location.
14.	Door switches	Provides door OPEN/CLOSED status to the BCM. Refer to Component Location for detailed installation location.
15.	Front bed lamps	Refer to System Description .
16.	Rear bed lamps	Refer to System Description .
