Component Parts Location

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of NISSAN NORTH AMERICA, INC.

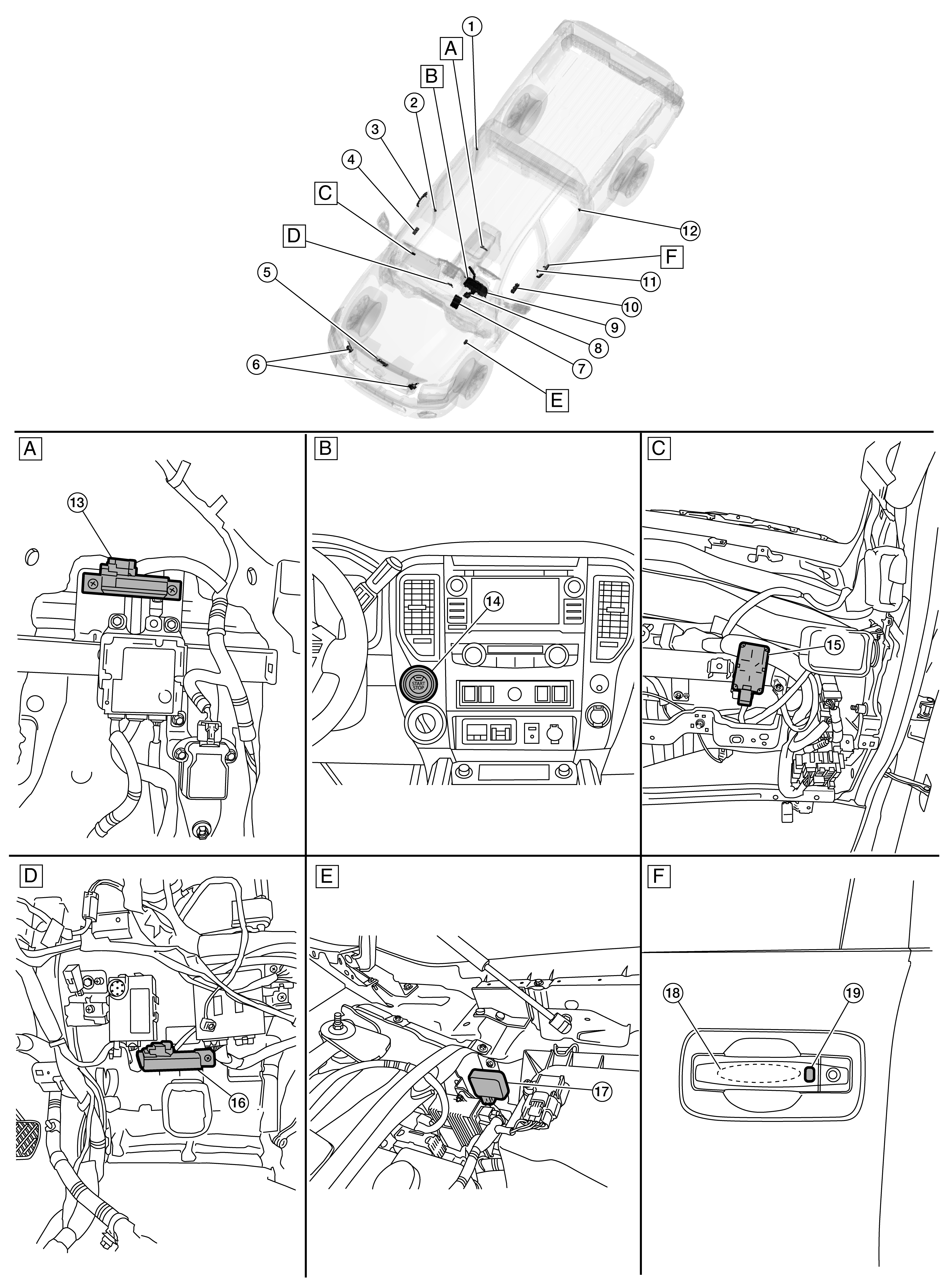

A.	Center console area (view with center console removed)	B.	Center of the instrument panel	C.	Instrument lower panel RH (with instrument panel assembly removed)
D.	Center of instrument panel (view with instrument panel assembly removed)	E.	Engine room left side	F.	Left front outside door handle

No.	Component	Function
1.	Rear door switch RH	Door switch detects door open/close condition and then transmits ON/OFF signal to BCM.
2.	Front door switch RH	Door switch detects door open/close condition and then transmits ON/OFF signal to BCM.
3.	Front outside handle assembly RH (door request switch RH) and (outside key antenna RH) (if equipped)	Door request switch transmits door lock/unlock request signal to the BCM. Outside key antenna (RH) detects whether Intelligent Key is outside the vehicle or not, and then transmits the signal to the BCM.
4.	Power window and door lock/unlock switch RH	Door lock and unlock switch is integrated into the power window and door lock/unlock switch RH. Door lock and unlock switch transmits door lock/unlock operation signal to BCM.
5.	Hood switch (if equipped)	Hood switch detects hood open/close condition and then transmits ON/OFF signal to IPDM E/R.
6.	Horns	IPDM E/R energizes the horns when the security system is activated after door lock.
7.	BCM	BCM controls INTELLIGENT KEY SYSTEM (ENGINE START FUNCTION), NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS [NVIS (NATS)] and VEHICLE SECURITY SYSTEM. BCM performs the ID verification between BCM and Intelligent Key when the Intelligent Key is carried into the detection area of inside key antenna and push-button ignition switch is pressed. If the ID verification result is OK, ignition switch operation is available. Then, when the ignition switch is turned ON, BCM performs ID verification between BCM and ECM. If the ID verification result is OK, ECM can start engine. Refer to Component Parts Location for detailed installation location.
8.	A/T shift selector	A/T shift selector detects the shift lever status, transmits park position switch signal to the BCM.
9.	Combination meter	Combination meter transmits the vehicle speed signal to BCM via CAN communication. BCM also receives the vehicle speed signal from ABS actuator and electric unit (control unit) via CAN communication. BCM compares both signals to detect the vehicle speed. Security indicator lamp is located on combination meter. Security indicator lamp blinks when ignition switch is in any position other than ON to warn that NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS [NVIS (NATS)] is on board. Refer to Component Parts Location for detailed installation location.
10.	Main power window and door lock/unlock switch	Door lock and unlock switch is integrated into the power window main switch. Door lock and unlock switch transmits door lock/unlock operation signal to BCM. Refer to Main Power Window and Door Lock/Unlock Switch- With Crew Cab .
11.	Front door switch LH	Door switch detects door open/close condition and then transmits ON/OFF signal to BCM.
12.	Rear door switch LH	Door switch detects door open/close condition and then transmits ON/OFF signal to BCM.
13.	Inside key antenna (console)	Inside key antenna (console) detects whether Intelligent Key is inside the vehicle or not and then transmits the signal to the BCM. Refer to Inside Key Antenna (Console) .
14.	Push-button ignition switch	Push-button ignition switch has a push switch inside which detects that push-button ignition switch is pressed and then transmits ON/OFF signal to BCM. BCM changes the ignition switch position with the operation of push-button ignition switch. BCM maintains the ignition switch position status while push-button ignition switch is not operated.
15.	Remote keyless entry receiver	Remote keyless entry receiver receives button operation signal and key ID signal of Intelligent Key and then transmits them to BCM. Refer to Remote Keyless Entry Receiver .
16.	Inside key antenna (instrument center)	Inside key antenna (instrument center) detects whether Intelligent Key is inside the vehicle or not and then transmits the signal to the BCM. Refer to Inside Key Antenna (Instrument Center) .
17.	Intelligent Key warning buzzer	Intelligent Key warning buzzer warns the user, who is outside the vehicle, of operation confirmation according to Intelligent Key operation and door request switch operation or of an inappropriate operation.
18.	Outside key antenna LH (if equipped)	Outside key antenna (LH) detects whether Intelligent Key is outside the vehicle or not and then transmits the signal to the BCM. Refer to Outside Key Antenna (LH) .
19.	Door request switch LH (if equipped)	Door request switch transmits door lock/unlock request signal to the BCM.
