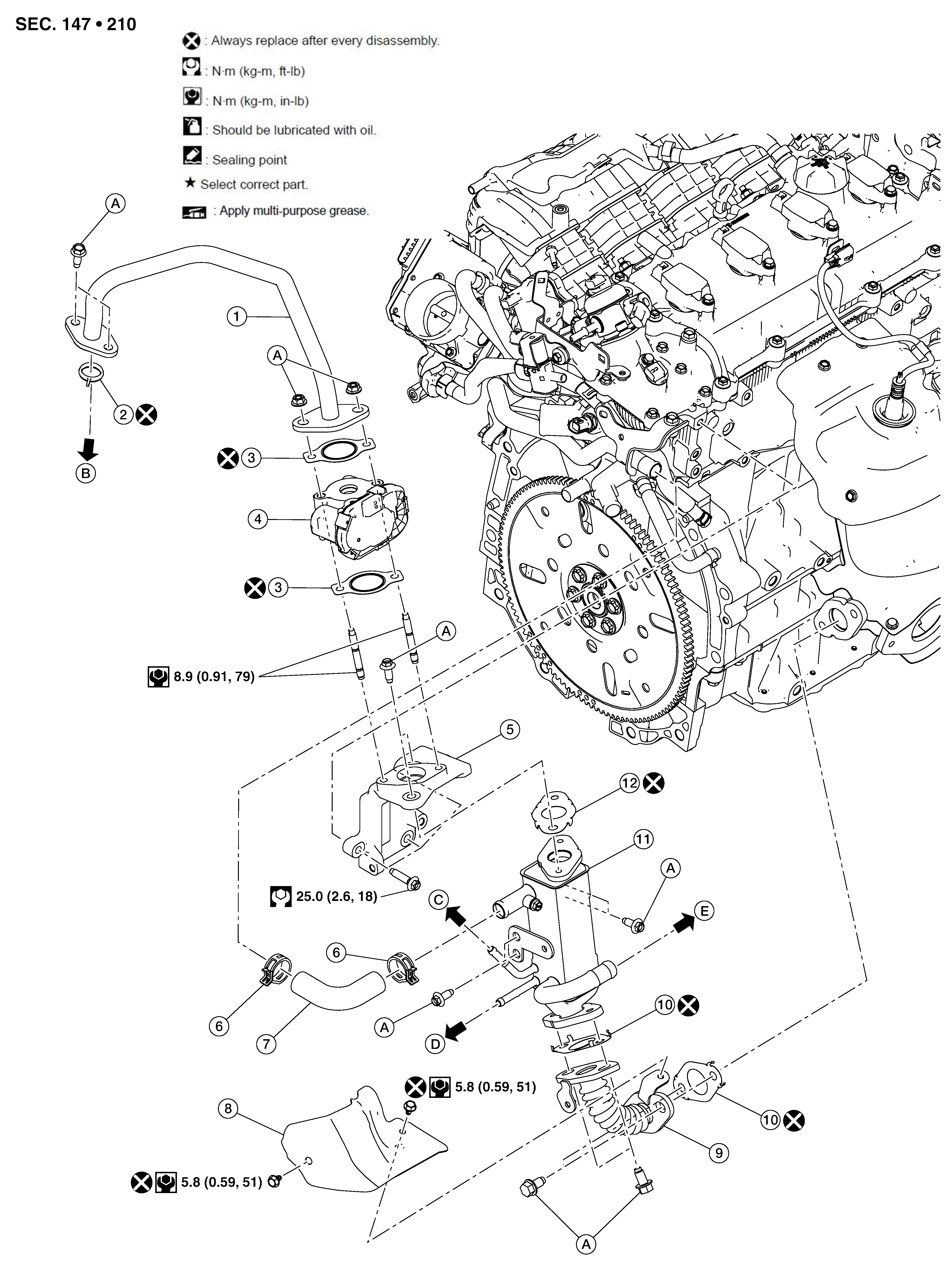

EGR SYSTEM : Exploded View
WARNING: This page is about a different variant/trim than selected.
|
1. |
EGR outlet tube |
2. |
EGR outlet tube gasket |
3. |
EGR volume control valve gasket |
|
4. |
EGR volume control valve |
5. |
EGR cooler bracket |
6. |
Clamp |
|
7. |
Water hose |
8. |
EGR inlet tube heat shield |
9. |
EGR inlet tube |
|
10. |
EGR inlet tube gasket |
11. |
EGR cooler |
12. |
EGR cooler gasket |
|
A. |
Refer to EGR VALVE : Removal & Installation . |
B. |
To intake manifold. Refer to Exploded View . |
C. |
Refer to Removal and Installation (FWD) or Removal and Installation (AWD). |
|
D. |
To water hose B. Refer to WATER OUTLET : Exploded View . |
E. |
To water hose C. Refer to WATER OUTLET : Exploded View . |
F. |
To water hose D. Refer to WATER OUTLET : Exploded View . |
