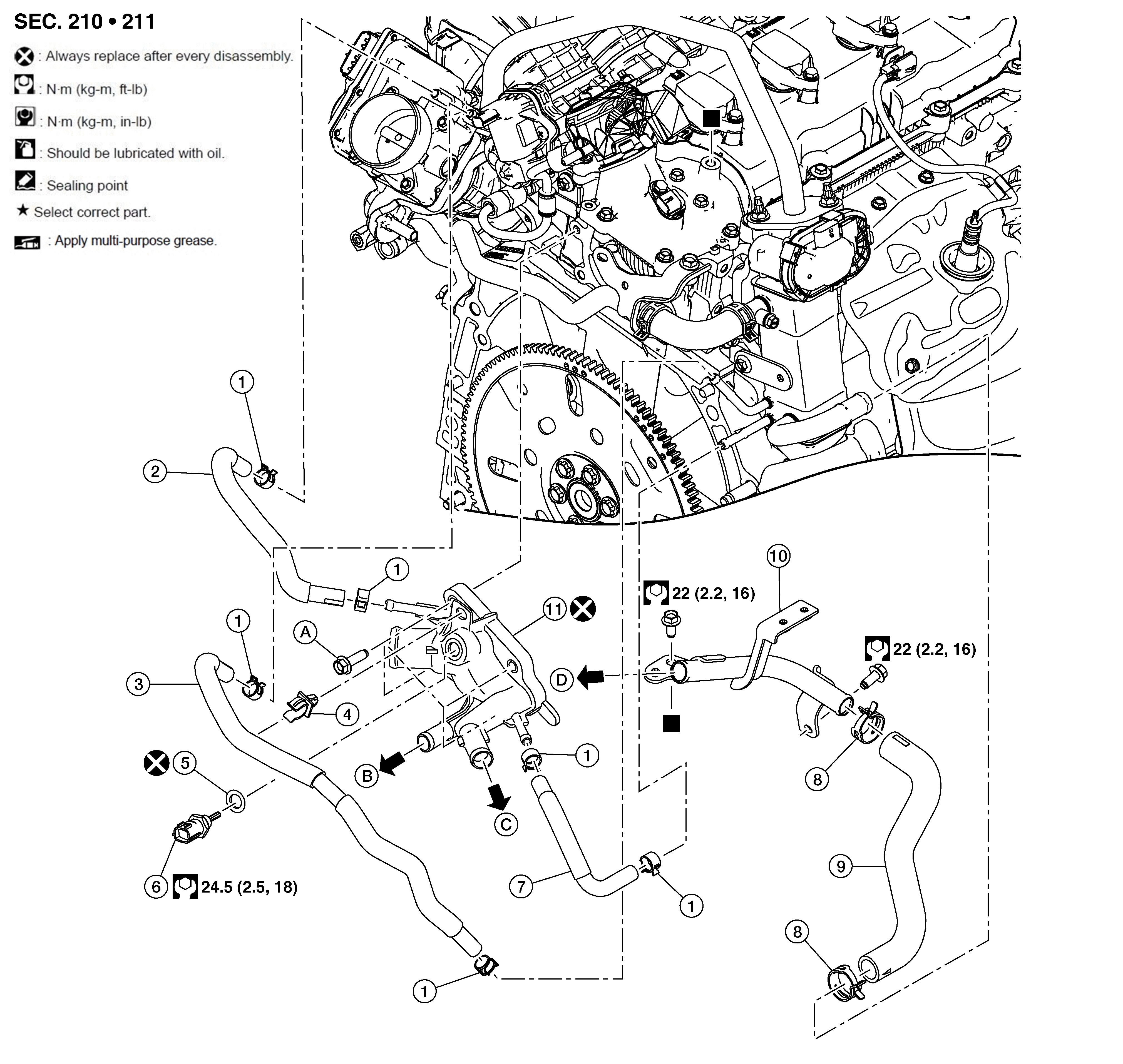

WATER OUTLET : Exploded View
WARNING: This page is about a different variant/trim than selected.
|
1. |
Clamp |
2. |
Water hose A |
3. |
Water hose B |
|
4. |
Clip |
5. |
Copper sealing washer |
6. |
Engine coolant temperature sensor |
|
7. |
Water hose C |
8. |
Clamp |
9. |
Water hose D |
|
10. |
Water pipe |
11. |
Water outlet |
A. |
Refer to WATER OUTLET : Removal & Installation . |
|
B. |
To thermo valve. Refer to Exploded View . |
C. |
To heater core. Refer to Exploded View . |
D. |
To heater core. Refer to Exploded View . |
: Indicates that the part is connected at points with same symbol in actual vehicle.
