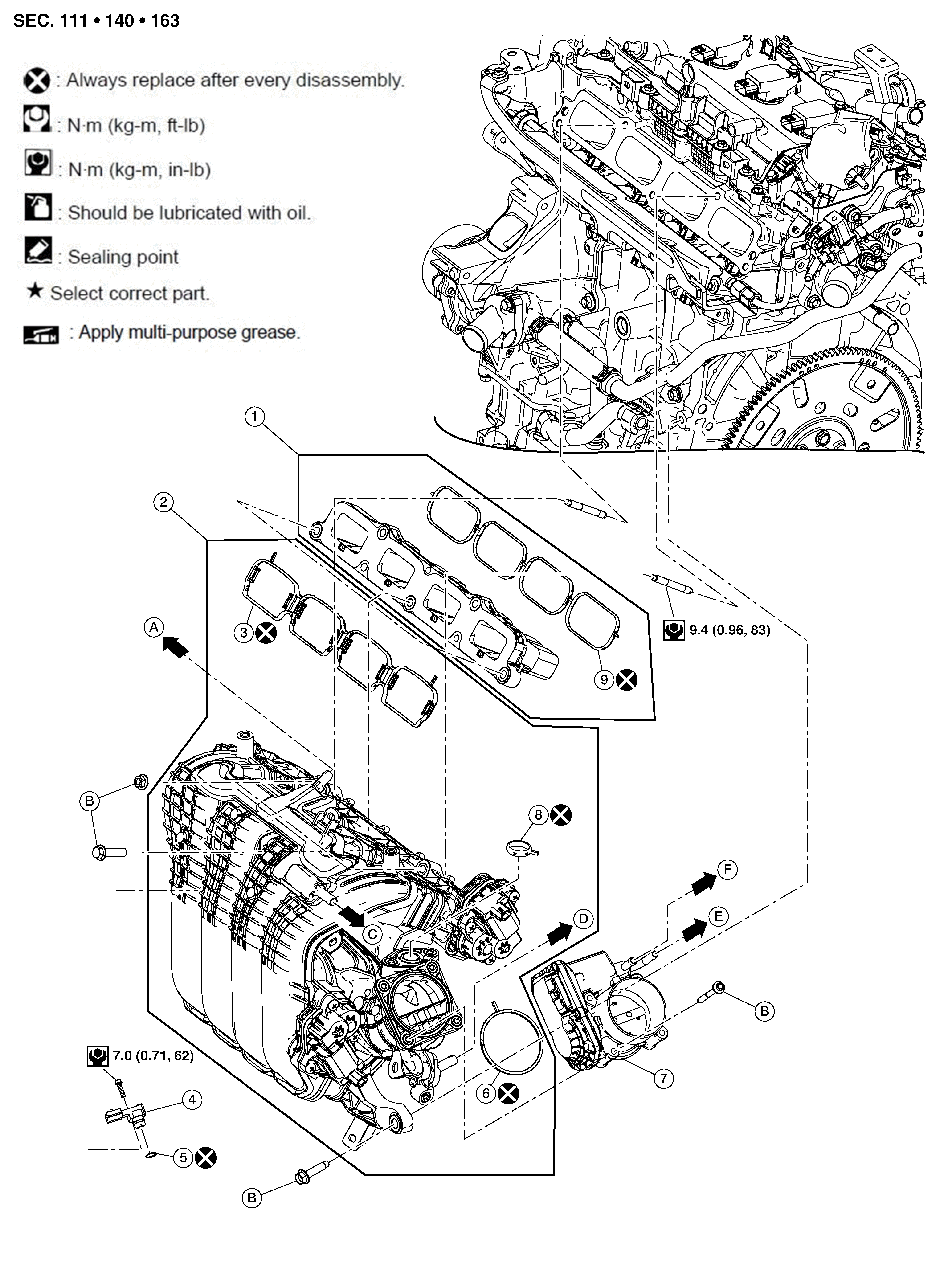

INTAKE MANIFOLD : Exploded View
WARNING: This page is about a different variant/trim than selected.
|
1. |
Intake port insulator |
2. |
Intake manifold |
3. |
Intake manifold gasket |
|
4. |
Manifold absolute pressure (MAP) sensor |
5. |
O-ring |
6. |
Electric throttle control actuator gasket |
|
7. |
Electric throttle control actuator |
8. |
EGR outlet tube gasket |
9. |
Intake port insulator gasket |
|
A. |
To PCV hose. Refer to Exploded View . |
B. |
Refer to Removal and Installation . |
C. |
To vacuum hose. Refer to Exploded View . |
|
D. |
To EVAP hose A. Refer to Exploded View . |
E. |
To water hose B. Refer to WATER OUTLET : Exploded View . |
F. |
To water hose A. Refer to WATER OUTLET : Exploded View . |
