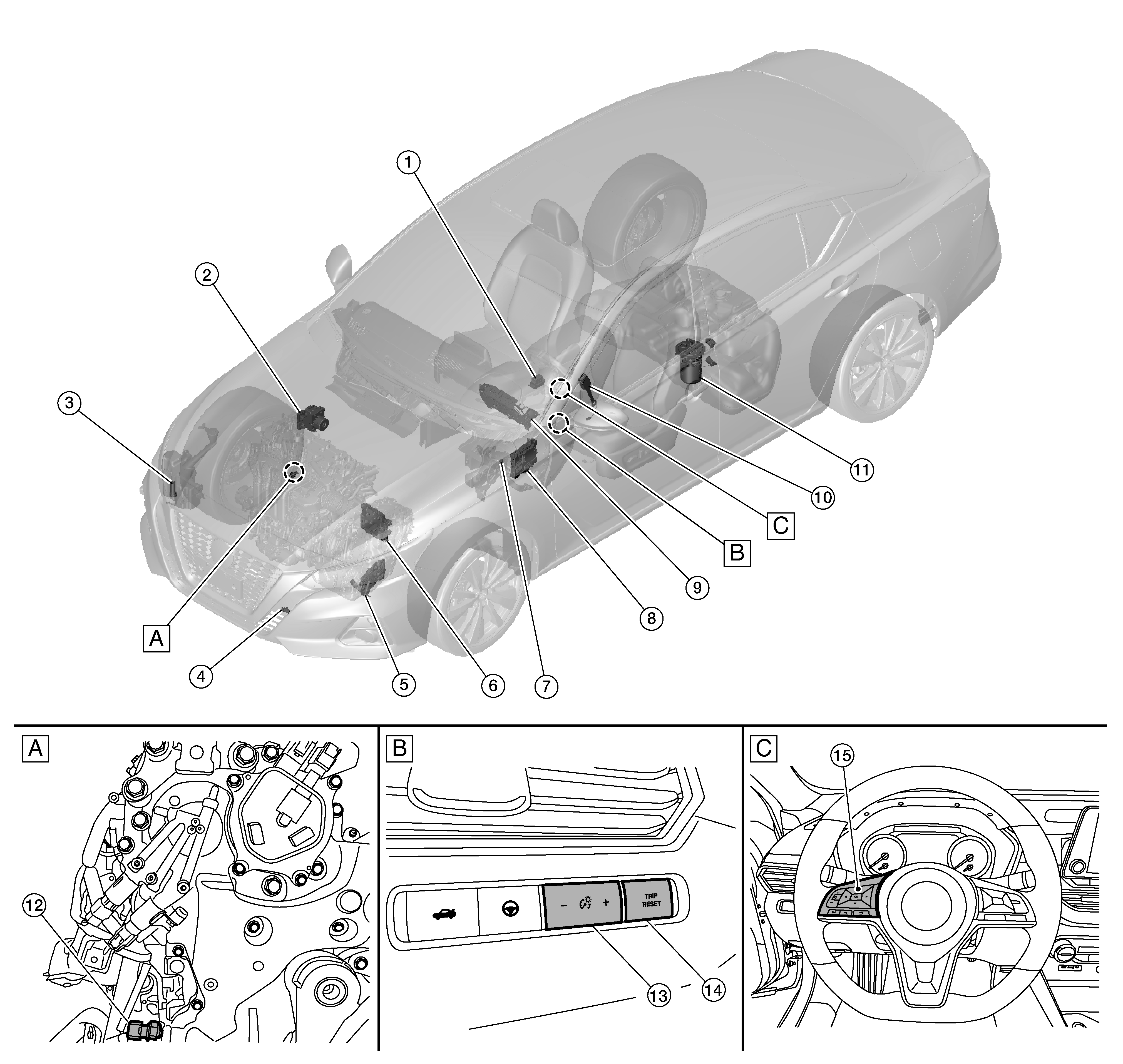

Component Location

A.

View of engine (shown with engine removed)

B.

Left side of instrument panel cover

C.

Steering wheel

No.

Component

Function

1.

Electric parking brake switch*

Provides input for electric parking brake application.

2.

ABS actuator and electric unit (control unit)

• Transmits each signal to the combination meter via CAN communication.

  Refer to System Description .

• Refer to Component Location for detailed component location.

3.

Washer fluid level switch*

• Transmits the washer fluid level switch signal to the combination meter.
• Refer to Component Location for detailed component location.

4.

Ambient sensor

Transmits the ambient sensor signal to the combination meter.

5.

TCM

• Transmits each signal to the combination meter via CAN communication.

  Refer to System Description .

• Refer to Component Location for detailed component location.

6.

ECM

• Transmits each signal to the combination meter via CAN communication.

  Refer to System Description .

• Refer to Component Location for detailed component location.

7.

Parking brake switch*

Provides input for parking brake application.

8.

BCM

• Transmits each signal to the combination meter via CAN communication.

  Refer to System Description .

• Refer to Component Location for detailed component location.

9.

Combination meter

Refer to Component Description .

10.

Seat belt buckle switch LH

Transmits the seat belt buckle switch LH signal to the combination meter.

11.

Fuel level sensor unit and fuel pump (fuel level sensor)

Transmits the fuel level sensor signal to the combination meter.

12.

Engine oil pressure sensor

Transmits the engine oil pressure sensor signal to the ECM.

13.

Meter control switch (Illumination control switch)

Refer to Component Description .

14.

Trip reset switch

Refer to Component Description .

15.

Steering switches

Refer to Component Description .
