System Description

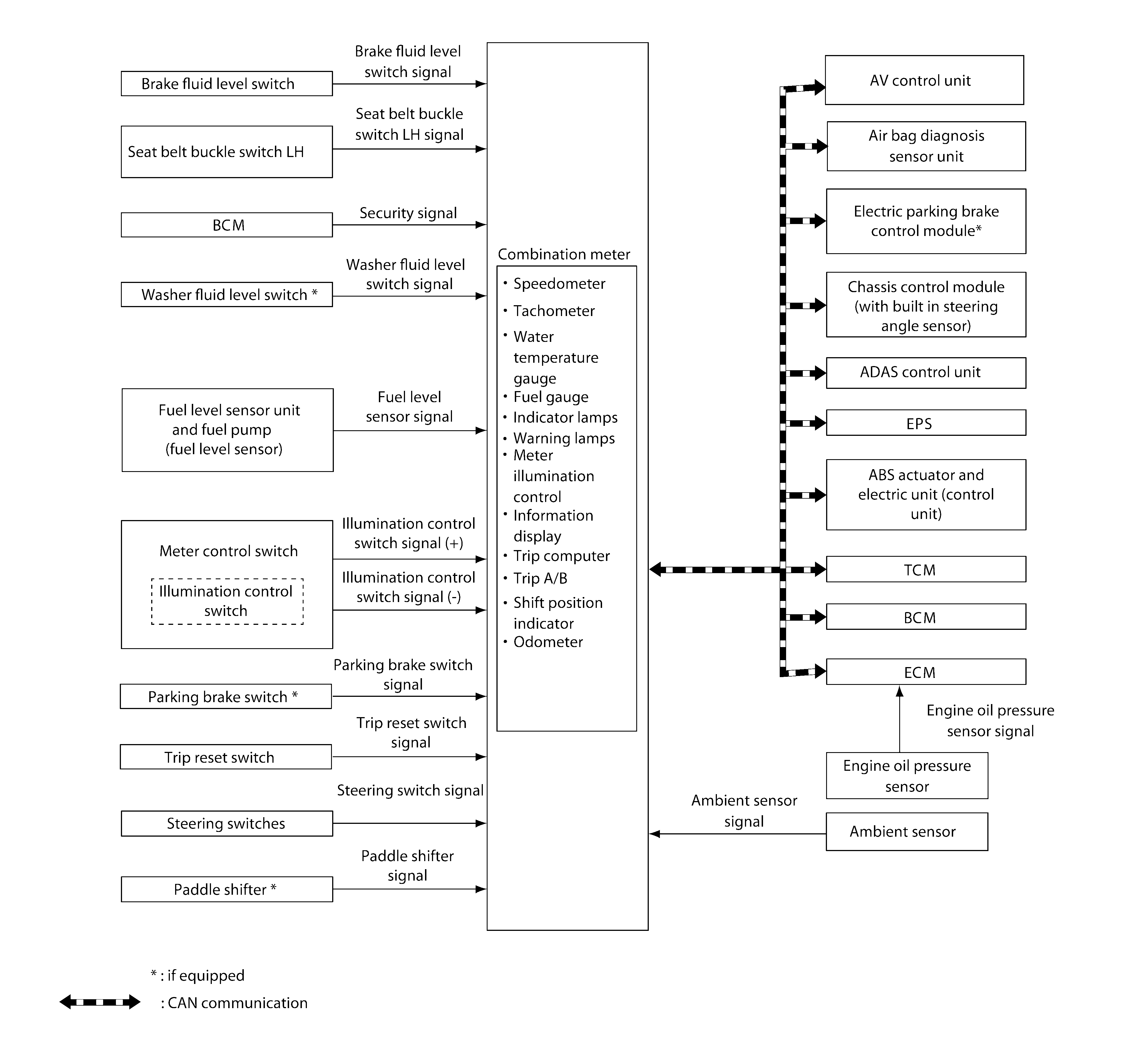

SYSTEM DIAGRAM
DESCRIPTION
Combination Meter
- The combination meter controls the following items according to the signals received from each unit via CAN communication and the signals from switches and sensors:
- Measuring instruments
- Speedometer
- Tachometer
- Engine coolant temperature gauge
- Fuel gauge
- Warning lamps
- Indicator lamps
- Meter illumination control
- Meter effect function
- Information display
- Measuring instruments
- The combination meter incorporates a buzzer function that sounds an audible alarm with the integrated buzzer. Refer to System Description for further details.
- The combination meter includes an on board diagnosis function.
- The combination meter can be diagnosed with CONSULT.
METER CONTROL FUNCTION LIST
|
System |
Description |
Reference |
|||
|
Measuring instruments |
Speedometer |
Indicates vehicle speed. |
|||
|
Tachometer |
Indicates engine speed. |
||||
|
Engine coolant temperature gauge |
Indicates engine coolant temperature. |
||||
|
Fuel gauge |
Indicates fuel level. |
||||
|
Information display |
The information display displays status, according to system malfunction or vehicle condition. |
||||
|
Meter illumination control |
Meter illumination control function |
Switches back and forth between daytime mode and nighttime mode, according to a light switch position. |
|||
|
Back light illumination control function |
The operation of the illumination control switch allows the brightness adjustment of meter illumination. |
||||
|
Meter effect function |
Engine-start effect function |
Controls pointers of combination meter, back light illumination and information display at engine start to produce illumination effects. |
|||
|
Driver welcome function |
Controls meter illumination to produce illumination effects when getting in the vehicle. |
||||
